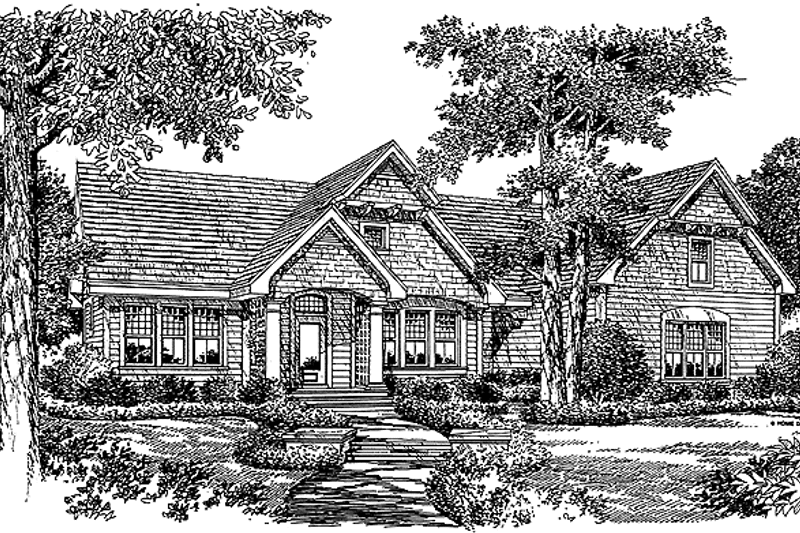

PLAN 417-672

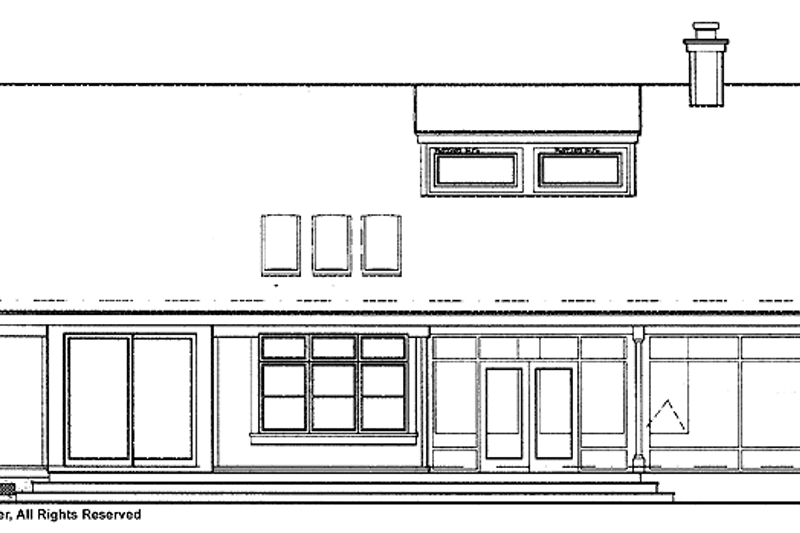

Craftsman Exterior - Rear Elevation Plan #417-672

Select Plan Set Options

What's included?

	Right-Reading Reverse $405.00 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $40.50/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $90.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $35.10 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $90.00 Receive an overlay sheet with suggested placement of lighting fixtures.
	Material List $76.50 A list of building supplies needed to construct the infrastructure of your new house.
	Mirror Reversed Sets $67.50 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

NOW $693.00

You save $77.00

(10% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-800-447-0027

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-447-0027

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Send me your Newsletter, too!

We do our best to get back within 24 - 48 business hours.

Need an answer fast? Call us now.

Phone 1-800-447-0027

Hours Mon-Fri, 9 am - 8:30 pm (EST)

See Terms & Conditions and Privacy Policy.

BUILDER Advantage Program

Pro Builders:

Join the club and save 10% on your first home plan order, plus exclusive discounts and more.

Join for FREE

Learn More

PLAN 417-672

Key Specs

1997
sq ft

2
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

The hub of this charming plan is the spacious kitchen with an island and serving bar. The nearby breakfast nook accesses the greenhouse with its wall of windows and three large skylights. A built-in media center beside a warming fireplace is the focal point of the family room. Bedroom 2 shares a full bath with the den/study, which might also be a third bedroom. The master suite features large His and Hers vanity sinks, a corner tub with an open walk-in shower, and a supersized walk-in closet. Future space over the garage can expand the living space as your family grows.

Floor Plans

Floor Plan - Main Floor Plan

Reverse

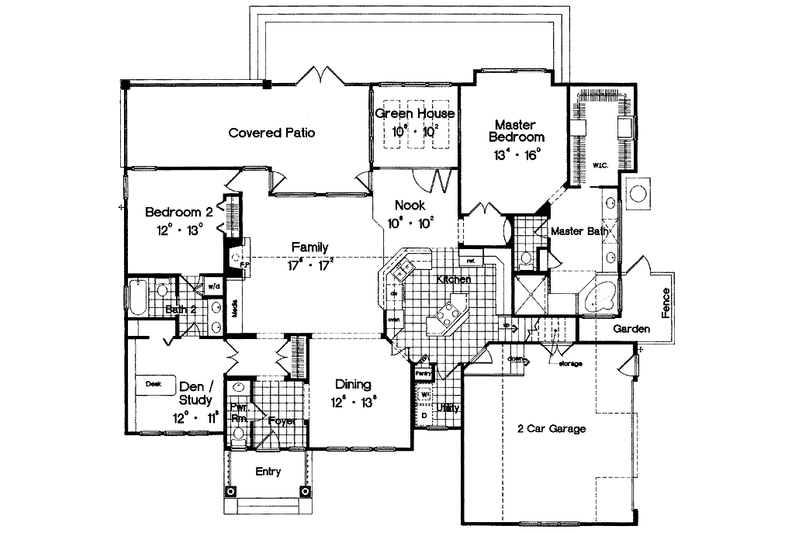

Craftsman Floor Plan - Main Floor Plan Plan #417-672

Floor Plan - Upper Floor Plan

Reverse

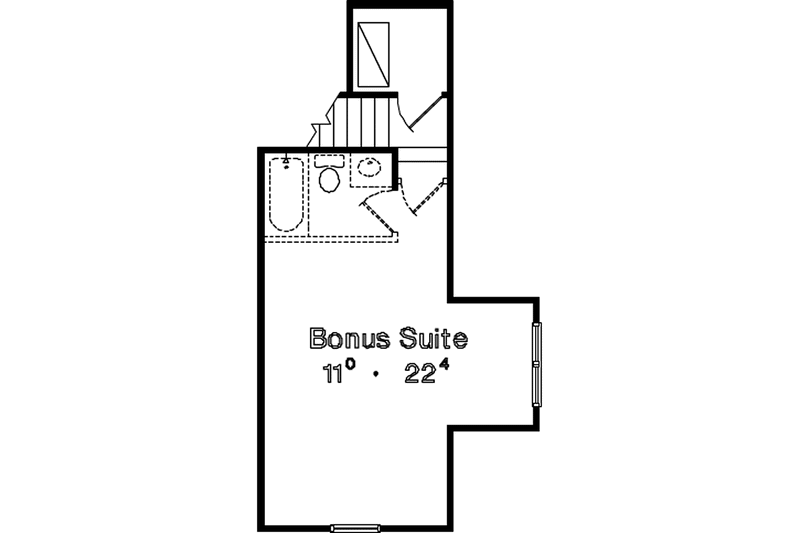

Craftsman Floor Plan - Upper Floor Plan Plan #417-672

Floor Plan - Other Floor Plan

Reverse

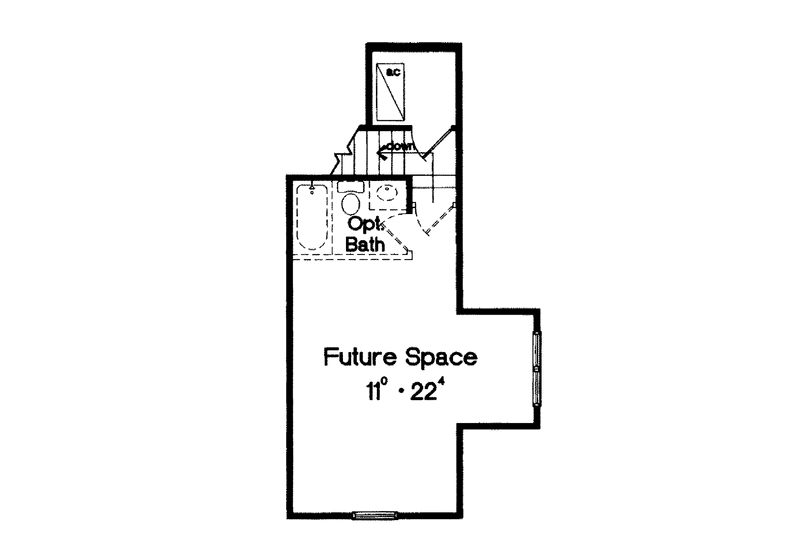

Craftsman Floor Plan - Other Floor Plan Plan #417-672

Full Specs & Features

Dimension

Depth : 63'
Height : 25'
Width : 64' 4"

Area

Bonus: 310 sq/ft
First Floor: 1997 sq/ft height 10'

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x4

Bedroom Features

Fireplace
Formal Dining Room

Kitchen Features

Breakfast Nook
Kitchen Island
Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Sunroom

Garage Features

Side Entry Garage

Outdoor Spaces

Courtyard
Deck
Screened Porch

Rooms

Bathroom 2:

90 sq/ft width 12' x depth 7' 6"

Foyer:

55 sq/ft width 6' 8" x depth 8' 4"

Garage:

437 sq/ft width 21' 2" x depth 20' 8"

Hall:

35 sq/ft width 7' 8" x depth 4' 8"

Kitchen:

224 sq/ft width 15' 8" x depth 14' 4"

Master Bathroom:

203 sq/ft width 13' x depth 15' 8"

Master Closet:

100 sq/ft width 8' x depth 12' 6"

Porch - Front:

66 sq/ft width 11' x depth 6'

Porch - Rear:

424 sq/ft width 30' 8" x depth 13' 10"

Powder Room:

27 sq/ft width 3' 4" x depth 8' 4"

Storage:

14 sq/ft width 3' x depth 4' 8"

Utility Room:

44 sq/ft width 5' 10" x depth 7' 8"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Plan Set

5 Copy Set : $693.00	5 printed plan sets mailed to you.
PDF Set : $864.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $864.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set : $1728.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab: $0.00	Ideal for level lot, single layer concrete poured directly on grade.
Daylight Basement: $405.00	Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x4: $0.00	Wood 2x4
Wood 2x6: $405.00	Wood 2x6

Additional Options

Right-Reading Reverse : $405.00	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $40.50	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $90.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $35.10	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $90.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Material List : $76.50	A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets : $67.50	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
