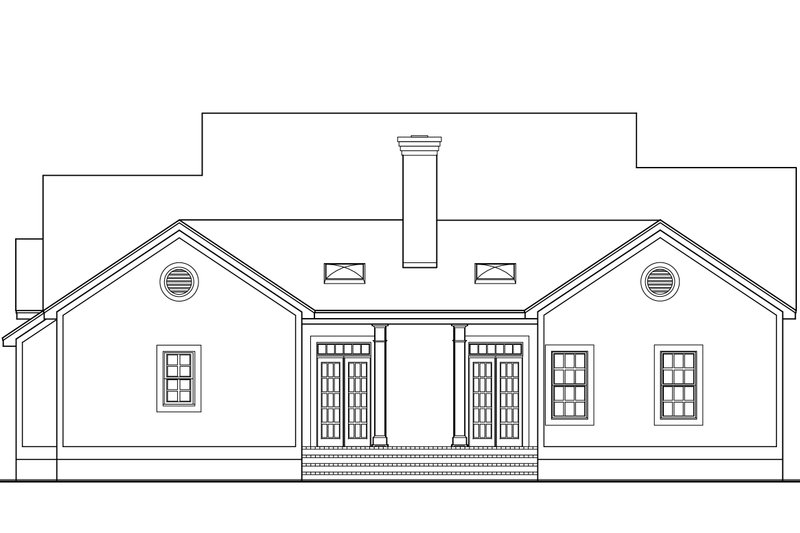

Southern Exterior - Rear Elevation Plan #406-284

Select Plan Set Options

What's included?

	Right-Reading Reverse $255.00 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $55.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $100.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $39.00 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $100.00 Receive an overlay sheet with suggested placement of lighting fixtures.
	Material List $65.00 A list of building supplies needed to construct the infrastructure of your new house.

Subtotal

$1050.00

Best Price Guaranteed*

Also order by phone: 1-800-447-0027

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-447-0027

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 406-284

Key Specs

1997
sq ft

4
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Floor Plans

Floor Plan - Main Floor Plan

Reverse

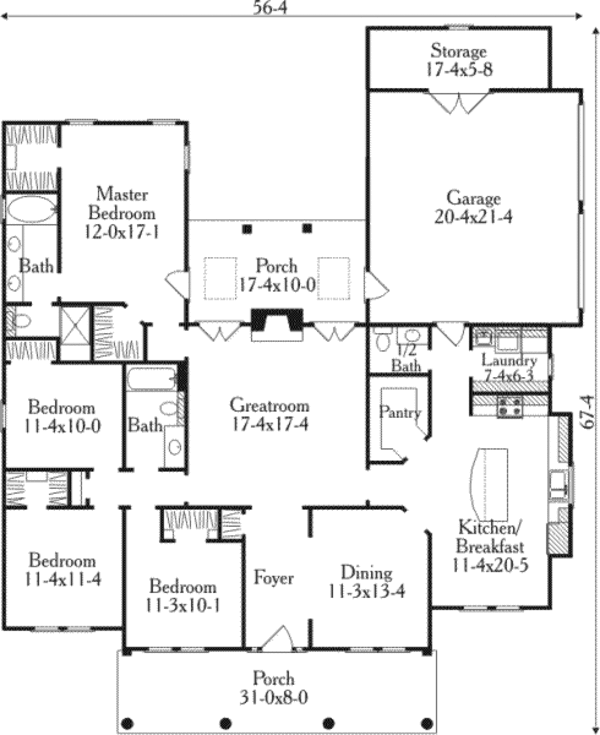

Southern Floor Plan - Main Floor Plan Plan #406-284

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 67' 4"
Height : 25'
Width : 56' 4"

Area

First Floor: 1997 sq/ft height 10'

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Roof

Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : 2"x4"

Bedroom Features

Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Storage Area

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

Bedroom 2:

113 sq/ft width 11' 3" x depth 10' 1"

Bedroom 3:

128 sq/ft width 11' 4" x depth 11' 4"

Bedroom 4:

113 sq/ft width 11' 4" x depth 10'

Dining Room:

153 sq/ft width 11' 3" x depth 13' 8"

Garage:

433 sq/ft width 20' 4" x depth 21' 4"

Garage Storage:

98 sq/ft width 17' 4" x depth 5' 8"

Hall Bathroom:

58 sq/ft width 5' 10" x depth 10'

Laundry Room:

45 sq/ft width 7' 4" x depth 6' 3"

Living Room:

300 sq/ft width 17' 4" x depth 17' 4"

Master Bathroom:

70 sq/ft width 14' x depth 5'

Master Bedroom:

204 sq/ft width 12' x depth 17' 1"

Porch - Front:

248 sq/ft width 31' x depth 8'

Porch - Rear:

173 sq/ft width 17' 4" x depth 10'

Powder Room:

25 sq/ft width 4' 6" x depth 5' 8"

What's Included In This Plan Set

See a sample plan set

The first sheet is the cover sheet which outline the Design Criteria and Construction Notes, such as general site, foundation, framing and mechanical notes
The second sheet is typically the front and side elevation drawn to 1/4" scale.
The third sheet is the rear and side elevation drawn to 1/4" scale.
The foundation of your choice (slab, crawl space or basement). Floor Plan 1/4" Scale
Detail and Section Page
Cabinet elevations & Roof Plan
Electrical Plan
Foundation Details
