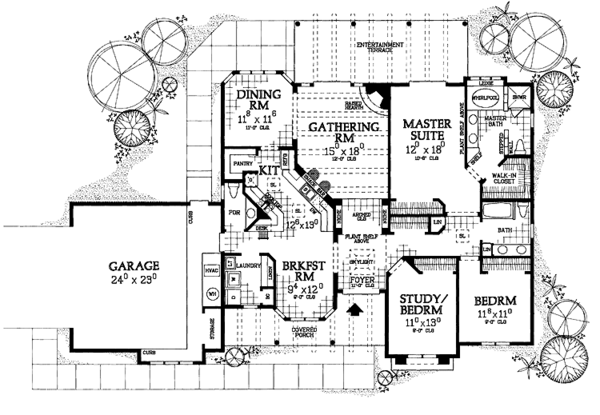

This classic stucco design provides a cool retreat in any climate. From the covered porch, enter the skylit foyer to find an arched ceiling leading to the central gathering room with its raised-hearth fireplace and terrace access. A connecting corner dining room is conveniently located near the amenity-filled kitchen. The large master suite includes terrace access and a private bath with a whirlpool tub, a separate shower and plenty of closet space. A second bedroom and a study that can be converted to a bedroom complete this wonderful plan.
67 sq/ft width 7' 10" x depth 8' 8"
128 sq/ft width 11' 8" x depth 11'
143 sq/ft width 11' x depth 13'
111 sq/ft width 9' 4" x depth 12'
156 sq/ft width 26' x depth 6'
134 sq/ft width 11' 8" x depth 11' 6"
280 sq/ft width 28' x depth 10'
17 sq/ft width 2' 8" x depth 6' 6"
270 sq/ft width 15' x depth 18'
162 sq/ft width 12' 6" x depth 13'
64 sq/ft width 8' x depth 8'
185 sq/ft width 10' 4" x depth 18'
216 sq/ft width 12' x depth 18'
39 sq/ft width 5' 4" x depth 7' 6"
All plans are drawn at ¼” scale or larger and include :
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Ideal for level lot, lower level of home partially or fully underground.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for sloping lot, lower level of home partially underground.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Additional Use License
|Additional Use License.|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Home Furniture Planner
|This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|A list of building supplies needed to construct the infrastructure of your new house.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
|Unlimited Use License
|Unlimited Use License.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
