PLAN #417-600

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

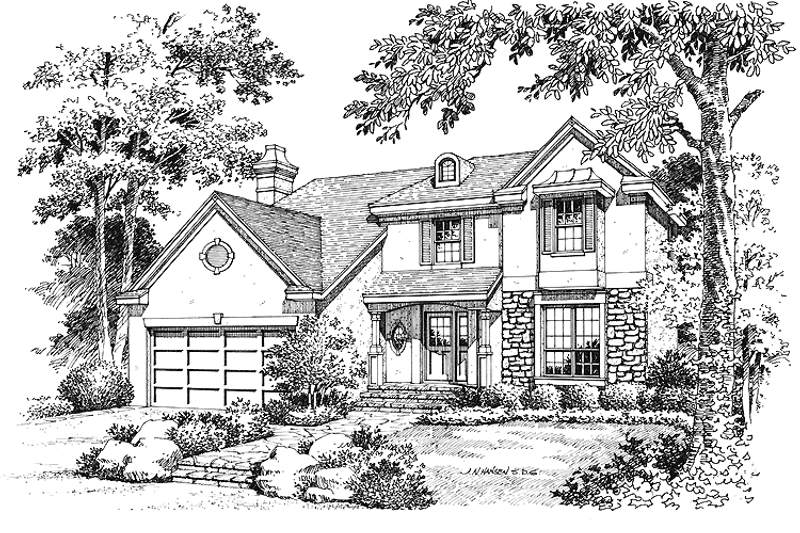

A traditional styled home with a story-book enterance offers today's family space to change and grow. The foyer features a powder room and a stairway to the second floor. The open living/dining room area is large enough for entertaining. A work island/snack counter, window sink, and breakfast nook highlight the kitchen. A fireplace warms the family room. Upstairs four bedrooms include a master sutie with a walk-in closet and private bath. The three family bedrooms share a compartmented bath that provides a double-bowl vanity. One of these bedrooms has a walk-in closet.

Floor Plans

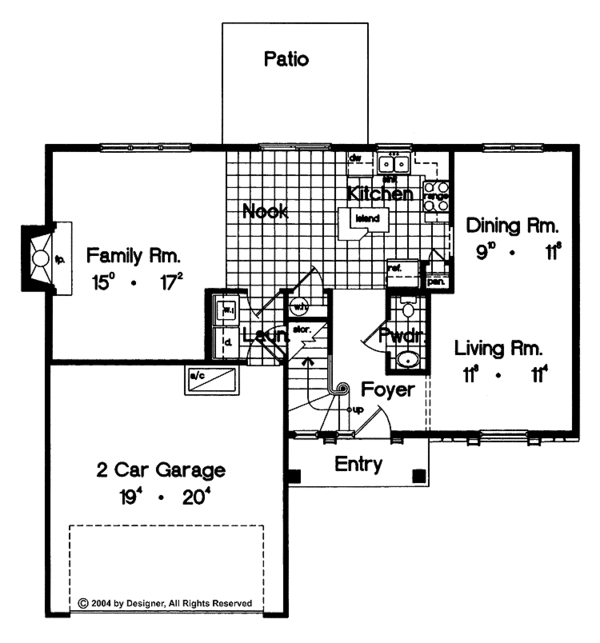

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #417-600

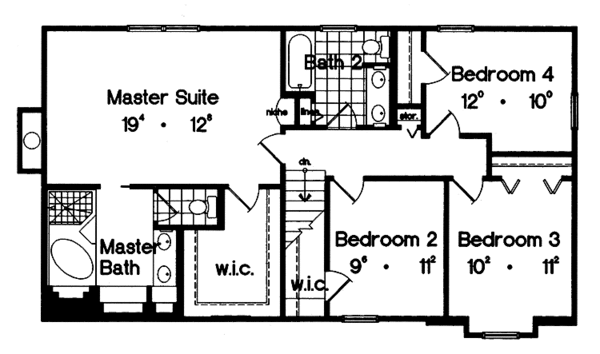

Floor Plan - Upper Floor Plan
Country Floor Plan - Upper Floor Plan Plan #417-600

Full Specs & Features

Depth : 38' 8"
Height : 24'
Width : 44'
First Floor: 1051 sq/ft height 8'
Second Floor: 949 sq/ft
Primary Pitch : 6:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bedroom 2:

106 sq/ft width 9' 6" x depth 11' 2"

Bedroom 3:

113 sq/ft width 10' 2" x depth 11' 2"

Bedroom 4:

96 sq/ft width 12' x depth 8'

Dining Room:

91 sq/ft width 9' 10" x depth 9' 4"


393 sq/ft width 19' 4" x depth 20' 4"

Gathering Room:

283 sq/ft width 16' 10" x depth 16' 10"


181 sq/ft width 16' x depth 11' 4"

Living Room:

133 sq/ft width 11' 9" x depth 11' 4"

Master Bedroom:

239 sq/ft width 19' x depth 12' 7"

Master Closet:

57 sq/ft width 8' x depth 7' 2"

Utility Room:

33 sq/ft width 6' x depth 5' 6"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for level lot, single layer concrete poured directly on grade.


Wood 2x6:
Wood 2x6

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
