PLAN 51-512

Home > Style > Craftsman House Plans

Key Specs

2023
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This craftsman design floor plan is 2023 sq ft and has 3 bedrooms and 2 bathrooms.

Floor Plans

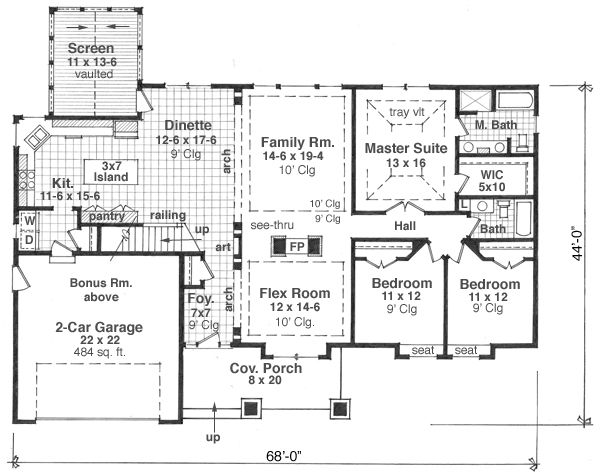

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

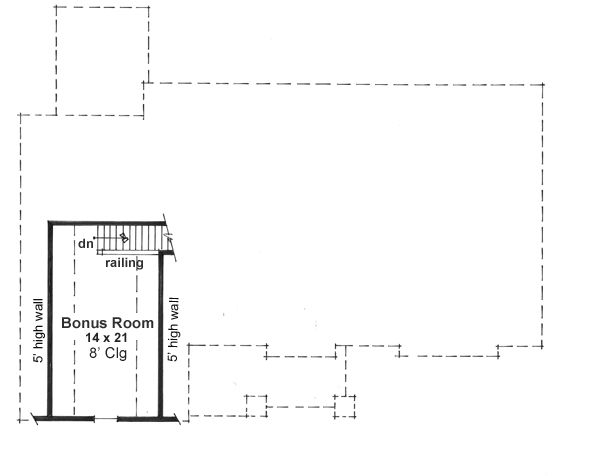

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 44'

Height : 26'

Width : 68'

Area

Bonus: 294 sq/ft height 8'

First Floor: 2023 sq/ft height 9'

Garage: 484 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 8'

Ceiling Details : Family room and Flex room have 10'-0" clg. hgt. Screen porch is vaulted.

Main Ceiling : 9'

Roof

Primary Pitch : 8:12

Roof Framing : Trusses

Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone

Framing : 2"x6"

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Great Room Living Room

Main Floor Laundry

Mud Room

Play Flex Room

Sunroom

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Screened Porch

Empty Nester

Rooms

Bedroom 2:

132 sq/ft width 11' x depth 12'

Bedroom 3:

132 sq/ft width 11' x depth 12'

Bonus Room - Unfinished:

294 sq/ft width 14' x depth 21'

Dinette:

218 sq/ft width 12' 6" x depth 17' 6"

Family Room:

280 sq/ft width 14' 6" x depth 19' 4"

Flex Room:

174 sq/ft width 12' x depth 14' 6"

Garage:

484 sq/ft width 22' x depth 22'

Kitchen:

178 sq/ft width 11' 6" x depth 15' 6"

Master Bedroom:

208 sq/ft width 13' x depth 16'

Porch - Front:

160 sq/ft width 8' x depth 20'

Porch - Screened:

148 sq/ft width 11' x depth 13' 6"

What's Included In This Plan Set

See a sample plan set

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
Note: These plans will not contain an electrical layout.
