PLAN #314-292

Select Plan Set Options
What's included?
Additional Construction Sets
Mirror Reversed Sets
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Got Questions?
Got Questions?  Just ask!
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #314-292

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

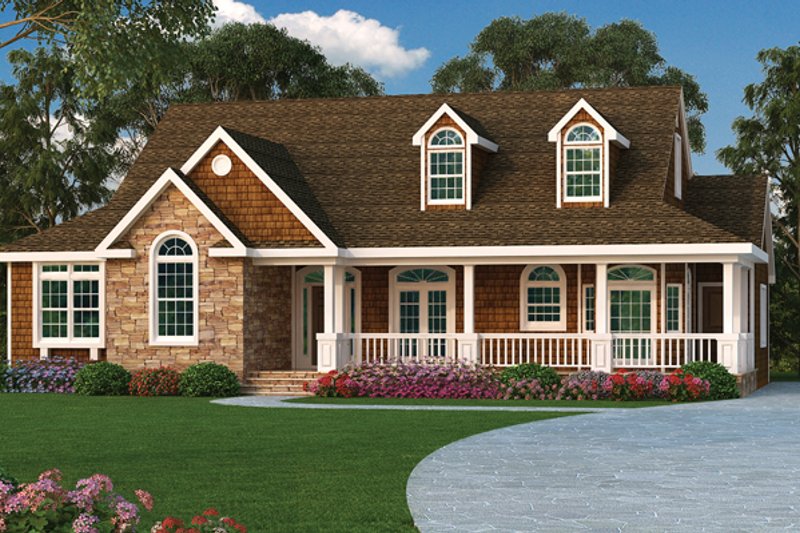

This supremely graceful country farmhouse is full of special features. A large office with its own exterior entrance is perfect for an in-home business. The huge second-floor bonus space can be finished as you like. In the lovely front kitchen, enjoy a cup of tea with a good friend seated in the bright nook, or step out onto the wraparound front porch. Another porch sits in back, accessed from the spacious stepped-ceiling great room. On the left side of the home, the private master suite features an inviting sitting area and a roomy walk-in closet.

Floor Plans

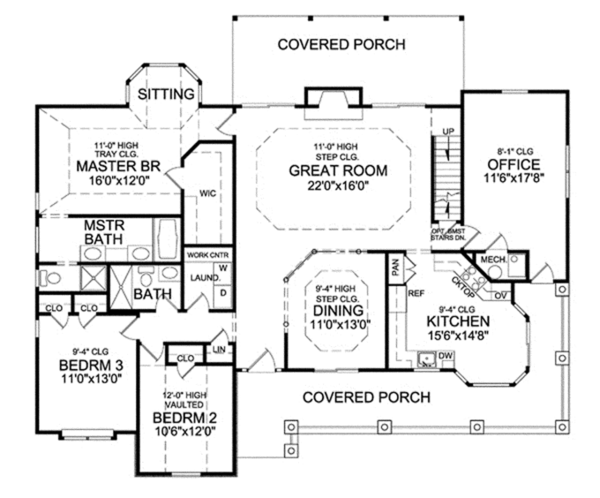

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #314-292

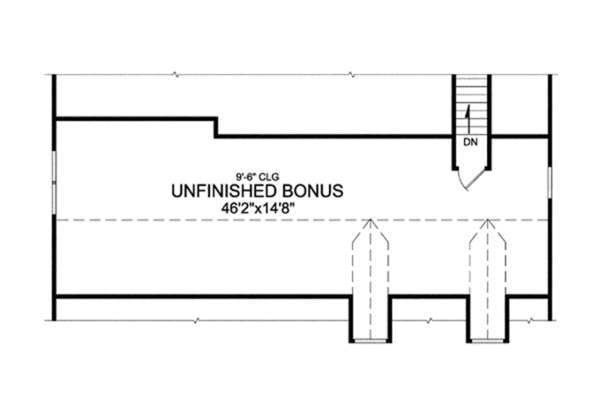

Floor Plan - Other Floor Plan
Ranch Floor Plan - Other Floor Plan Plan #314-292

Full Specs & Features

Dimension Depth : 51' 8"
Height : 24' 6"
Width : 60'
Area Bonus : 779 sq/ft
Lower Floor : 2028 sq/ft
Main Floor : 2028 sq/ft
Porch : 305 sq/ft
Bedroom Features Main Floor Master Bedroom
Walk In Closet
Formal Dining Room
Kitchen Features Breakfast Nook
Additional Room Features Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Storage Area
Unfinished Future Space
Open Floor Plan
Vaulted / Cathedral Ceilings
Outdoor Spaces Covered Front Porch
Covered Rear Porch
Bedroom 2 width 10' 6" x depth 12'
Bedroom 3 width 11' x depth 13'
Bonus 779 sq/ft width 46' 2" x depth 14' 8"
Dining width 11' x depth 13'
Front Porch 260 sq/ft width 0" x depth 0"
Great Room width 22' x depth 16'
Kitchen width 15' 6" x depth 14' 8"
Master Bedroom width 16' x depth 12'
Office width 11' 6" x depth 17' 8"
Rear Porch 305 sq/ft width 0" x depth 0"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
8 Copy Set :
8 printed plan sets mailed to you.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
Wood 2x4:
Wood 2x4
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
