Key Specs

2031
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Floor Plans

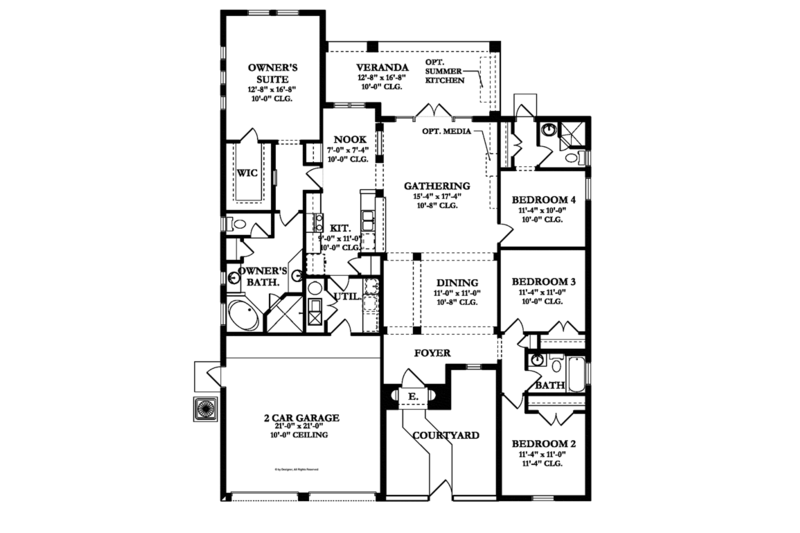

Floor Plan - Main Floor Plan

Full Specs & Features

Dimension

Depth : 65' 4"
Height : 17'
Width : 49' 4"

Area

First Floor: 2031 sq/ft
Garage: 476 sq/ft

Roof

Roof Framing : Truss
Primary Pitch : 4:12
Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Block

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room

Kitchen Features

Breakfast Nook

Additional Room Features

Main Floor Laundry
Open Floor Plan

Garage Features

Front Entry Garage

Outdoor Spaces

Courtyard
Covered Rear Porch

Rooms

Bedroom 2:

width 11' 4" x depth 11'

Bedroom 3:

width 11' 4" x depth 11'

Bedroom 4:

width 11' 4" x depth 10'

Dining:

width 11' x depth 11'

Garage:

476 sq/ft width 21' x depth 21'

Gathering Room:

width 15' 4" x depth 17' 4"

Kitchen:

width 9' x depth 11'

Master Bedroom:

width 12' 8" x depth 16' 8"

Nook:

width 7' x depth 7' 4"

Verandah:

218 sq/ft width 12' 8" x depth 16' 8"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

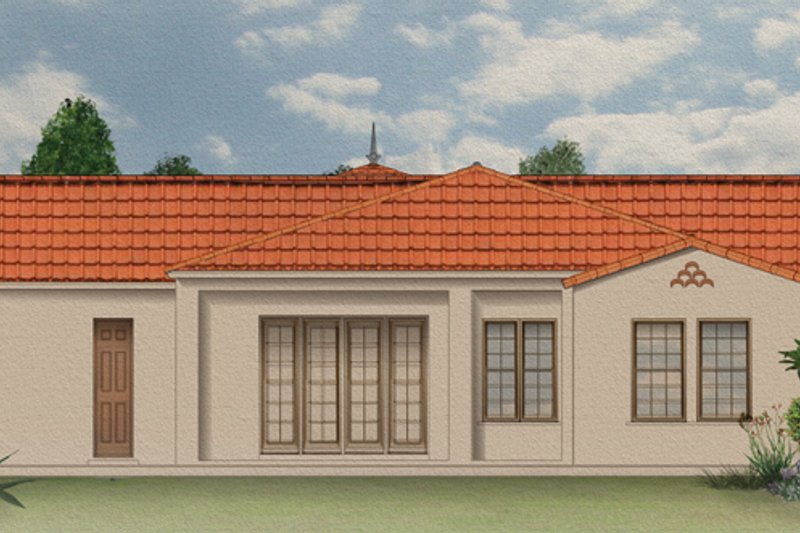

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
