PLAN #72-128

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

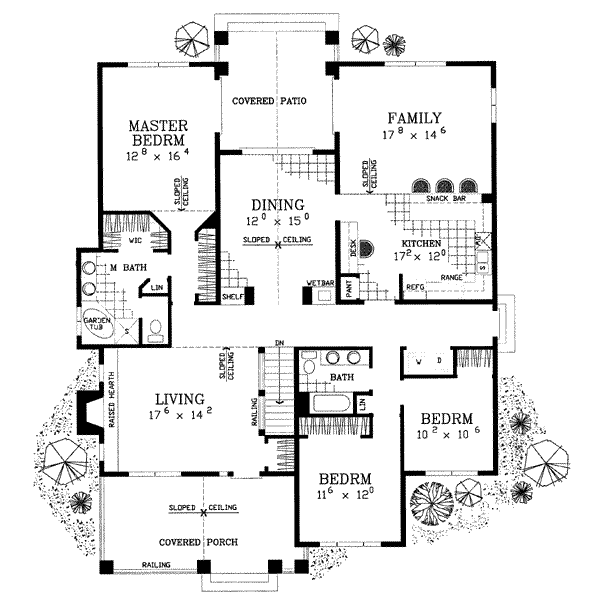

Floor Plan - Main Floor Plan
Cottage Floor Plan - Main Floor Plan Plan #72-128

Full Specs & Features

Depth : 61' 6"
Height : 24'
Width : 47' 6"
Basement Unfinished: 2071 sq/ft
First Floor: 2033 sq/ft height 9'
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Family Room Keeping Room
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bedroom 2:

107 sq/ft width 10' 2" x depth 10' 7"

Bedroom 3:

138 sq/ft width 11' 6" x depth 12' 1"

Dining Room:

204 sq/ft width 12' x depth 17'

Gathering Room:

257 sq/ft width 17' 9" x depth 14' 6"


213 sq/ft width 17' 9" x depth 12'

Living Room:

255 sq/ft width 18' x depth 14' 2"

Master Bathroom:

102 sq/ft width 9' 9" x depth 10' 6"

Master Bedroom:

216 sq/ft width 13' 3" x depth 16' 4"

Porch - Front:

215 sq/ft width 21' 2" x depth 10' 2"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.
Ideal for level lot, lower level of home partially or fully underground.
