Key Specs


2034
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Attractive, contemporary split-bedroom planning makes the most of this plan. The master suite pampers with a lavish bath and a fireplace. The living areas are open and easily access the rear terrace. Note, in particular, the convenient snack bar between the kitchen and the gathering room/dining room. A large laundry area and washroom separate the main house from the garage. A balcony overlook on the second floor allows views to the gathering room or to the entry.<P/><BR/>

Floor Plans

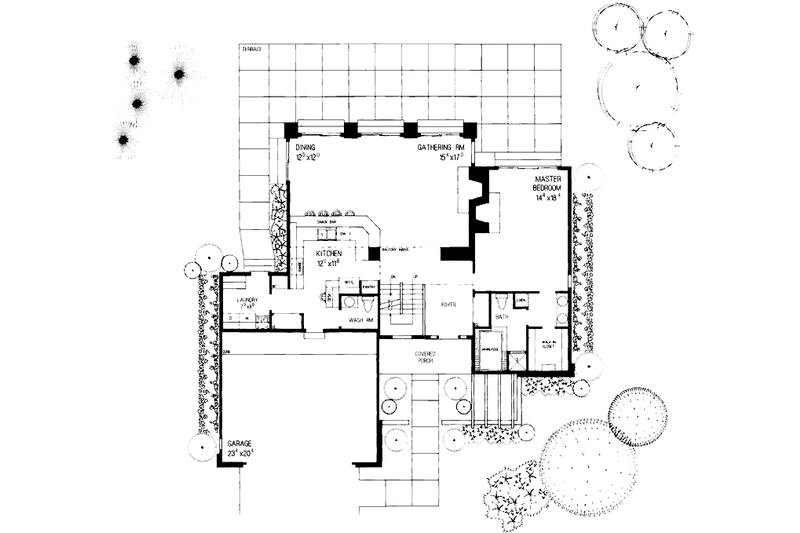

Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #72-636

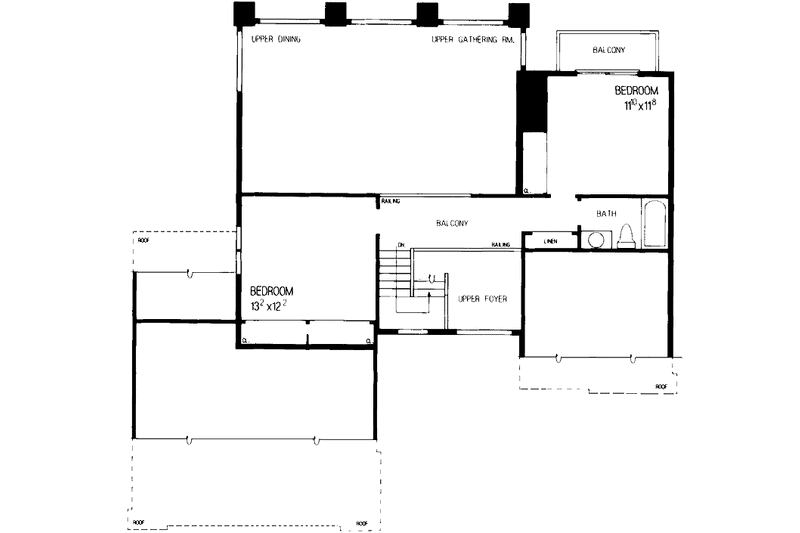

Floor Plan - Upper Floor Plan
Contemporary Floor Plan - Upper Floor Plan Plan #72-636

Full Specs & Features


Dimension
Depth : 51' 8"
Height : 26'
Width : 53'
Area
First Floor: 1414 sq/ft height 8'
Second Floor: 620 sq/ft
Roof
Roof Framing : Combination Truss/Conventional
Primary Pitch : 6:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x6
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Fireplace
Formal Dining Room
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Main Floor Laundry
Loft
Open Floor Plan
Outdoor Spaces
Courtyard
Covered Front Porch
Balcony
Rooms

3rd BR Closet:

12 sq/ft width 2' 1" x depth 6' 2"

Basement Foundation:

2760 sq/ft width 52' 1" x depth 53'

Bedroom 2:

160 sq/ft width 12' 2" x depth 13' 2"

Bedroom 2 Closet:

27 sq/ft width 2' 1" x depth 13' 3"

Bedroom 3:

128 sq/ft width 11' x depth 11' 8"

Bedroom 3 Closet:

27 sq/ft width 2' 1" x depth 13' 3"

Dining Room:

144 sq/ft width 12' x depth 12'

Foyer:

56 sq/ft width 7' 3" x depth 7' 9"

Garage:

460 sq/ft width 19' 8" x depth 23' 5"

Gathering Room:

260 sq/ft width 15' 4" x depth 17'

Hall Closet:

10 sq/ft width 2' 1" x depth 5'

Kitchen:

140 sq/ft width 11' 8" x depth 12'

Laundry Room:

57 sq/ft width 7' 1" x depth 8' 1"

Master Bathroom:

91 sq/ft width 7' 9" x depth 11' 9"

Master Bedroom:

262 sq/ft width 14' 4" x depth 18' 4"

Master Closet:

37 sq/ft width 6' x depth 6' 4"

Porch - Front:

74 sq/ft width 5' 4" x depth 14'

Wash Room:

27 sq/ft width 5' x depth 5' 7"
