PLAN #456-52

Key Specs


2043
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

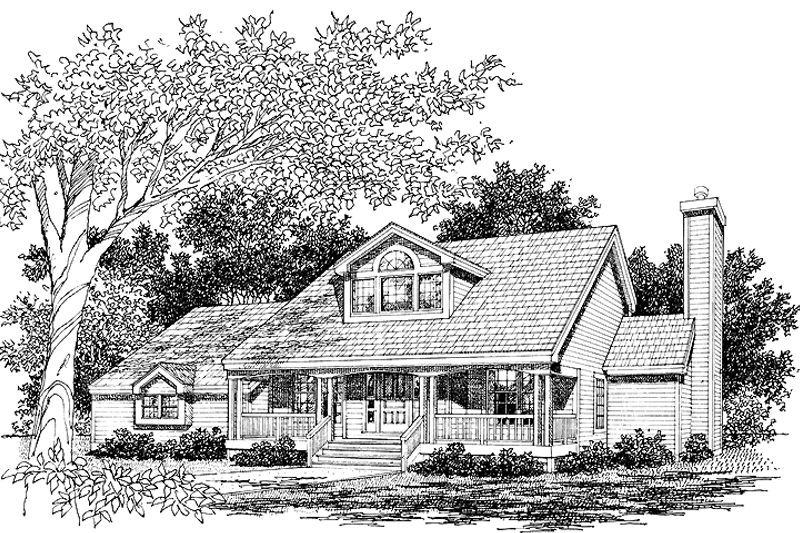

With its welcoming front porch extending along the front of the house, this country style home reflects a plan that enables flexibility in living style providing formal and informal spaces. The two-story central foyer contains two coat closets. To the left is a cozy space which can be used as formal sitting area, a den, office or library. To the right of the foyer is the formal dining room. The informal rooms, to the rear of the house, consist of the open, large combined space of the kitchen and family room, subdivided by an "L" shaped counter. There is a pantry closet here. The comfortably sized laundry is connected to the kitchen. Next to that is a nook for informal dining which looks out to the deck and covered porch. This porch, completely screened, is on the deck level and serves as an outdoor room in warmer weather. A corridor leads straight to the rear kitchen from the foyer, passing a lavatory and then also connecting to the master bedroom to the left. The suite contains two indentical walk-in closets. The master bath holds two sinks, a separate toilet compartment whirlpool tub and stall shower.

Floor Plans

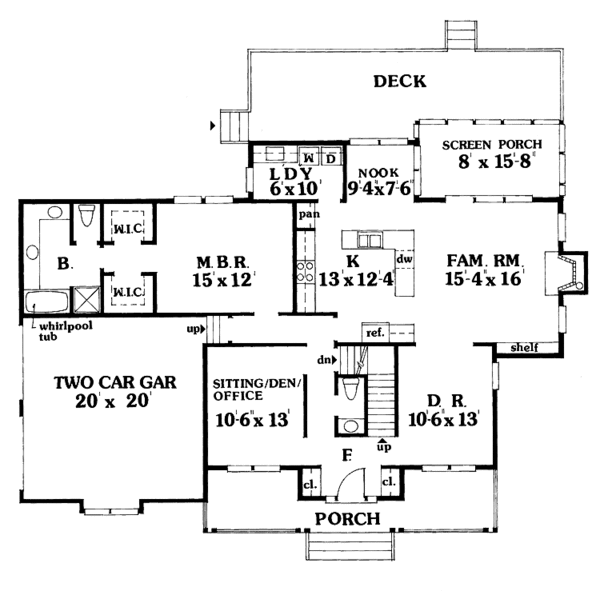

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #456-52

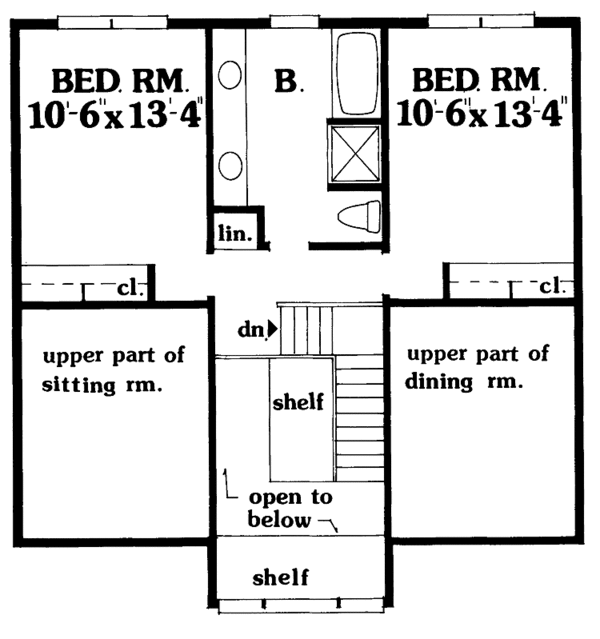

Floor Plan - Upper Floor Plan
Country Floor Plan - Upper Floor Plan Plan #456-52

Full Specs & Features


Dimension
Depth : 45'
Height : 25'
Width : 60'
Area
First Floor: 1509 sq/ft height 8'
Second Floor: 534 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 7:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Loft
Sunroom
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Balcony
Screened Porch
Deck

What's Included In This Plan Set


  • Exterior Elevations: showing the front, rear, and side views with standard and alternate material choices; all elevations are usually ¼" scale.
  • Foundation plans: separate foundation plans are usually provided for a basement/crawl space, and slab, unless otherwise noted. All are drawn at ¼" scale and include first floor framing information for basement/crawl spaces, including beams, girders, columns and piers. Some plans include walk-out(daylight) basement options as well.
  • Floor plans: ¼" scale for each floor, including all room dimensions, door and window sizes and locations, stairways, kitchens, baths, etc. Framing information for stick framed ceiling beams and/or second floor framing is included.
  • Cross sections: ¼" scale cut-away views for each distinct area, showing all framing, ceiling details, heights, roof pitches, etc.
  • Roof plan: a separate roof plan is usually provided showing all pitches, rafter sizes, valley, hip and ridge locations, and areas of double roof framing.
  • Schematic electrical: shows suggested locations for outlets, switches and fixtures on either a separate drawing or directly on the floor plans.
  • Kitchen cabinets: schematic drawings of all kitchen cabinets.
In addition, each blueprint order includes the following extra helpful information:

  • Specifications: a separate 8 page outline specification of most materials, construction methods and techniques, in a format for customizing; for use in obtaining bids and as a contract document.
  • Standard details: 2 additional drawing pages filled with standard construction details.
  • Energy conservation details: 2 more drawing pages chock full of drawings and ideas on how to build to conserve energy.
  • Making changes: finally we include a separate 6 page primer on choosing a contractor and making changes, as virtually everyone makes some changes in building their home.
» See important information before purchasing.

Plan Set

PDF Set :
$975.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1000.00
5 printed plan sets mailed to you.
8 Copy Set :
$1080.00
8 printed plan sets mailed to you.
Reproducible Set :
$1105.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$100.00
Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Material List :
95.00
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
