PLAN #70-1132

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

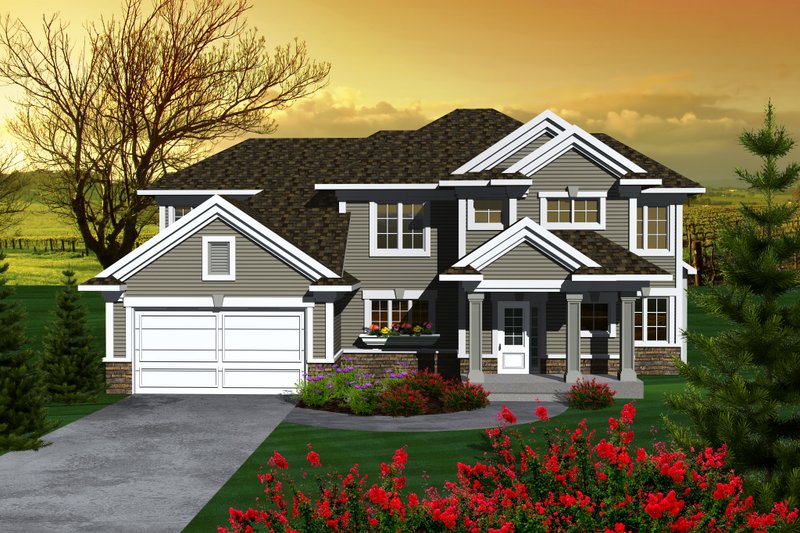

At just over 2000 square feet, this two-story home will make a traditional impact on any neighborhood blending easily with existing homes. As you enter the home, the two-story ceiling will impress you and draw your eye forward to the back of the home into the main living area. Here, a kitchen with breakfast bar overlooks the dining area and lies adjacent to the large great room. A large bank of windows and a fireplace work together to warm the entire living space making it comfortable and spacious. Upstairs you’ll find three bedrooms including a large master with private bath, walk-in closet and direct access to the second story laundry room. Two additional bedrooms share the full bath off the hall. Finally, a two-stall garage with extra space or room enough to tandem park three cars, completes the home.

Floor Plans

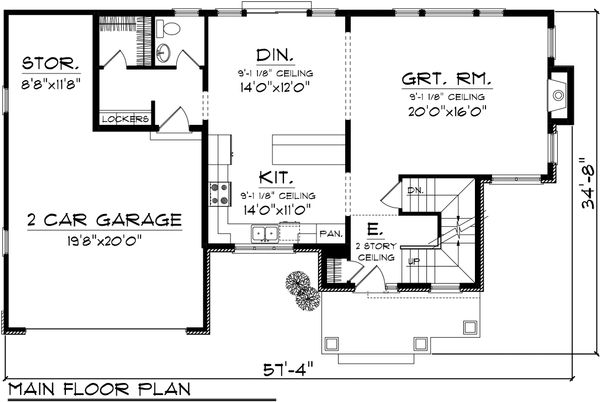

Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #70-1132

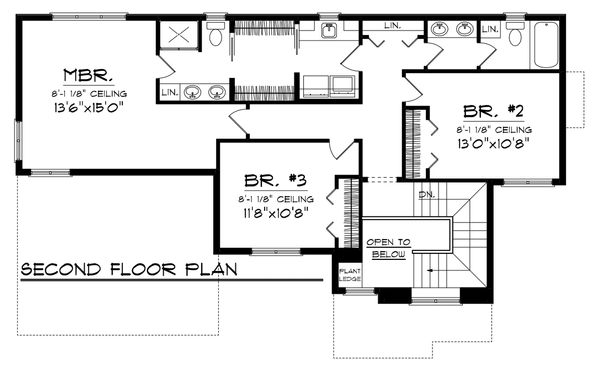

Floor Plan - Upper Floor Plan
Craftsman Floor Plan - Upper Floor Plan Plan #70-1132

Full Specs & Features

Depth : 34' 8"
Height : 28' 10"
Width : 57' 4"
First Floor: 1004 sq/ft height 9' 1"
Garage: 521 sq/ft
Second Floor: 1042 sq/ft height 8' 1"
Ceiling Details : Entry 2-Story
Lower Ceiling : 8'
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof Framing : Truss
Roof Load : 47 psf
Primary Pitch : 8:12
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Siding, Stone
Framing : 2x6
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Great Room Living Room
Storage Area
Unfinished Future Space
Upstairs Laundry
Garage Features
Front Entry Garage
Tandem Garage
Outdoor Spaces
Covered Front Porch

Bedroom 2:

width 13' x depth 10' 8"

Bedroom 3:

width 11' 8" x depth 10' 8"

Dining Area:

width 14' x depth 12'


width 19' 8" x depth 20'

Garage Storage:

width 8' 8" x depth 11' 8"

Great Room:

width 20' x depth 16'


width 14' x depth 11'

Master Bedroom:

width 13' 6" x depth 15'

What's Included In This Plan Set

  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
