PLAN #417-486

Key Specs


2089
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This four-bedroom, three-bath home offers the finest in modern amenities. The already spacious family room opens up to the terrace via 12-foot pocket sliding doors. Or stay inside to enjoy the fireplace and built-in media center. At left, two family bedrooms share a full bath, and one bedroom suite provides for overnight guests. The master suite, located just off the kitchen and nook, is private yet easily accessible. Note the enviable walk-in closet, step-down shower, and private toilet. The exterior features a robust columned entry and full-height windows.

Floor Plans

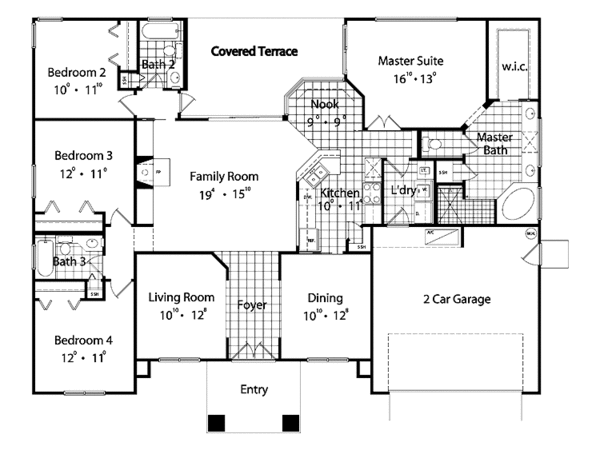

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #417-486
Floor Plan - Other Floor Plan
Mediterranean Floor Plan - Other Floor Plan Plan #417-486

Full Specs & Features


Dimension
Depth : 50' 4"
Height : 21'
Width : 61' 8"
Area
First Floor: 2089 sq/ft height 10'
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchenette Wet Bar
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Storage Area
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Rooms

3rd BR Closet:

19 sq/ft width 2' 4" x depth 8' 2"

Bath 2:

width 8' 10" x depth 5' 4"

Bathroom 2:

43 sq/ft width 5' 4" x depth 8' 2"

Bathroom 3:

46 sq/ft width 5' 8" x depth 8' 2"

Bedroom 2:

118 sq/ft width 10' x depth 11' 10"

Bedroom 2 Closet:

19 sq/ft width 2' 4" x depth 8' 2"

Bedroom 3:

132 sq/ft width 12' x depth 11'

Bedroom 3 Closet:

19 sq/ft width 2' 4" x depth 8' 2"

Bedroom 4:

132 sq/ft width 12' x depth 11'

Bedroom 4 Closet:

19 sq/ft width 2' 4" x depth 8' 2"

Breakfast Room:

81 sq/ft width 9' x depth 9'

Dining Room:

137 sq/ft width 10' 10" x depth 12' 8"

Foyer:

85 sq/ft width 6' 4" x depth 13' 1"

Garage:

413 sq/ft width 20' 4" x depth 20' 4"

Gathering Room:

306 sq/ft width 19' 4" x depth 15' 10"

Kitchen:

113 sq/ft width 10' x depth 11' 4"

Laundry Room:

45 sq/ft width 6' x depth 7' 6"

Living Room:

137 sq/ft width 10' 10" x depth 12' 8"

Master Bath:

width 13' x depth 16' 2"

Master Bathroom:

205 sq/ft width 14' x depth 14' 8"

Master Bedroom:

218 sq/ft width 16' 10" x depth 13'

Master Closet:

62 sq/ft width 6' 4" x depth 9' 10"

Porch - Rear:

194 sq/ft width 19' 1" x depth 10' 2"

Slab Foundation:

3103 sq/ft width 61' 8" x depth 50' 4"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

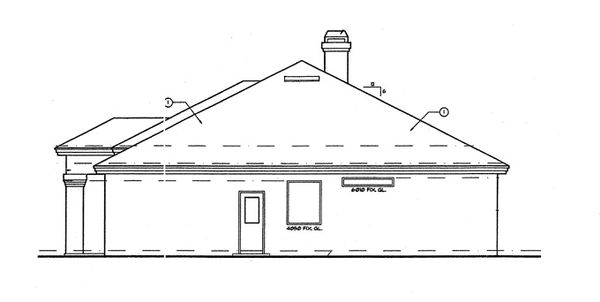

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$840.00
5 printed plan sets mailed to you.
PDF Set :
$1030.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1030.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$2060.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00
Wood 2x4
Wood 2x6:
$450.00
Wood 2x6

Additional Options

Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
