PLAN 72-133
Key Specs
2090
sq ft
3
Beds
2.5
Baths
1
Floors
2
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 72-133
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Dimension
Depth : 64'
Height : 25'
Width : 76'
Height : 25'
Width : 76'
Area
First Floor: 2090 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : 2"x6"
Framing : 2"x6"
Bedroom Features
Split Bedrooms
Walk In Closet
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Master Sitting Area
Master Sitting Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch

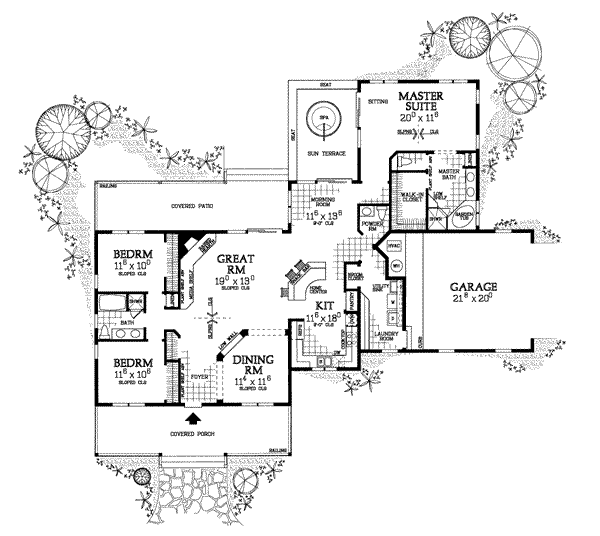

Rooms
3rd BR Closet:
20 sq/ft width 2' 1" x depth 10'
Bathroom 2:
62 sq/ft width 8' x depth 7' 10"
Bedroom 2:
120 sq/ft width 11' 6" x depth 10' 6"
Bedroom 2 Closet:
14 sq/ft width 2' 1" x depth 7'
Bedroom 3:
115 sq/ft width 11' 6" x depth 10'
Bedroom 3 Closet:
14 sq/ft width 2' 1" x depth 7'
Breakfast Room:
155 sq/ft width 11' 6" x depth 13' 6"
Dining Room:
130 sq/ft width 11' 4" x depth 11' 6"
Foyer:
53 sq/ft width 6' 4" x depth 8' 6"
Garage:
433 sq/ft width 21' 8" x depth 20'
Gathering Room:
247 sq/ft width 19' x depth 13'
Hall Closet:
10 sq/ft width 2' 1" x depth 4' 10"
Kitchen:
207 sq/ft width 11' 6" x depth 18'
Laundry Room:
87 sq/ft width 7' 4" x depth 12'
Master Bathroom:
108 sq/ft width 8' 4" x depth 13'
Master Bedroom:
230 sq/ft width 20' x depth 11' 6"
Master Closet:
58 sq/ft width 6' x depth 9' 10"
Porch - Front:
289 sq/ft width 8' 6" x depth 34'
Powder Room:
21 sq/ft width 5' x depth 4' 4"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-800-447-0027
Plan Set
| PDF Set : $893.97 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set : $997.92 |
5 printed plan sets mailed to you. |
| 8 Copy Set : $1101.87 |
8 printed plan sets mailed to you. |
| Reproducible Set : $1101.87 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set : $1787.94 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Single Set : $790.02 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
Additional Options
| Right-Reading Reverse : $157.50 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $54.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Additional Use License : $406.80 |
Additional Use License. |
| Audio Video Design : $90.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $35.10 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Material List : $76.50 |
A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options. |
| Mirror Reversed Sets : $54.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
| Unlimited Use License : $812.70 |
Unlimited Use License. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
