PLAN 927-227
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Floor Plans

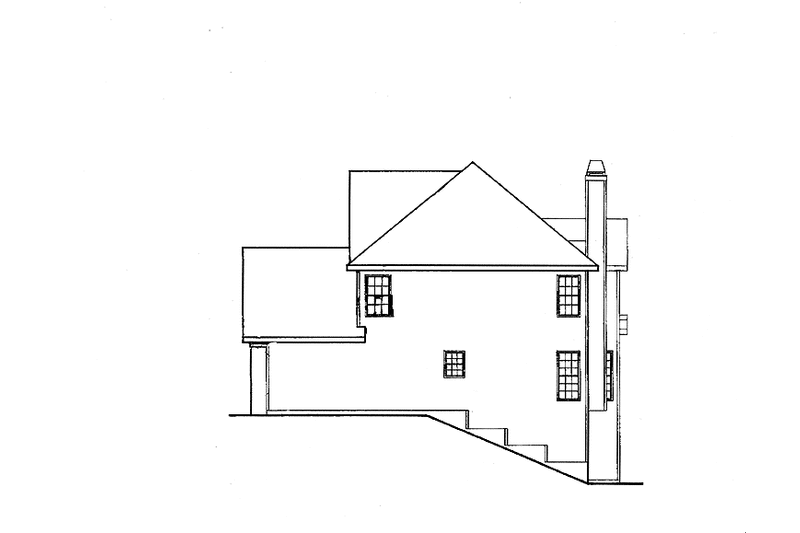

Floor Plan - Other Floor

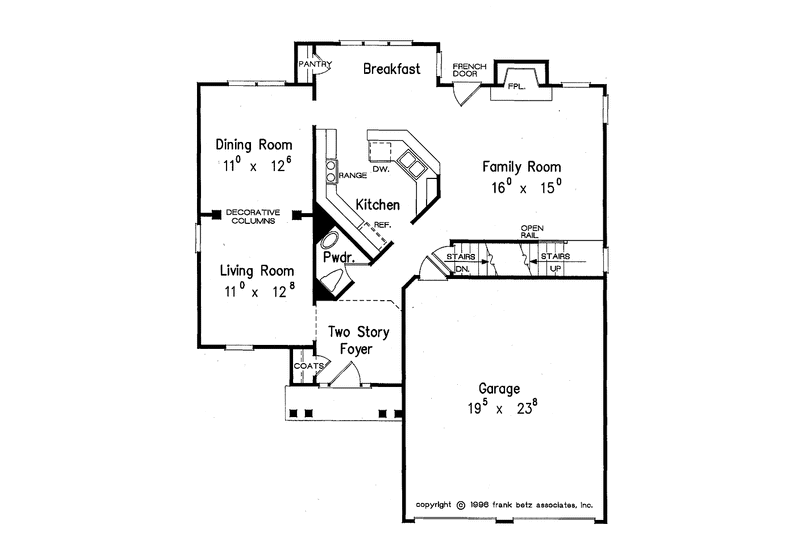

Floor Plan - Main Floor

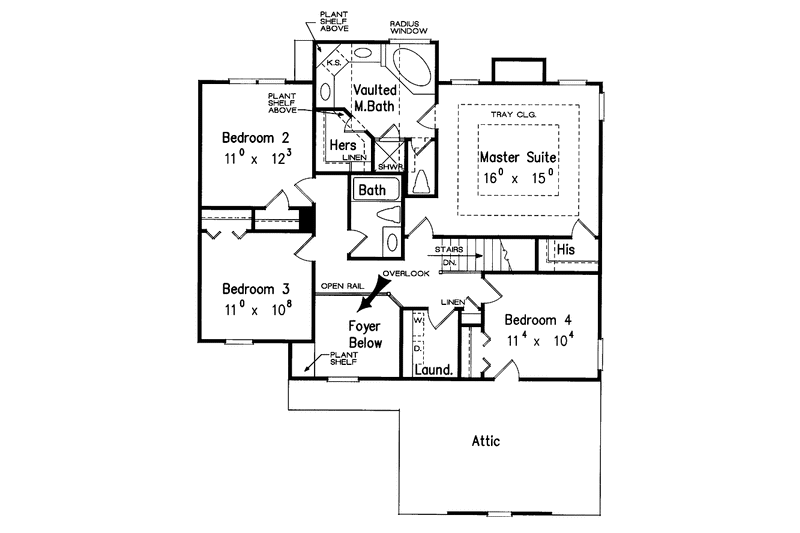

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 47'
Height : 32'
Width : 40'
Area
Basement Unfinished: 986 sq/ft
First Floor: 1002 sq/ft height 9'
Garage: 476 sq/ft
Second Floor: 1094 sq/ft height 8'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Living Room / Parlor
Additional Room Features
Family Room Keeping Room
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
134 sq/ft width 11' x depth 12' 3"
Bedroom 3:
117 sq/ft width 11' x depth 10' 8"
Bedroom 4:
117 sq/ft width 11' 4" x depth 10' 4"
Breakfast:
106 sq/ft width 11' 10" x depth 9'
Dining Room:
137 sq/ft width 11' x depth 12' 6"
Family Room:
240 sq/ft width 16' x depth 15'
Foyer:
68 sq/ft width 8' 5" x depth 8' 1"
Garage:
459 sq/ft width 19' 5" x depth 23' 8"
Kitchen:
138 sq/ft width 12' x depth 11' 6"
Laundry Room:
36 sq/ft width 5' 6" x depth 6' 8"
Living Room:
139 sq/ft width 11' x depth 12' 8"
Master Bathroom:
149 sq/ft width 11' 10" x depth 12' 8"
Master Bedroom:
240 sq/ft width 16' x depth 15'
Master Closet - Hers:
33 sq/ft width 5' 6" x depth 6'
Master Closet - His:
19 sq/ft width 6' x depth 3' 2"
Powder Room:
25 sq/ft width 5' x depth 5'
What's Included In This Plan Set
-

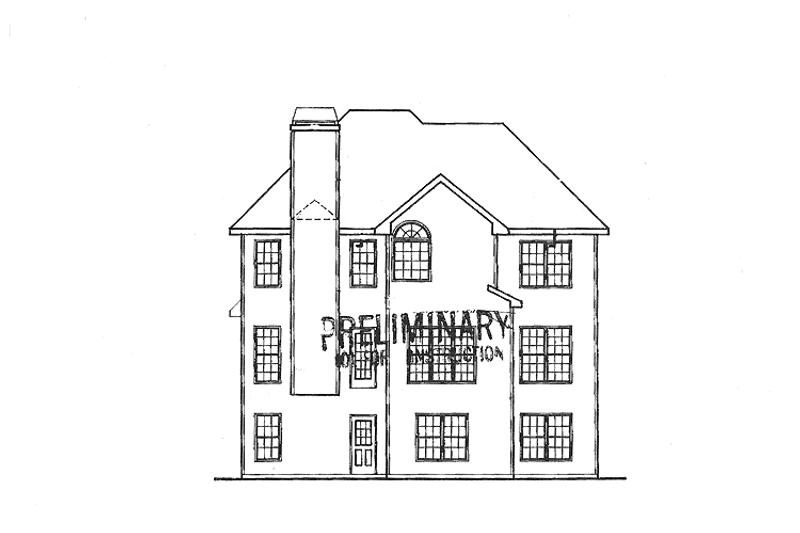

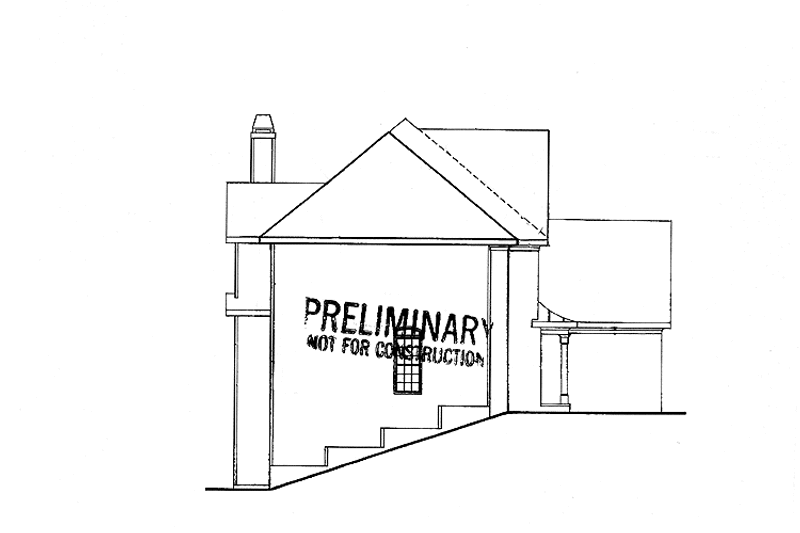

All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
Plan Set
$1602.25
$1823.25
$1899.75
$2120.75
$2146.25
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$250.75
$140.25
$33.15
$140.25
$72.25
* Alternate Foundations may take time to prepare.
