PLAN #417-638

Key Specs


2140
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

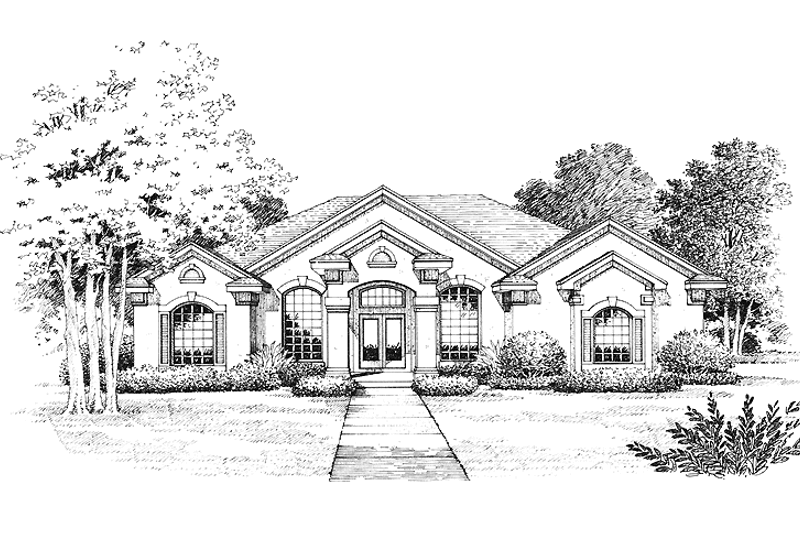

An elegant front elevation welcomes visitors to this compact home, but it's the open design that makes them want to stay. Flexibility characterizes the house with formal living and dining areas, a large kitchen with walk-in pantry and bar seating, and overall efficient use of space.

Floor Plans

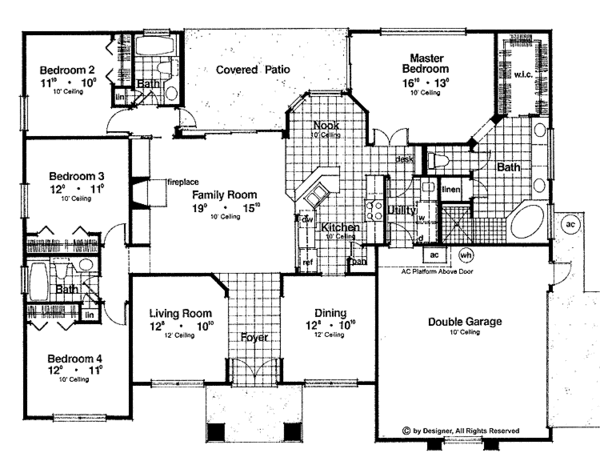

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #417-638

Full Specs & Features


Dimension
Depth : 55'
Height : 24'
Width : 62' 4"
Area
First Floor: 2140 sq/ft
Roof
Roof Framing : Truss
Primary Pitch : 7:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Garage Features
Side Entry Garage
Outdoor Spaces
Courtyard
Rooms

Bedroom 2:

118 sq/ft width 11' 10" x depth 10'

Bedroom 3:

132 sq/ft width 12' x depth 11'

Bedroom 4:

132 sq/ft width 12' x depth 11'

Dining Room:

137 sq/ft width 12' 8" x depth 10' 10"

Family Room:

301 sq/ft width 19' x depth 15' 10"

Kitchen:

136 sq/ft width 11' 8" x depth 11' 8"

Living Room:

137 sq/ft width 12' 8" x depth 10' 10"

Master Bedroom:

219 sq/ft width 16' 10" x depth 13'

Master Closet:

57 sq/ft width 6' x depth 9' 6"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$840.00
5 printed plan sets mailed to you.
PDF Set :
$1030.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1030.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$2060.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00
Block
Wood 2x4:
$450.00
Wood 2x4

Additional Options

Material List :
85.00
A list of building supplies needed to construct the infrastructure of your new house.
Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.

*Alternate Foundations may take time to prepare.
