Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

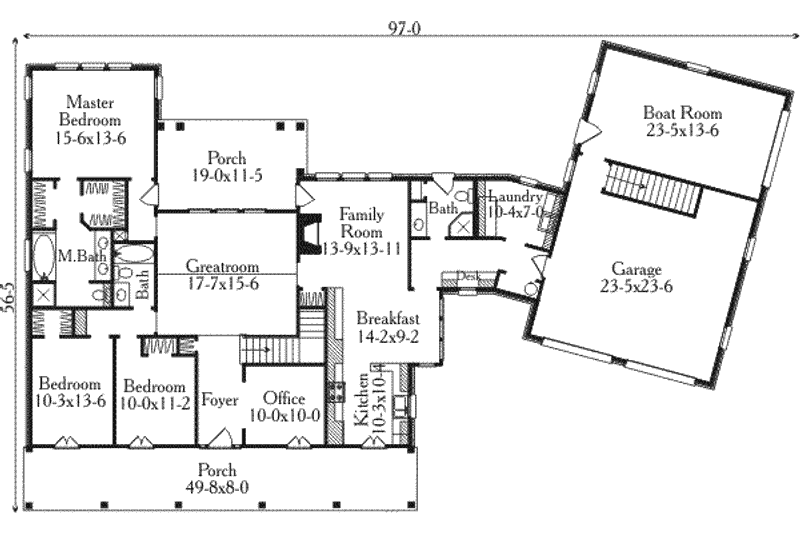

Floor Plan - Main Floor Plan
Southern Floor Plan - Main Floor Plan Plan #406-299

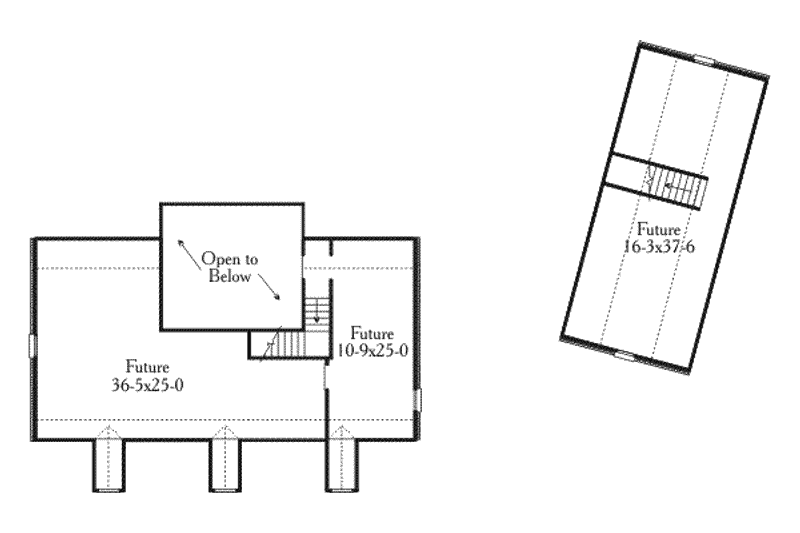

Floor Plan - Other Floor Plan
Southern Floor Plan - Other Floor Plan Plan #406-299

Full Specs & Features

Depth : 97'
Height : 28'
Width : 56' 5"
First Floor: 2144 sq/ft height 9'
Main Ceiling : 9'
Primary Pitch : 10:12
Exterior Wall Framing
Framing : 2"x4"
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Storage Area
Unfinished Future Space
Garage Features
RV Garage
Oversized Garage
Rear Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bedroom 2:

138 sq/ft width 10' 3" x depth 13' 6"

Bedroom 3:

111 sq/ft width 10' x depth 11' 2"

Breakfast Room:

129 sq/ft width 14' 2" x depth 9' 2"


550 sq/ft width 23' 5" x depth 23' 6"

Gathering Room:

191 sq/ft width 13' 9" x depth 13' 11"


105 sq/ft width 10' 3" x depth 10' 4"

Laundry Room:

72 sq/ft width 10' 4" x depth 7'

Master Bedroom:

209 sq/ft width 15' 6" x depth 13' 6"


100 sq/ft width 10' x depth 10'

Porch - Rear:

216 sq/ft width 19' x depth 11' 5"

What's Included In This Plan Set

  • The first sheet is the cover sheet which outline the Design Criteria and Construction Notes, such as general site, foundation, framing and mechanical notes
  • The second sheet is typically the front and side elevation drawn to 1/4" scale.
  • The third sheet is the rear and side elevation drawn to 1/4" scale.
  • The foundation of your choice (slab, crawl space or basement). Floor Plan 1/4" Scale
  • Detail and Section Page
  • Cabinet elevations & Roof Plan
  • Electrical Plan
  • Foundation Details
