PLAN 455-483
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

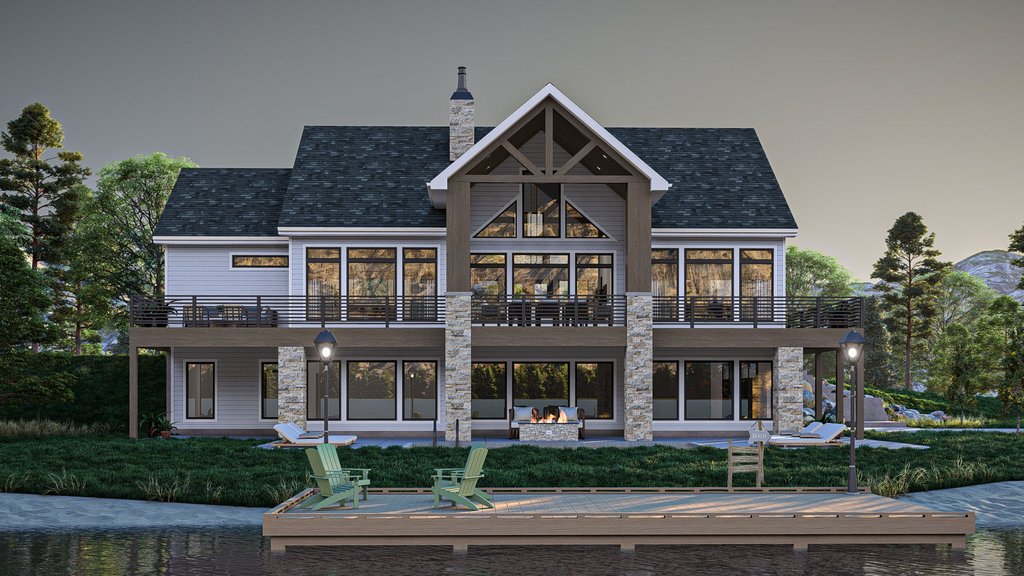

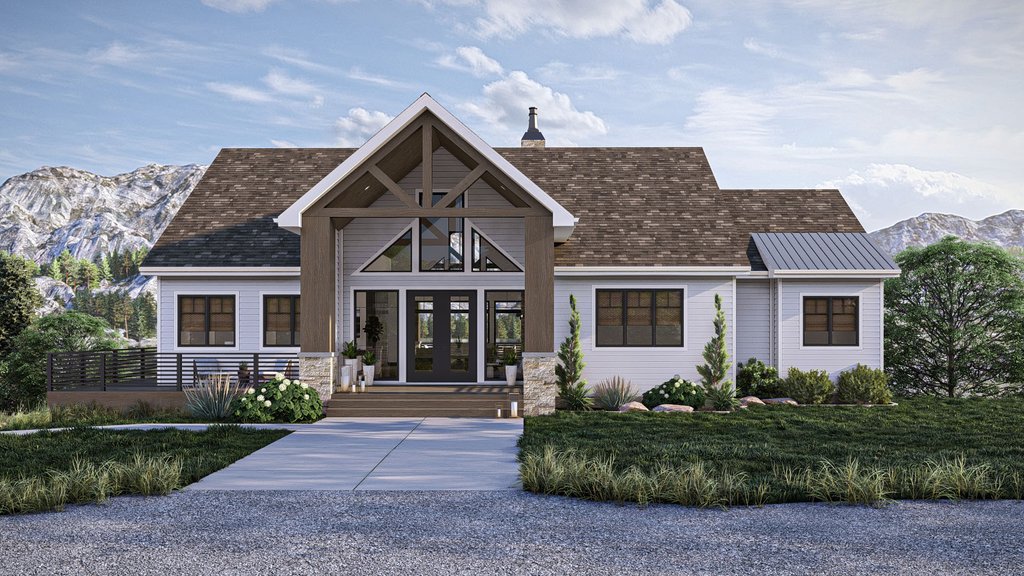

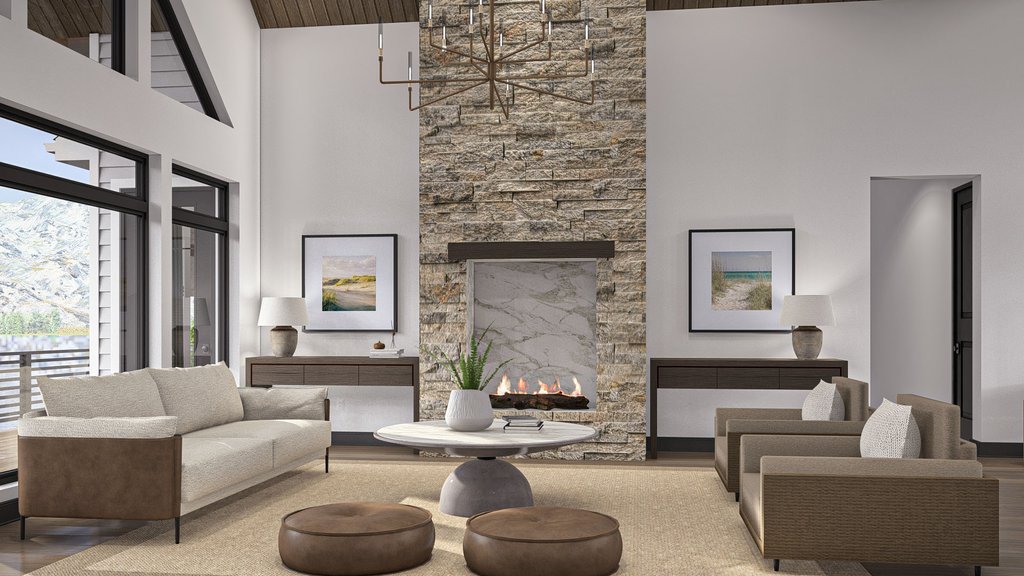

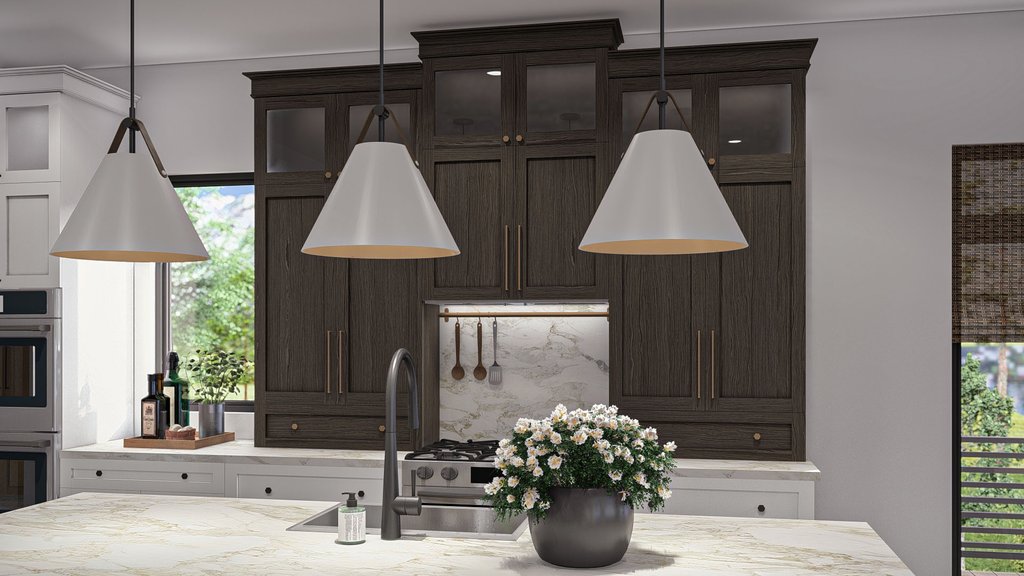

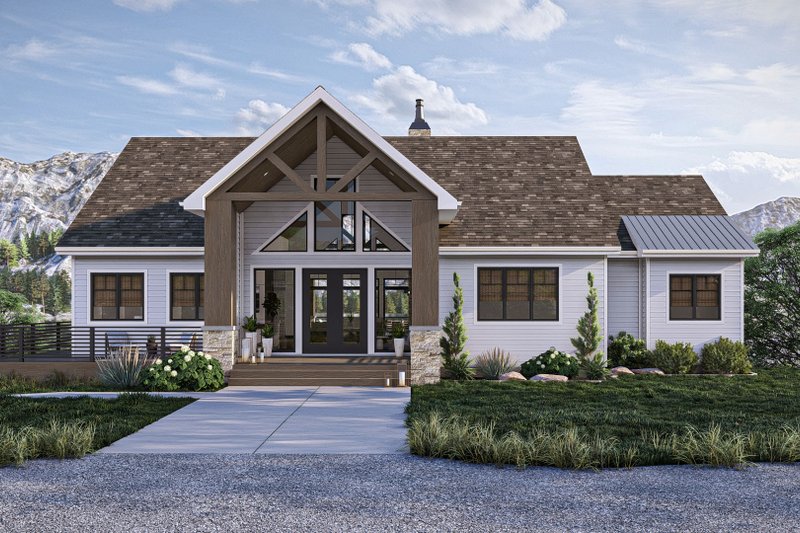

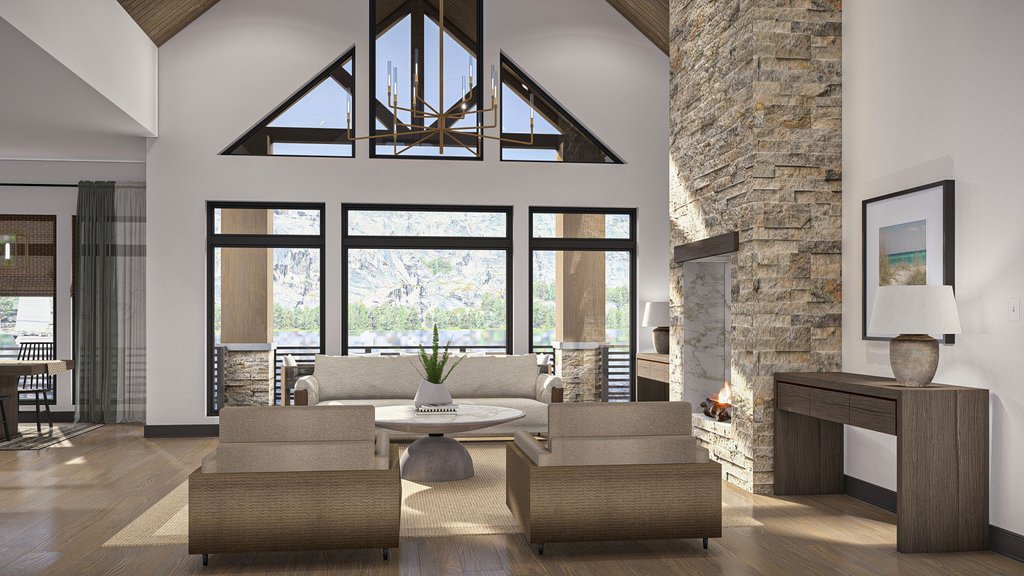

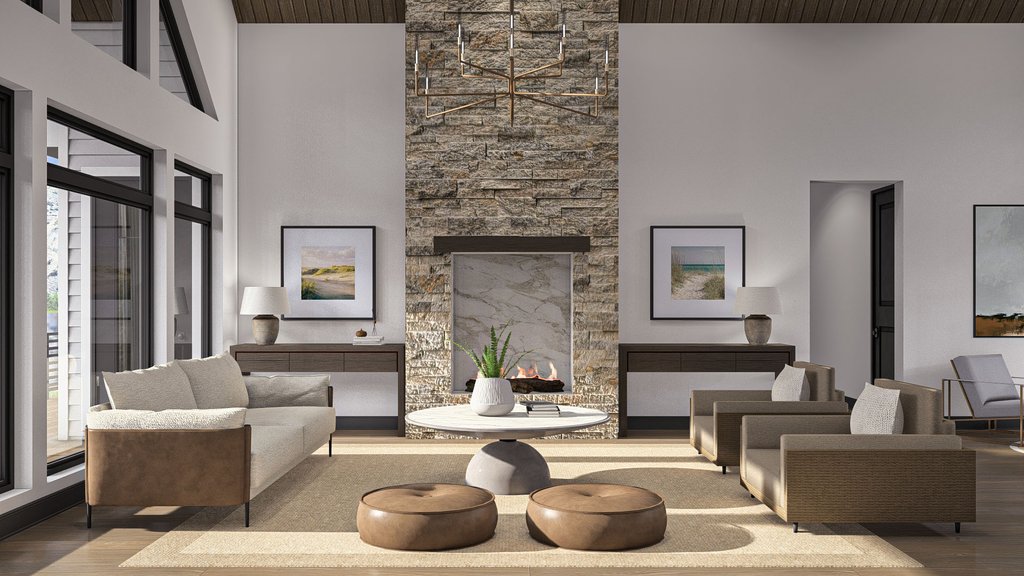

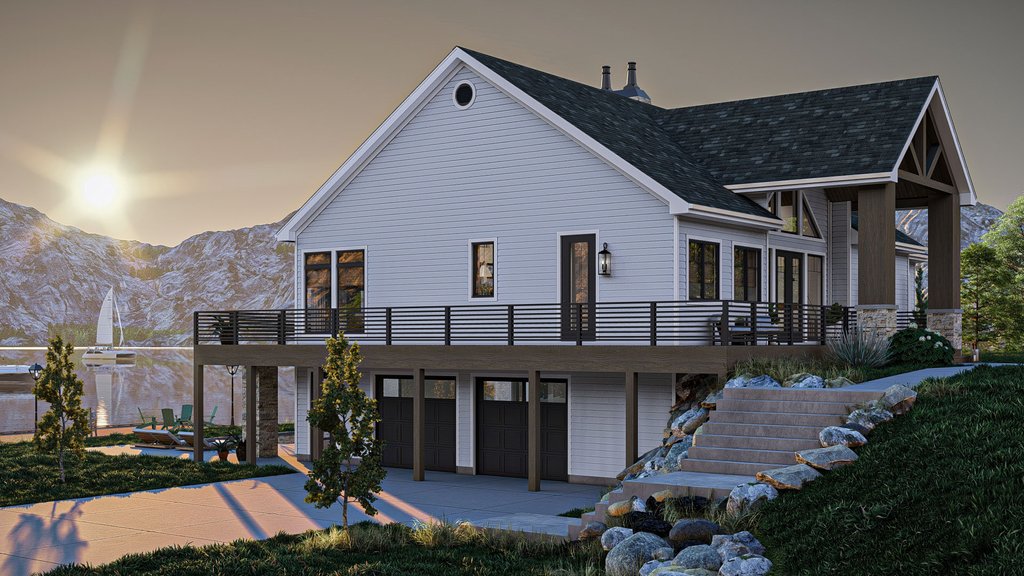

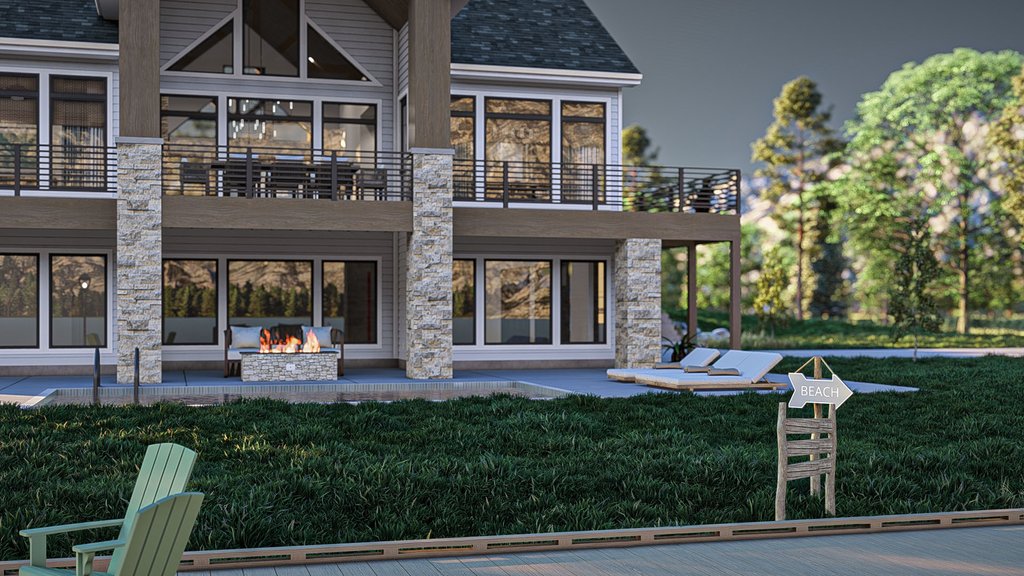

Introducing a home where tranquility meets elegance in a harmonious blend of rustic charm and contemporary comfort. Nestled amidst the serene beauty of the lakeside, this picturesque retreat offers the perfect escape from the hustle and bustle of everyday life. As you approach the home, you're greeted by the inviting presence of a large wrap-around deck, providing ample space for outdoor relaxation and breathtaking views of the surrounding landscape. Whether you're sipping your morning coffee as the sun rises over the water or enjoying a leisurely evening barbecue with friends and family, this expansive deck is sure to be a favorite gathering spot. Stepping inside, you're immediately struck by the grandeur of the cathedral ceiling, creating a sense of openness and warmth throughout the living space. Natural light floods the interior, highlighting the impeccable craftsmanship and attention to detail found in every corner of the home. The heart of the house is the spacious living area, where cozy evenings by the fireplace seamlessly transition into lively gatherings with loved ones. The open-concept design flows effortlessly into the gourmet kitchen, featuring high-end appliances, custom cabinetry, and a large center island perfect for both meal preparation and casual dining. The main suite offers a serene sanctuary, complete with a luxurious en-suite bathroom and private access to the deck, allowing you to wake up to stunning views of the lake each morning. A second bedroom and two additional bathrooms ensure ample space for guests, while a flexible floor plan offers the option for a walkout basement, ideal for a home office, recreation room, or additional living quarters. Whether you're seeking a quiet weekend retreat or a year-round residence, this house offers the perfect blend of luxury and tranquility, creating a timeless oasis where memories are made and cherished for years to come.
Floor Plans

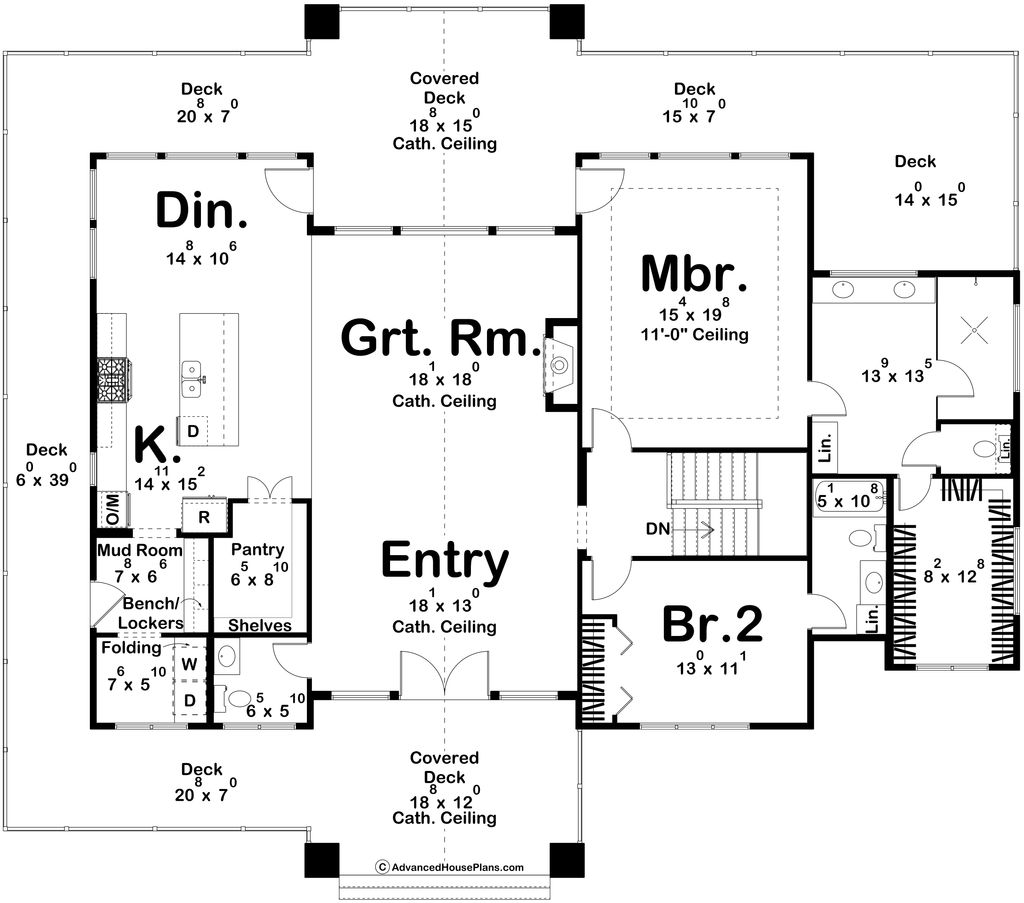

Floor Plan - Main Floor

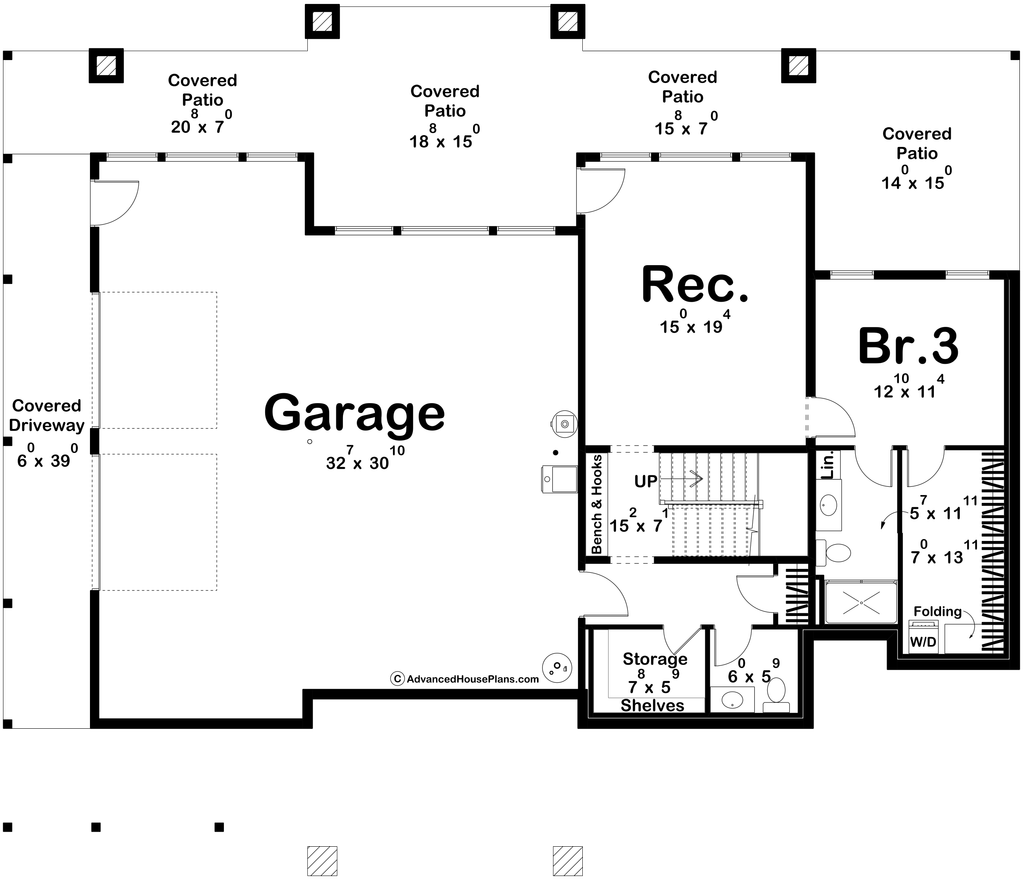

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 59'
Height : 23' 10"
Width : 69'
Area
Garage : 1139 sq/ft
Main Floor : 2148 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : The covered deck, entry, and great room feature cathedral ceilings. The master bedroom features an 11 foot tall ceiling.
Main Ceiling : 10'
Roof
Primary Pitch : 8/12
Roof Framing : Stick
Secondary Pitch : 10/12, 6/12
Exterior Wall Framing
Framing : 2x4
Bedroom Features
Main Floor Bedrooms

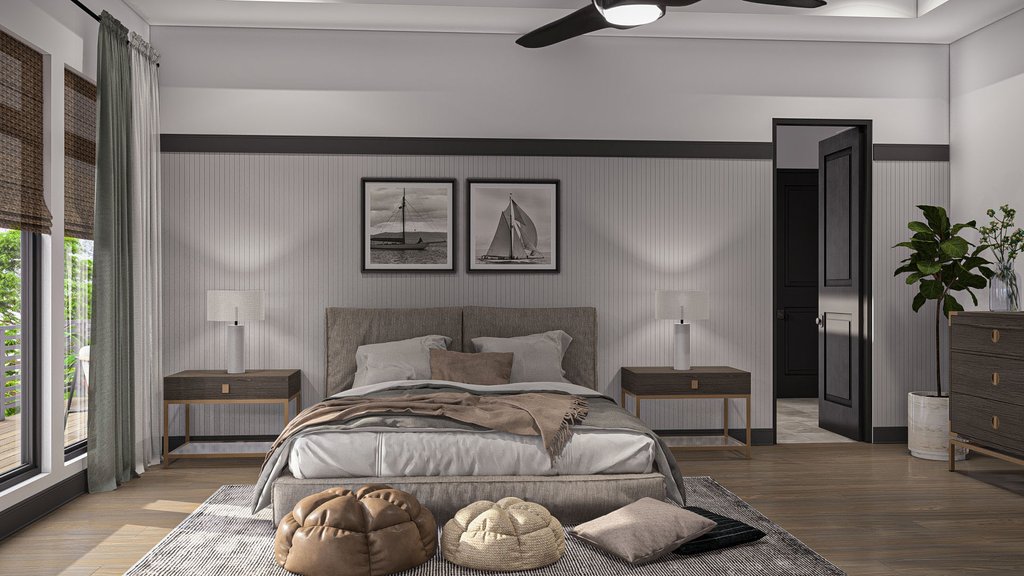

Main Floor Master Bedroom
Walk In Closet
Kitchen Features

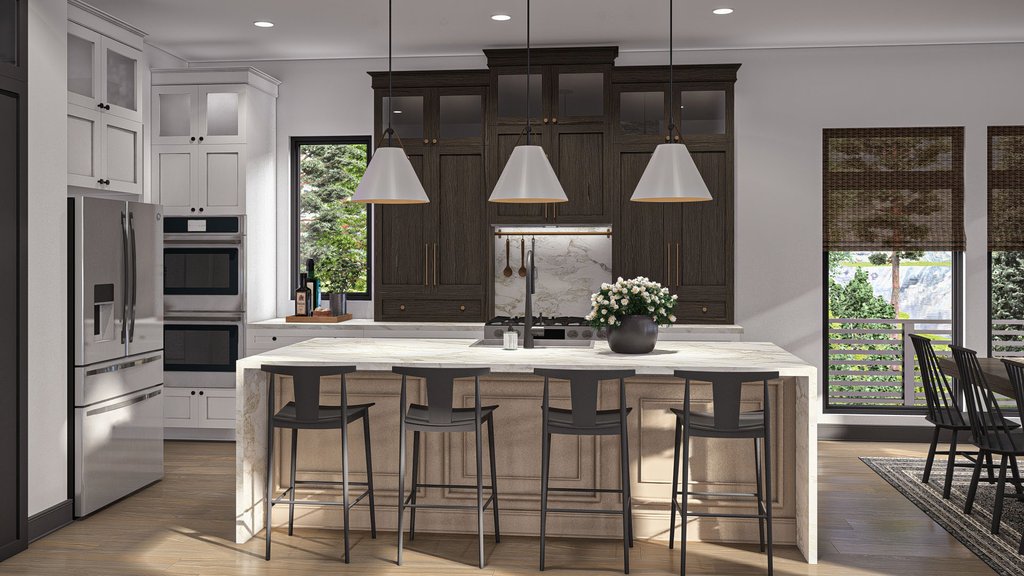

Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Garage Features
Garage Under
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Grill Deck Sundeck
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-800-447-0027
Plan Set
PDF Set:
$1599.00
$1599.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1894.00
$1894.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$2198.00
$2198.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$2598.00
$2598.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Walk Out Basement:
$0.00
$0.00
Ideal for a sloping lot, lower level with outdoor access.
Basement:
$299.00
$299.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$299.00
$299.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$299.00
$299.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$299.00
$299.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$299.00
$299.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$59.00
$59.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$299.00
$299.00
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
