PLAN 25-4314

Key Specs

2163
sq ft

3
Beds

2
Baths

2
Floors

1
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

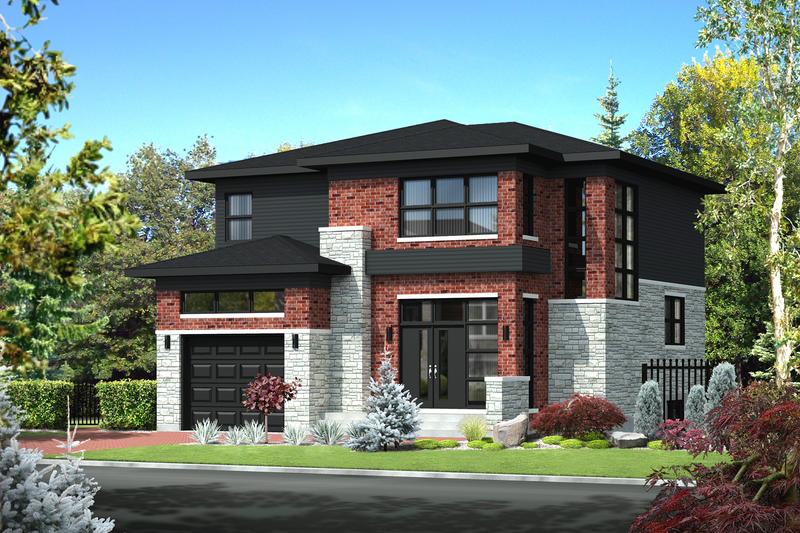

This contemporary two-storey house is 36 feet wide by 40 feet deep and provides 2,163 square feet of living space in addition to a 306 square foot one-car garage. The 994 square foot ground floor features 9-foot high ceilings. The double entrance door opens onto a large hall, which is ideal when there are young children. The space includes a powder room, an open living room with a fireplace and a dining room, as well as a kitchen with an island, large cupboards and a breakfast nook. The upper floor has 1,169 square feet of living space and features a family bathroom, a laundry room, a reading area and three bedrooms, including a master bedroom with a large walk-in closet and a private bathroom.

Floor Plans

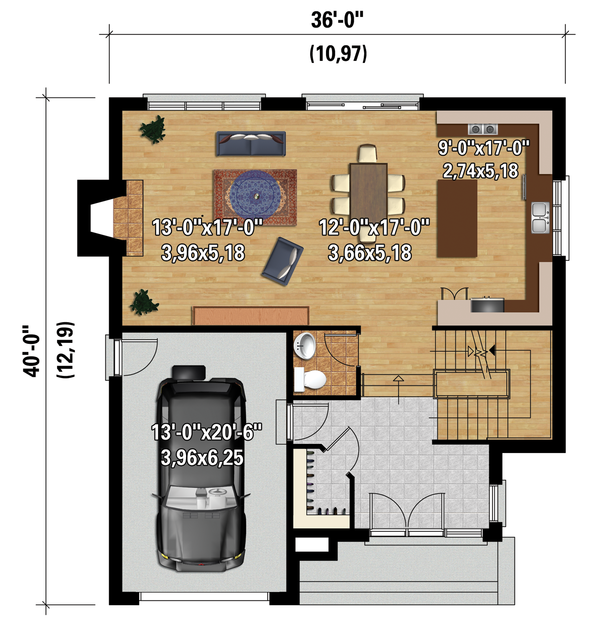

Floor Plan - Main Floor Plan

Reverse

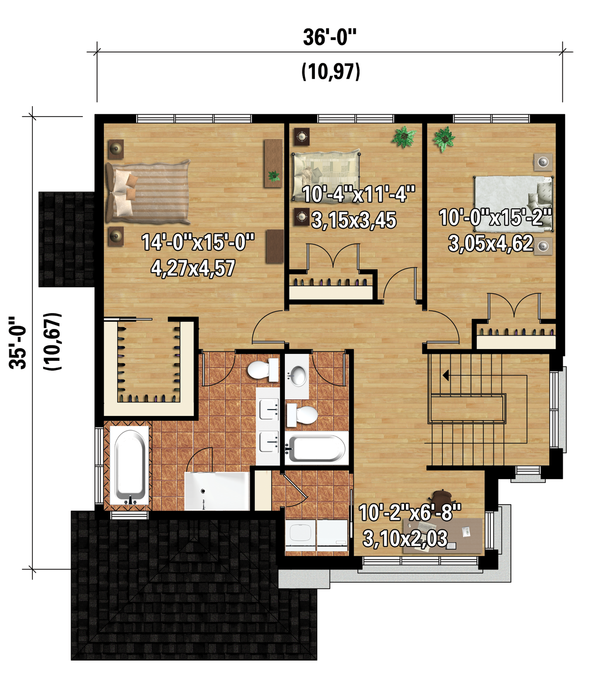

Floor Plan - Upper Floor Plan

Reverse

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features

Dimension

Depth : 40'
Height : 28' 10"
Width : 36'

Area

First Floor: 994 sq/ft height 9'
Garage: 306 sq/ft
Second Floor: 1169 sq/ft height 9'

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 4/12
Roof Framing : Truss
Roof Load : 50
Roof Type : Shingle
Secondary Pitch : 4/12

Exterior Wall Framing

Exterior Wall Finish : Brick Siding Stone
Framing : Wood - 2 x 6
Insulation : R20

What's Included In This Plan Set

Exterior elevations: Four detailed exterior elevations showing the final appearance of each side of the house.
Foundations plan: Different isometric views with dimensions as well as relevant information to build the foundations.
Floor plans: A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
Cross-section View: Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.

» See important information before purchasing.

Plan Set

5 Copy Set : $1035.00	5 printed plan sets mailed to you.
8 Copy Set : $1080.00	8 printed plan sets mailed to you.
PDF Set : $1225.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set : $1845.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Reproducible Set : $2070.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Additional Options

Additional Construction Sets : $50.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner : $19.00	This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design : $100.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Material List : $145.00	A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse : $150.00	Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
