Plan Description
This luxurious drive-under ranch is filled with today's most requested
features. The attractive brick exterior is accented with stucco gables
and quions, multi-level trim, and copper roofing returns. An exquisite
master suite, spacious secondary bedrooms, and 2 1/2 baths make this
home both comfortable and appealing.
The master suite features a tray ceiling and a bath with his & hers
vanities and a walk-in closet. A triple window unit brightens the
breakfast room and kitchen. The 14' ceiling, corner fireplace, and lot's
of glass create a magnificent family room. An 11' ceiling and large
"Palladian" style window highlight the dining room. The secondary
bedrooms measure nearly 14' x 11' and share a "Jack & Jill" bath.
Ceilings not otherwise indicated are 9' high.
Floor Plans

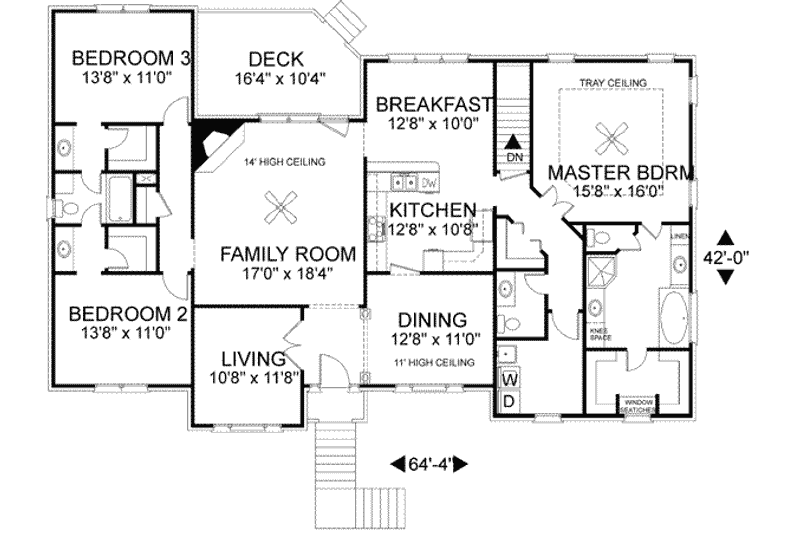

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 42'
Height : 22'
Width : 64' 4"
Area
Basement Unfinished: 1707 sq/ft
First Floor: 2197 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 9:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Unfinished Future Space
Garage Features
Garage Under
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot
More
Jack & Jill Bath
Rooms
Bedroom 2:
150 sq/ft width 13' 8" x depth 11'
Bedroom 3:
150 sq/ft width 13' 8" x depth 11'
Breakfast Room:
126 sq/ft width 12' 8" x depth 10'
Dining Room:
139 sq/ft width 12' 8" x depth 11'
Garage:
490 sq/ft width 20' x depth 24' 6"
Kitchen:
135 sq/ft width 12' 8" x depth 10' 8"
Master Bedroom:
250 sq/ft width 15' 8" x depth 16'
Utility Room:
69 sq/ft width 7' 9" x depth 9'
