PLAN 417-623

Home > Style > Mediterranean

Key Specs

2224
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Stone accents and two dormer windows add style to this home's facade. Inside, columns separate the cozy dining room from the tiled entry. A fireplace and a tray ceiling highlight the family room. Three family bedrooms sit to the right of the plan, while the master suite to the left features a private sitting area and a lavish bath.

Floor Plans

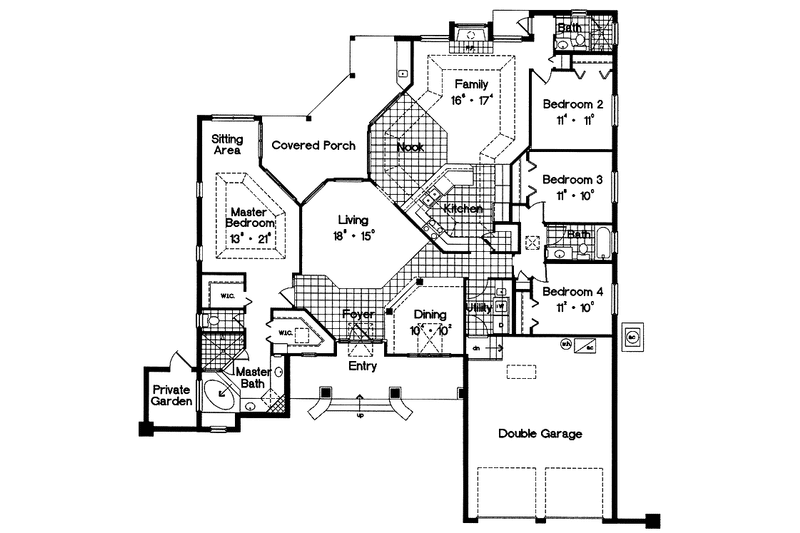

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 72'

Height : 26'

Width : 58' 6"

Area

First Floor: 2224 sq/ft height 12'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Additional Room Features

Family Room Keeping Room

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

124 sq/ft width 11' 4" x depth 11'

Bedroom 3:

116 sq/ft width 11' 8" x depth 10'

Bedroom 4:

111 sq/ft width 11' 2" x depth 10'

Breakfast Room:

170 sq/ft width 10' 8" x depth 16'

Dining Room:

105 sq/ft width 10' 4" x depth 10' 2"

Garage:

506 sq/ft width 20' x depth 25' 4"

Gathering Room:

285 sq/ft width 16' 6" x depth 17' 4"

Kitchen:

179 sq/ft width 14' 4" x depth 12' 6"

Living Room:

280 sq/ft width 18' 8" x depth 15'

Master Bathroom:

184 sq/ft width 13' x depth 14' 2"

Master Bedroom:

293 sq/ft width 13' 8" x depth 21' 6"

Master Closet:

23 sq/ft width 5' 10" x depth 4'

Utility Room:

48 sq/ft width 6' 4" x depth 7' 8"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$892.50

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1062.50

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$1190.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Single Build:
$1785.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set:
$510.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00

Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Additional Construction Sets:
$42.50

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$85.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$25.50

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
