PLAN 1017-5

Home > Style > Mediterranean

Key Specs

2259
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This 2,200+ square foot house offers four bedrooms, three full baths and ample space for living and entertaining. Bring the outdoors in with access to the lanai from the great room, fourth bedroom, and breakfast area. Retreat to the master suite after a hard day where to relax in a spacious bath with huge corner shower, dual sinks, and corner garden tub.

Floor Plans

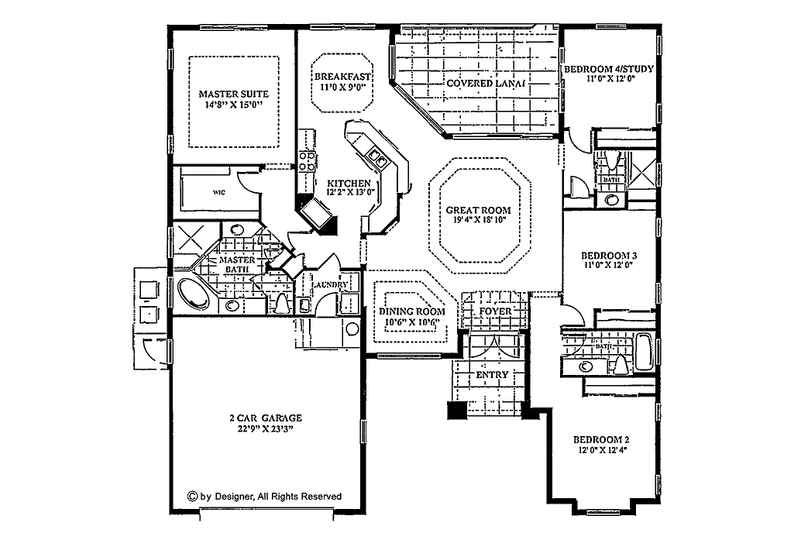

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth: 54' 4"

Height: 22'

Width: 59' 8"

Area

First Floor: 2259 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch: 6:12

Roof Framing: Truss

Roof Type: Tile

Exterior Wall Framing

Exterior Wall Finish: Stucco

Framing: Block

Bedroom Features

Formal Dining Room

Kitchen Features

Breakfast Nook

Kitchenette Wet Bar

Additional Room Features

Great Room Living Room

Main Floor Laundry

Open Floor Plan

Outdoor Spaces

Courtyard

Rooms

3rd BR Closet:

14 sq/ft width 2' x depth 7'

Bathroom 2:

55 sq/ft width 5' x depth 11'

Bathroom 3:

49 sq/ft width 7' x depth 7'

Bedroom 2:

147 sq/ft width 12' 4" x depth 12'

Bedroom 2 Closet:

14 sq/ft width 2' x depth 7'

Bedroom 3:

132 sq/ft width 12' x depth 11'

Bedroom 3 Closet:

14 sq/ft width 2' x depth 7'

Bedroom 4:

132 sq/ft width 12' x depth 11'

Breakfast Room:

122 sq/ft width 10' 10" x depth 11' 4"

Dining Room:

158 sq/ft width 14' x depth 11' 4"

Foyer:

50 sq/ft width 8' x depth 6' 4"

Garage:

528 sq/ft width 23' 4" x depth 22' 8"

Gathering Room:

364 sq/ft width 18' 10" x depth 19' 4"

Kitchen:

150 sq/ft width 12' 6" x depth 12'

Laundry Room:

40 sq/ft width 5' 4" x depth 7' 8"

Master Bathroom:

172 sq/ft width 11' 6" x depth 15'

Master Bedroom:

220 sq/ft width 15' x depth 14' 8"

Master Closet:

77 sq/ft width 7' x depth 11'

What's Included In This Plan Set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

Plans are typically drawn to ¼” scale and include:

Foundation Plan(s): Please note: This design will not come with a foundation. The foundation should be created by a local structural engineer. Foundations and structural engineering will vary from region to region across the USA and globally. Foundations depend on your soil conditions at your specific property that you want to build one of our homes. Plans from this designer do not come with foundation / structural engineering plans so it is highly recommended that you hire a local structural engineer to provide those details for you.
Floor Plan(s): Includes: Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes, Electrical Layouts, Building Section Markers, All Electrical Outlets, Fixtures, and Switching, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable).
Exterior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
Interior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
Overhead Roof Plan(s): Include: All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Wall Section(s): Detailed drawings showing wall connections, from foundation to the roof, wall connections to foundation, window installation, siding installation, stair details, and more.

Please note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

Questions? Call 1-800-447-0027

Plan Set

CAD Set:
$1100.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$1100.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00

Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Additional Construction Sets:
$90.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
