PLAN #52-178

Key Specs


2266
sq ft

4
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

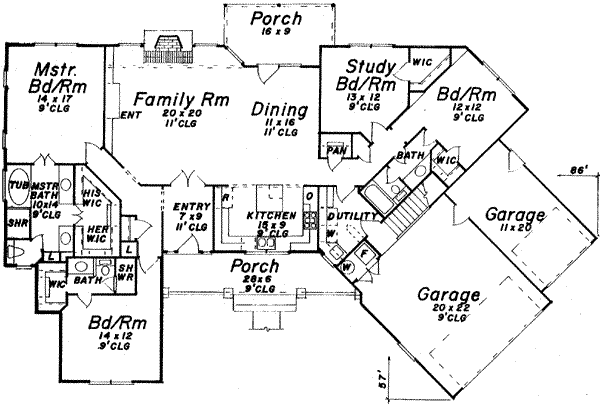

Floor Plan - Main Floor Plan

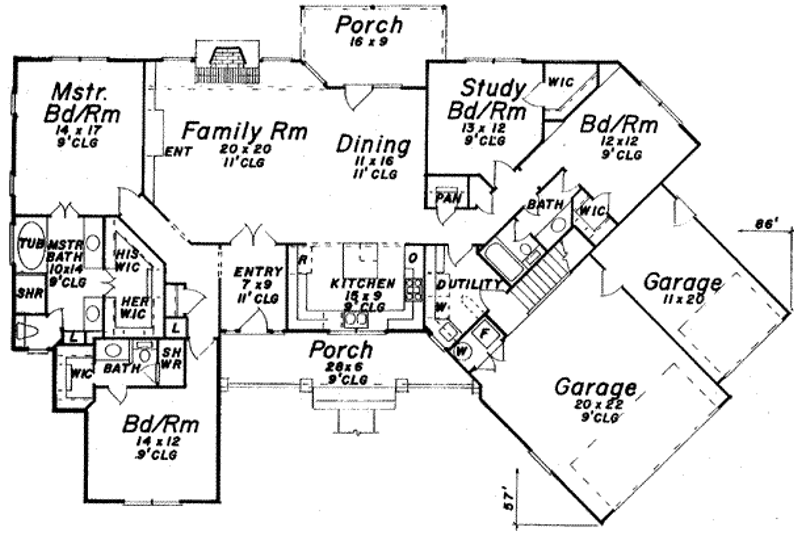

European Floor Plan - Main Floor Plan Plan #52-178

Full Specs & Features


Dimension
Depth : 57'
Height : 25'
Width : 86'
Area
First Floor: 2266 sq/ft
Roof
Primary Pitch : 10:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x6"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Bedroom 2:

168 sq/ft width 14' x depth 12'

Bedroom 3:

144 sq/ft width 12' x depth 12'

Dining Room:

176 sq/ft width 11' x depth 16'

Family Room:

400 sq/ft width 20' x depth 20'

Garage:

440 sq/ft width 20' x depth 22'

Garage Two:

220 sq/ft width 11' x depth 20'

Kitchen:

171 sq/ft width 19' x depth 9'

Master Bathroom:

140 sq/ft width 10' x depth 14'

Master Bedroom:

238 sq/ft width 14' x depth 17'

Porch - Front:

120 sq/ft width 20' x depth 6'

Porch - Rear:

144 sq/ft width 16' x depth 9'

Study:

156 sq/ft width 13' x depth 12'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$792.00
5 printed plan sets mailed to you.
PDF Set :
$935.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$935.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Single Set :
$651.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
0.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
