Key Specs
2275
sq ft
3
Beds
2
Baths
1
Floors
3
Garages
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
PLAN 70-838
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

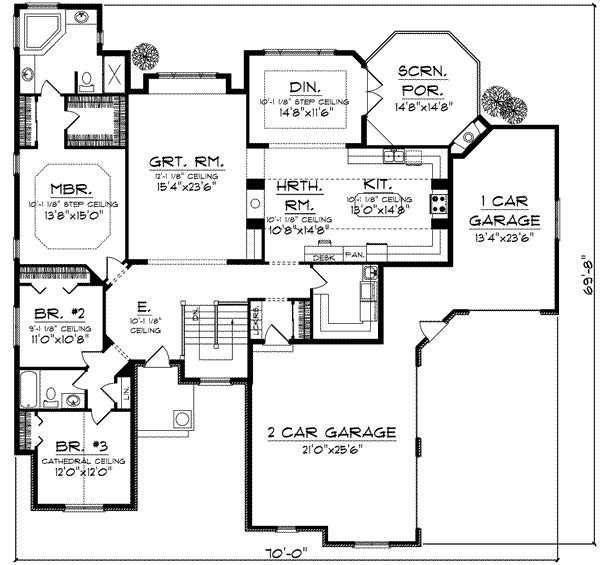

Floor Plans
Full Specs & Features
Dimension
Depth : 69' 8"
Height : 25'
Width : 70'
Area
First Floor: 2275 sq/ft
Garage: 947 sq/ft
Porch: 62 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2"x6"
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Storage Area
Sunroom
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Screened Porch
Rooms
Bathroom 2:
42 sq/ft width 8' 6" x depth 5'
Bedroom 2:
117 sq/ft width 11' x depth 10' 8"
Bedroom 2 Closet:
18 sq/ft width 9' x depth 2'
Bedroom 3:
144 sq/ft width 12' x depth 12'
Bedroom 3 Closet:
10 sq/ft width 2' x depth 5'
Breakfast Room:
215 sq/ft width 14' 8" x depth 14' 8"
Dining Room:
168 sq/ft width 14' 8" x depth 11' 6"
Front Entry:
123 sq/ft width 10' x depth 12' 4"
Garage:
535 sq/ft width 21' x depth 25' 6"
Garage Two:
313 sq/ft width 13' 4" x depth 23' 6"
Gathering Room:
360 sq/ft width 15' 4" x depth 23' 6"
Hall:
29 sq/ft width 3' 6" x depth 8' 4"
Kitchen:
190 sq/ft width 13' x depth 14' 8"
Laundry Room:
82 sq/ft width 8' 6" x depth 9' 8"
Master Bathroom:
151 sq/ft width 13' 9" x depth 11'
Master Bedroom:
205 sq/ft width 13' 8" x depth 15'
Master Closet:
12 sq/ft width 2' x depth 6' 5"
Master Closet Two:
49 sq/ft width 7' 7" x depth 6' 6"
Porch - Front:
61 sq/ft width 7' 4" x depth 8' 4"
Porch - Screened:
215 sq/ft width 14' 8" x depth 14' 8"
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$1075.00
$1124.00
$1348.00
$1348.00
$2143.00
Foundation
$0.00
$395.00
$395.00
Additional Options
$395.00
$80.00
$100.00
$39.00
$75.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
