PLAN 927-273
Key Specs
2275
sq ft
3
Beds
2.5
Baths
1
Floors
0
Garages
Cost to Build Reports Only $9.99 for a Limited Time! Use Code CTB2021
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 927-273
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description

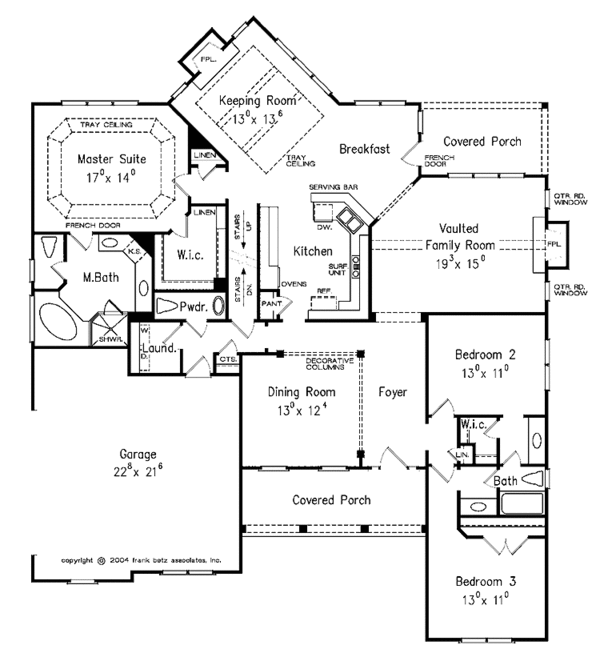

Inside this charming cottage you'll find a spacious, open floor plan that is perfect for entertaining. Fireplaces in the family room and keeping room combine to warm the adjoining kitchen and breakfast area. The practical design is ideal for family interaction. French doors lead to a covered porch, an option for outdoor dining or socializing. The master suite features tray ceilings and French-door entry into the master bath. Once inside, the master bath boasts a dual sink vanity, a garden tub, a compartmented shower and toilet, and a large walk-in closet. Two additional family bedrooms share a full bath. Upstairs houses a bonus room with a full bath and a walk-in closet. Two window seats make this a quiet retreat for a visiting guest.
Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Full Specs & Features
Dimension
Depth : 69'
Height : 28' 6"
Width : 59' 4"
Height : 28' 6"
Width : 59' 4"
Area
Basement Unfinished: 2275 sq/ft
Bonus: 407 sq/ft
First Floor: 2275 sq/ft height 9'
Garage: 547 sq/ft
Bonus: 407 sq/ft
First Floor: 2275 sq/ft height 9'
Garage: 547 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Unfinished Future Space
Vaulted / Cathedral Ceilings
Main Floor Laundry
Open Floor Plan
Unfinished Future Space
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch
More
Jack & Jill Bath
Rooms
Bedroom 2:
143 sq/ft width 13' x depth 11'
Bedroom 3:
143 sq/ft width 13' x depth 11'

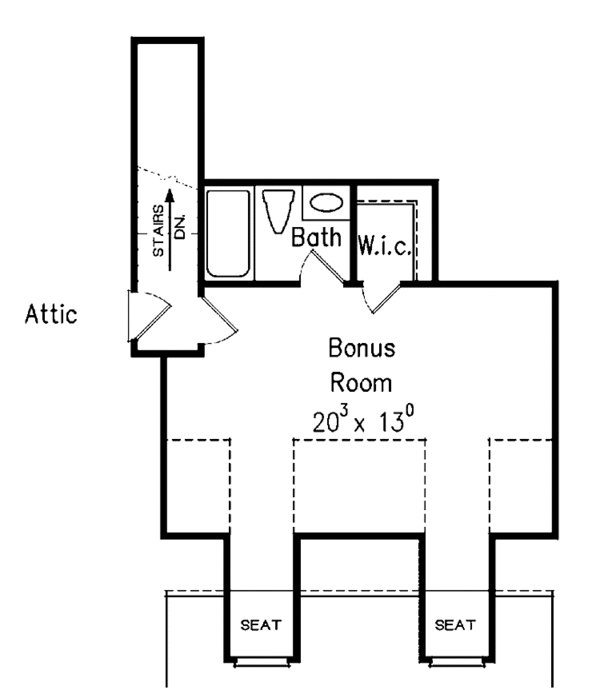

Bonus Room - Finished:
263 sq/ft width 20' 3" x depth 13'
Breakfast:
122 sq/ft width 11' 9" x depth 10' 5"
Dining Room:
160 sq/ft width 13' x depth 12' 4"
Family Room:
288 sq/ft width 19' 3" x depth 15'
Foyer:
112 sq/ft width 7' x depth 16'
Garage:
487 sq/ft width 22' 8" x depth 21' 6"
Keeping Room:
175 sq/ft width 13' x depth 13' 6"
Keeping Room:
175 sq/ft width 13' x depth 13' 6"
Kitchen:
156 sq/ft width 12' x depth 13'
Laundry Room:
31 sq/ft width 5' 6" x depth 5' 8"
Master Bathroom:
160 sq/ft width 13' x depth 12' 4"
Master Bedroom:
238 sq/ft width 17' x depth 14'
Master Closet:
72 sq/ft width 7' 10" x depth 9' 3"
Porch - Front:
140 sq/ft width 20' x depth 7'
Porch - Rear:
112 sq/ft width 14' x depth 8'
What's Included In This Plan Set
- Purchasing a CAD set, PDF set, or Reproducible set, gives you an unlimited build license. All other plan sets, allow you to build the home one time.
- All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
