Key Specs


2276
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


The great room, dining room and master bedroom all open to the covered patio that extends the width of this Southwestern home, offering plenty of space for relaxing and entertaining. The dining room is open to the kitchen with its window sink, large pantry and adjacent laundry room. From this side of the plan, a gallery leads from the powder room and study to the bedroom wing, where two secondary bedrooms share a connecting bath that has separate vanities. Opposite these bedrooms, the master suite includes a walk-in closet and a compartmented bath with a whirlpool tub. <P/><BR/>

Floor Plans

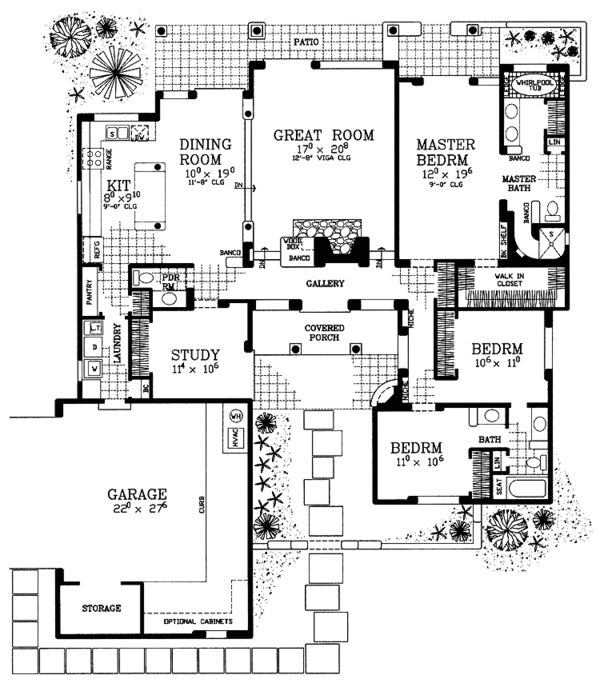

Floor Plan - Main Floor Plan
Adobe / Southwestern Floor Plan - Main Floor Plan Plan #72-1024

Full Specs & Features


Dimension
Depth : 73' 4"
Height : 15'
Width : 61' 6"
Area
First Floor: 2276 sq/ft
Garage: 668 sq/ft
Porch: 100 sq/ft
Roof
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

PDF Set :
$903.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1008.00
5 printed plan sets mailed to you.
8 Copy Set :
$1113.00
8 printed plan sets mailed to you.
Reproducible Set :
$1113.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1806.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$275.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$275.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
$275.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Material List :
85.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
175.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.95
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
