PLAN 927-328

Key Specs

2289
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

A stunning brick facade with classy Colonial touches conceals a smart interior. Maximum privacy is achieved by counterposing the luscious master suite and the twin bedrooms in opposite corners of the home. The intervening space is filled by a formal dining room and vaulted great room, both set off by stately columns, as well as a spacious kitchen, breakfast nook, and cozy keeping room. Fireplaces bring warmth to the great room and the keeping room, while a series of windows along the back walls of these rooms fill them with natural light.

Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.

Floor Plans

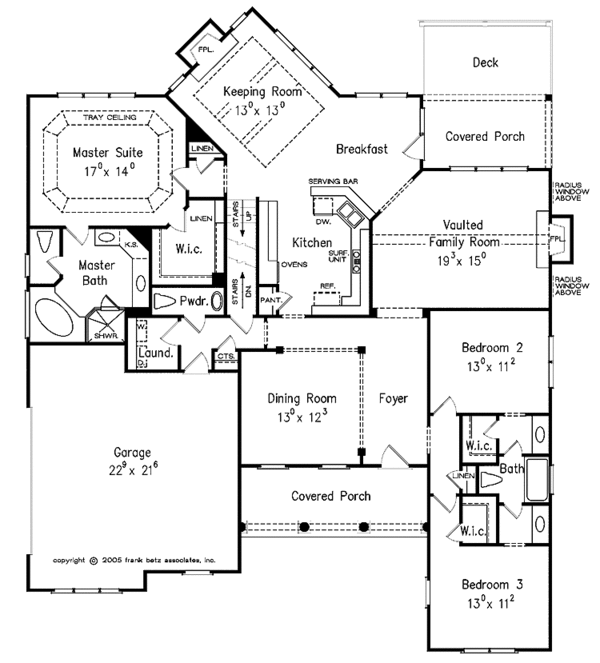

Floor Plan - Main Floor Plan

Reverse

Traditional Floor Plan - Main Floor Plan Plan #927-328

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

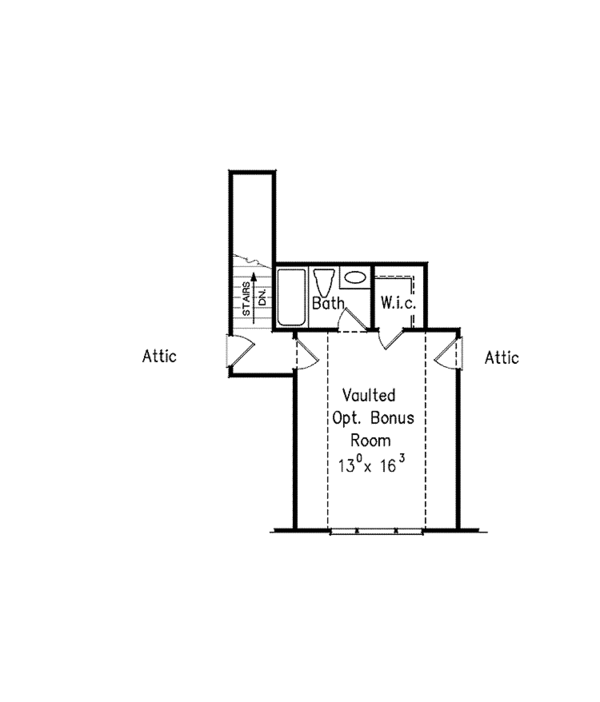

Floor Plan - Other Floor Plan

Reverse

Traditional Floor Plan - Other Floor Plan Plan #927-328

Full Specs & Features

Dimension

Depth : 70'
Height : 28'
Width : 57'

Area

Bonus: 311 sq/ft
First Floor: 2289 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick
Framing : Wood - 2x4

Bedroom Features

Fireplace
Formal Dining Room
Split Bedrooms

Additional Room Features

Family Room Keeping Room
Main Floor Laundry
Unfinished Future Space

Rooms

Bedroom 2:

145 sq/ft width 13' x depth 11' 2"

Bedroom 3:

145 sq/ft width 13' x depth 11' 2"

Bonus Room - Finished:

208 sq/ft width 13' x depth 16'

Breakfast Room:

119 sq/ft width 11' 6" x depth 10' 5"

Dining Room:

159 sq/ft width 13' x depth 12' 3"

Family Room:

288 sq/ft width 19' 3" x depth 15'

Foyer:

84 sq/ft width 7' x depth 12'

Garage:

489 sq/ft width 22' 9" x depth 21' 6"

Keeping Room:

169 sq/ft width 13' x depth 13'

Kitchen:

159 sq/ft width 12' x depth 13' 3"

Laundry Room:

31 sq/ft width 5' 6" x depth 5' 8"

Master Bathroom:

160 sq/ft width 13' x depth 12' 4"

Master Bedroom:

238 sq/ft width 17' x depth 14'

Master Closet:

71 sq/ft width 7' 10" x depth 9' 2"

What's Included In This Plan Set

See a sample plan set

Purchasing a CAD set, PDF set, or Reproducible set, gives you an unlimited build license. All other plan sets, allow you to build the home one time.
All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
