PLAN #927-418

Key Specs


2336
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Steep gables and a wide front porch are just two exterior features that are immediately noticed. A classic mixture of sidings, dark painted window sashes and tapered columns on masonry bases complete the façade. The Castle Rock is modern one story living at its best. The main floor is anchored by a large family room with a vaulted ceiling and a chef’s kitchen with a large island. The sleeping spaces are separated for privacy and quiet. The master suite features a beamed ceiling and takes advantage of views facing the rear. The master bath is the perfect place for a soaking bath after a long day. There are three or four secondary bedrooms each with access to a bath. The fourth bedroom can be used as a home office or library if need be. There is an optional bonus room above the garage for extra storage or recreation.

Floor Plans

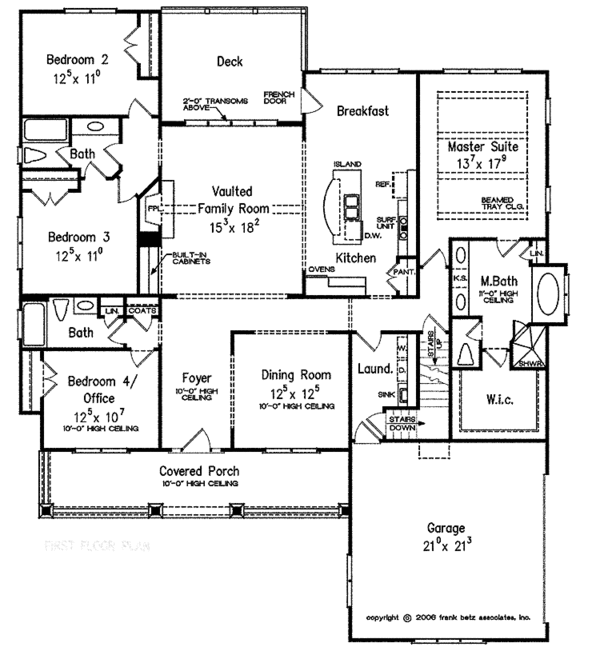

Floor Plan - Main Floor Plan
Bungalow Floor Plan - Main Floor Plan Plan #927-418

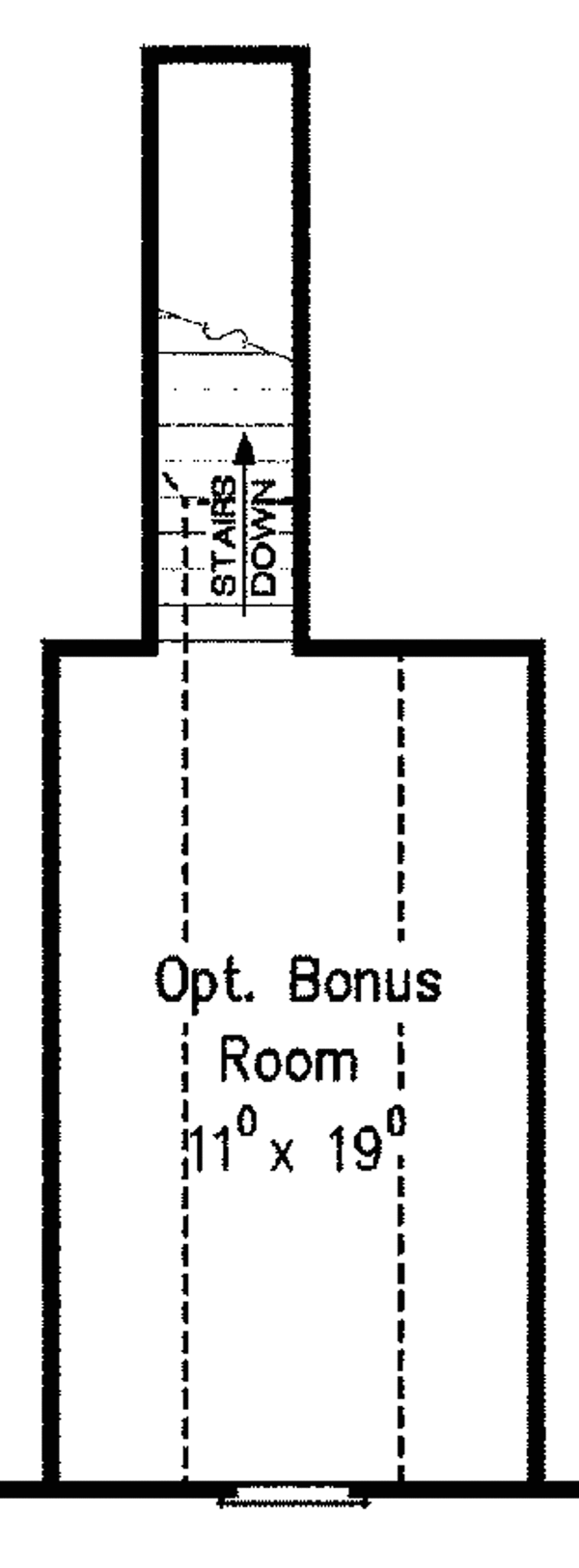

Floor Plan - Other Floor Plan
Bungalow Floor Plan - Other Floor Plan Plan #927-418

Full Specs & Features


Dimension
Depth : 68'
Height : 28'
Width : 59'
Area
Basement Unfinished: 2336 sq/ft
Bonus: 227 sq/ft
First Floor: 2336 sq/ft height 9'
Garage: 447 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 10:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Fireplace
Formal Dining Room
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Rooms

Bedroom 2:

136 sq/ft width 12' 5" x depth 11'

Bedroom 3:

136 sq/ft width 12' 5" x depth 11'

Bedroom 4:

131 sq/ft width 12' 5" x depth 10' 7"

Bedroom/Bonus Room:

209 sq/ft width 11' x depth 19'

Breakfast:

126 sq/ft width 12' x depth 10' 6"

Dining Room:

154 sq/ft width 12' 5" x depth 12' 5"

Family Room:

277 sq/ft width 15' 3" x depth 18' 2"

Foyer:

121 sq/ft width 7' 6" x depth 16' 3"

Garage:

446 sq/ft width 21' x depth 21' 3"

Kitchen:

162 sq/ft width 12' x depth 13' 6"

Laundry Room:

54 sq/ft width 7' x depth 7' 10"

Master Bathroom:

140 sq/ft width 12' x depth 11' 8"

Master Bedroom:

241 sq/ft width 13' 7" x depth 17' 9"

Master Closet:

75 sq/ft width 10' x depth 7' 6"

Porch - Front:

width 33' x depth 7'

What's Included In This Plan Set


  • Purchasing a CAD set, PDF set, or Reproducible set, gives you an unlimited build license. All other plan sets, allow you to build the home one time.
  • All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
  • Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
  • Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
  • The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
  • Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
  • The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
  • The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
  • Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
