PLAN #70-988

Key Specs


2344
sq ft

4
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

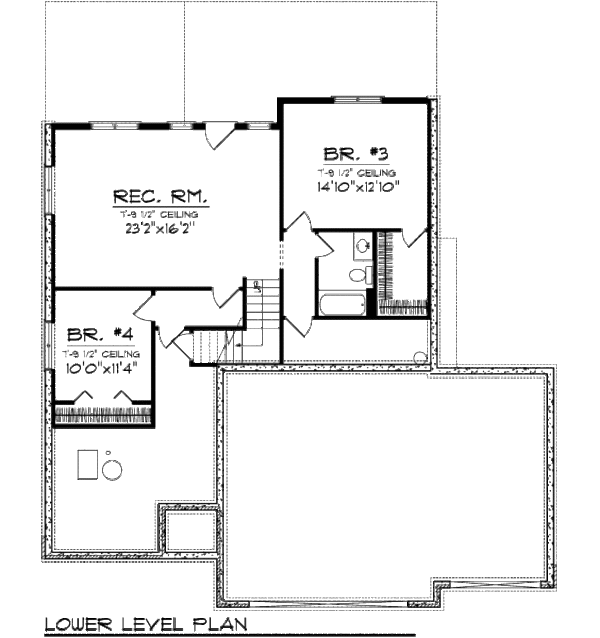

Floor Plan - Lower Floor Plan
Floor Plan - Lower Floor Plan

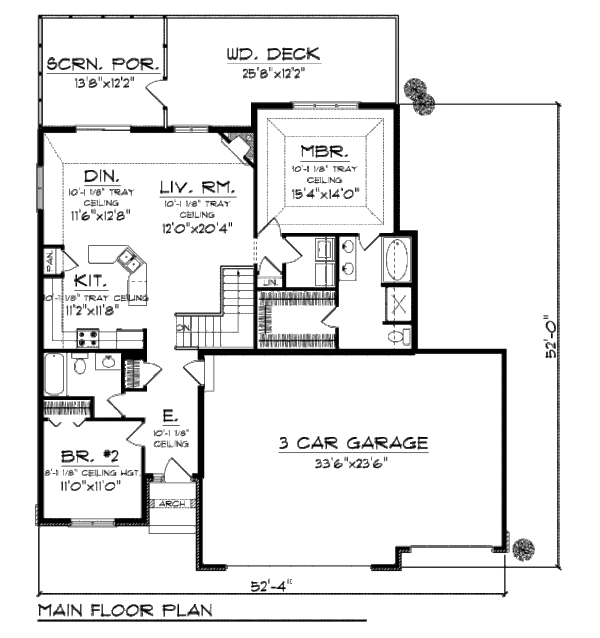

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

Full Specs & Features


Dimension Depth : 52'
Height : 21'
Width : 52'
Area Garage : 794 sq/ft
Lower Floor : 935 sq/ft
Main Floor : 1409 sq/ft
Ceiling Lower Ceiling : 8'
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Roof Roof Framing : Truss
Roof Load : 47 psf
Primary Pitch : 6:12
Secondary Pitch : 8:12
Exterior Wall Framing Insulation : Exterior R-19, Ceiling R-38
Exterior Wall Finish : Shake, Stone
Framing : 2"x6"
Bedroom Features Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features Breakfast Nook
Peninsula Eating Bar
Additional Room Features Hobby Rec Room Game Room
Storage Area
Garage Features Oversized Garage
Lot Characteristics Suited For Corner Lot
Outdoor Spaces Covered Front Porch
Grill Deck Sundeck
Screened Porch Sunroom

What's Included In This Plan Set


Ahmann Design

  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.
Plan Set
5 Copy Set :
$912.00
5 printed plan sets mailed to you.
8 Copy Set :
$953.00
8 printed plan sets mailed to you.
PDF Set :
$1145.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1145.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1816.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.
Crawlspace:
$295.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$295.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse :
295.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
