This home boasts great curb appeal with its Mediterranean influences--glass block and muntin windows, decorative oval window, impressive pillars and a stucco facade. The family side of this home abounds with thoughtful design features, like the island in the kitchen, the media/fireplace wall in the family room and the mitered glass breakfast nook. A dramatic arched entry into the master suite leads to a gently curving wall of glass block, a double vanity, extra large shower, compartmented toilet and large walk-in closet. Also special is the design of the three secondary bedrooms, which share private bath facilities.

Floor Plans

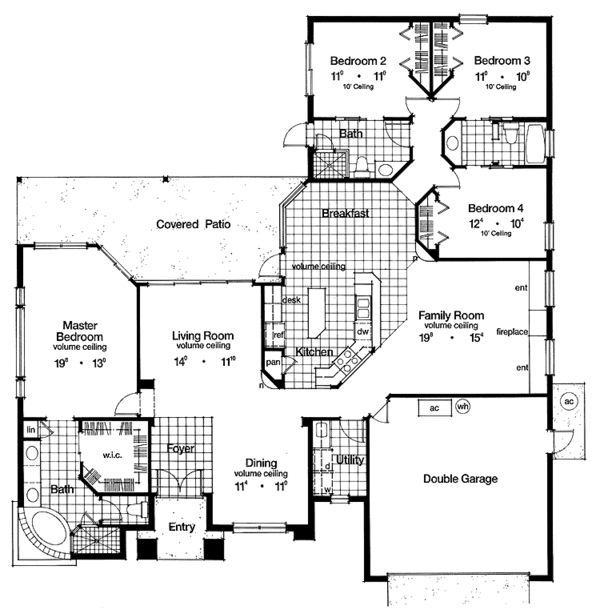

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #417-715

Full Specs & Features

Depth : 65'
Height : 22'
Width : 61' 4"
First Floor: 2348 sq/ft height 10'
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Storage Area
Outdoor Spaces

Bedroom 2:

121 sq/ft width 11' x depth 11'

Bedroom 3:

110 sq/ft width 11' x depth 10'

Bedroom 4:

127 sq/ft width 12' 4" x depth 10' 4"

Breakfast Room:

112 sq/ft width 10' 11" x depth 10' 4"

Dining Room:

124 sq/ft width 11' 4" x depth 11'

Family Room:

301 sq/ft width 19' 8" x depth 15' 4"


53 sq/ft width 7' x depth 7' 8"


416 sq/ft width 20' 4" x depth 20' 6"


157 sq/ft width 13' 4" x depth 11' 10"

Living Room:

165 sq/ft width 14' x depth 11' 10"

Master Bedroom:

255 sq/ft width 19' 8" x depth 13'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for level lot, single layer concrete poured directly on grade.
