Key Specs
2367
sq ft
3
Beds
2.5
Baths
2
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 72-695
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

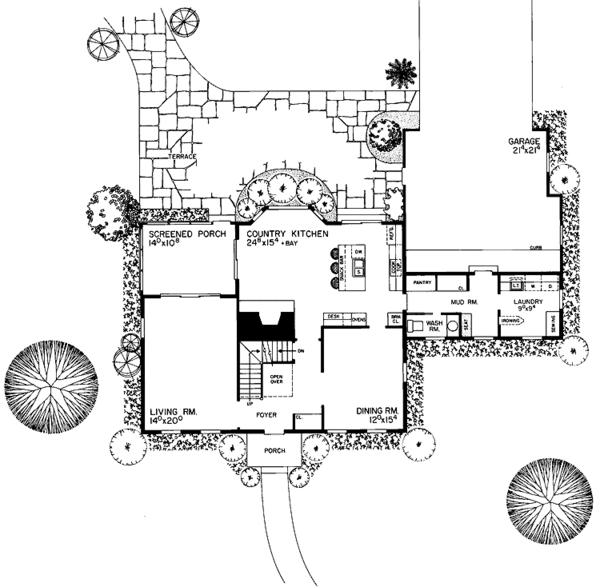

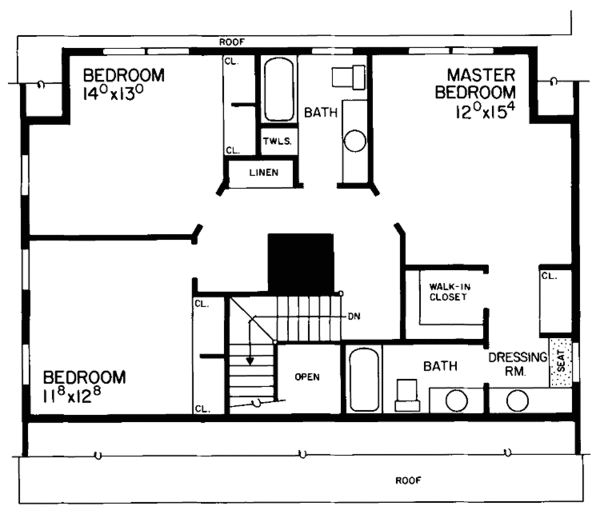

Floor Plans
Full Specs & Features
Dimension
Depth : 46'
Height : 25'
Width : 63' 8"
Area
First Floor: 1385 sq/ft height 9'
Second Floor: 982 sq/ft
Roof
Primary Pitch : 6:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Breakfast Nook
Additional Room Features
Den Office Study Computer
Main Floor Laundry
Open Floor Plan
Storage Area
Sunroom
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Screened Porch
Rooms
3rd BR Closet:
15 sq/ft width 2' 1" x depth 7' 6"
Basement Foundation:
1280 sq/ft width 40' x depth 32'
Bedroom 2:
147 sq/ft width 11' 8" x depth 12' 8"
Bedroom 2 Closet:
17 sq/ft width 2' 1" x depth 8' 7"
Bedroom 3:
182 sq/ft width 14' x depth 13'
Bedroom 3 Closet:
17 sq/ft width 2' 1" x depth 8' 7"
Dining Room:
183 sq/ft width 12' x depth 15' 4"
Foyer:
80 sq/ft width 8' x depth 10'
Garage:
455 sq/ft width 21' 4" x depth 21' 4"
Hall Bathroom:
69 sq/ft width 7' 6" x depth 9' 4"
Kitchen:
378 sq/ft width 24' 8" x depth 15' 4"
Laundry Room:
83 sq/ft width 9' x depth 9' 4"
Living Room:
280 sq/ft width 14' x depth 20'
Master Bedroom:
183 sq/ft width 12' x depth 15' 4"
Master Closet:
28 sq/ft width 5' 8" x depth 5'
Porch - Front:
40 sq/ft width 8' x depth 5'
Porch - Rear:
149 sq/ft width 14' x depth 10' 8"
Wash Room:
28 sq/ft width 3' 7" x depth 8'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1013.17
$1130.98
$1248.79
Foundation
$0.00
$233.75
$233.75
$233.75
Framing
$0.00
Additional Options
$165.75
$51.00
$420.75
$127.50
$250.75
$33.15
$127.50
$72.25
$0.00
$845.75
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
