PLAN #410-200

Key Specs


2412
sq ft

3
Beds

3
Baths

2
Floors

0
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

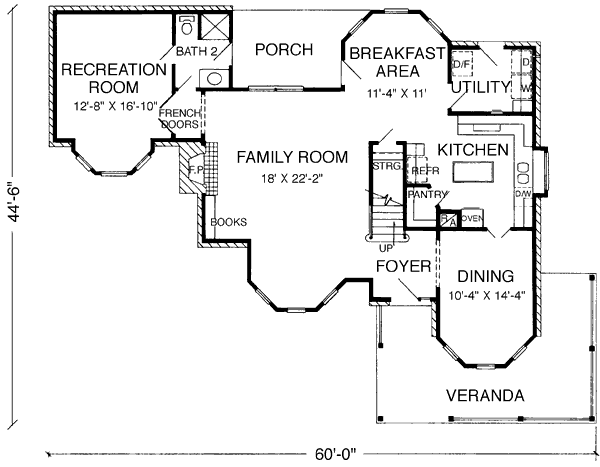

Floor Plan - Main Floor Plan
Victorian Floor Plan - Main Floor Plan Plan #410-200

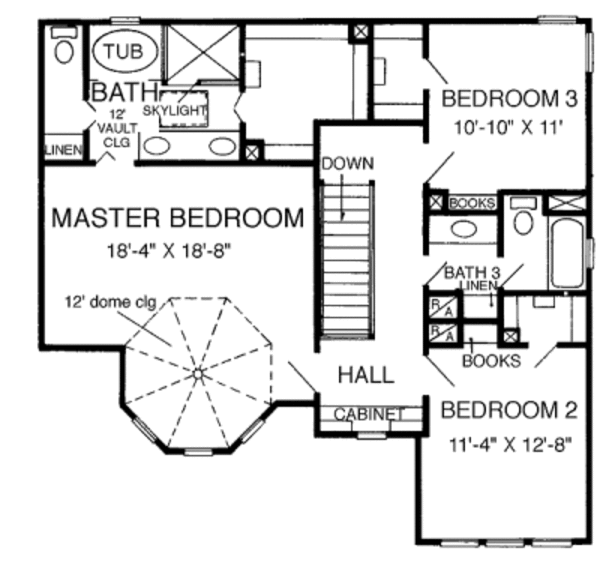

Floor Plan - Upper Floor Plan
Victorian Floor Plan - Upper Floor Plan Plan #410-200

Full Specs & Features


Dimension
Depth : 45'
Height : 32'
Width : 60'
Area
First Floor: 1326 sq/ft height 8'
Second Floor: 1086 sq/ft height 8'
Exterior Wall Framing
Framing : 2"x4"
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Hobby Rec Room Game Room
Master Sitting Area
Storage Area
Entryway
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
$777.00
5 printed plan sets mailed to you.
8 Copy Set :
$883.00
8 printed plan sets mailed to you.
Reproducible Set :
$1055.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Single Set :
$550.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
