PLAN 927-977
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description

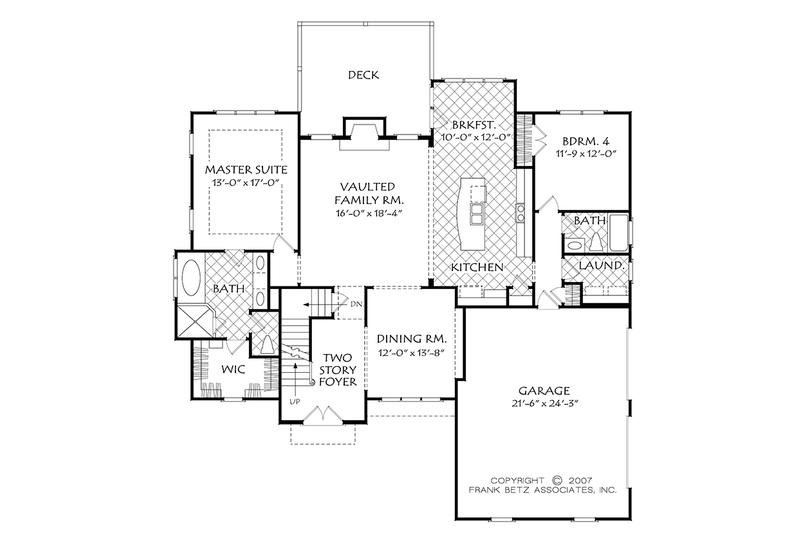

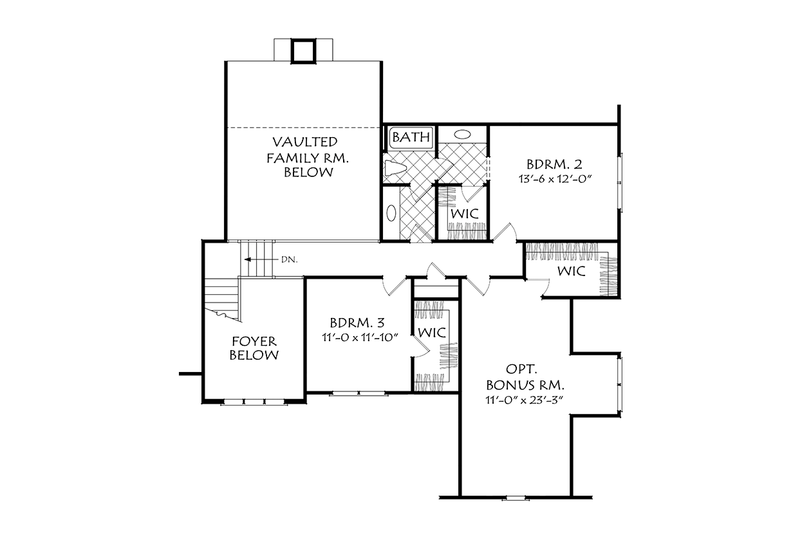

The swooped fascia, half-round vent and diamond patterned windows help you step into a European fantasy with this Tudor style plan. With a copper front porch canopy that will slowly age to a perfect patina, the house will only increase in curb appeal. Inside, the main level is a combination of informal and formal living space with a centrally located vaulted great room and large open kitchen. Guests can gather in the dining room for more formal entertaining. The first floor master suite is situated to the rear for privacy. There is also an additional bedroom four on the main level that is perfect for use as an office or in-law suite. Climb the stairs to the second floor with two more bedrooms, each with large closet space and access to a shared bath. Over the garage, the bonus area is a perfect for storage or future expansion.
Full Specs & Features
Dimension
Depth : 55'
Height : 31'
Width : 57'
Height : 31'
Width : 57'
Area
Basement Unfinished: 1789 sq/ft
Bonus: 357 sq/ft
First Floor: 1789 sq/ft
Garage: 571 sq/ft
Second Floor: 624 sq/ft
Bonus: 357 sq/ft
First Floor: 1789 sq/ft
Garage: 571 sq/ft
Second Floor: 624 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Unfinished Future Space
Vaulted / Cathedral Ceilings
Main Floor Laundry
Open Floor Plan
Unfinished Future Space
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Deck
Deck
More
Jack & Jill Bath
Rooms
Bedroom 2:
162 sq/ft width 13' 6" x depth 12'
Bedroom 3:
130 sq/ft width 11' x depth 11' 10"
Bedroom 4:
141 sq/ft width 11' 9" x depth 12'
Breakfast:
120 sq/ft width 10' x depth 12'
Dining Room:
164 sq/ft width 12' x depth 13' 8"
Family Room:
293 sq/ft width 16' x depth 18' 4"
Garage:
571 sq/ft width 21' 6" x depth 24' 3"
Master Suite:
221 sq/ft width 13' x depth 17'
Optional Bonus Room:
357 sq/ft width 11' x depth 23' 3"
What's Included In This Plan Set
- Purchasing a CAD set, PDF set, or Reproducible set, gives you an unlimited build license. All other plan sets, allow you to build the home one time.
- All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
Questions? Call 1-800-447-0027
