PLAN #1058-45

Key Specs


2414
sq ft

4
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

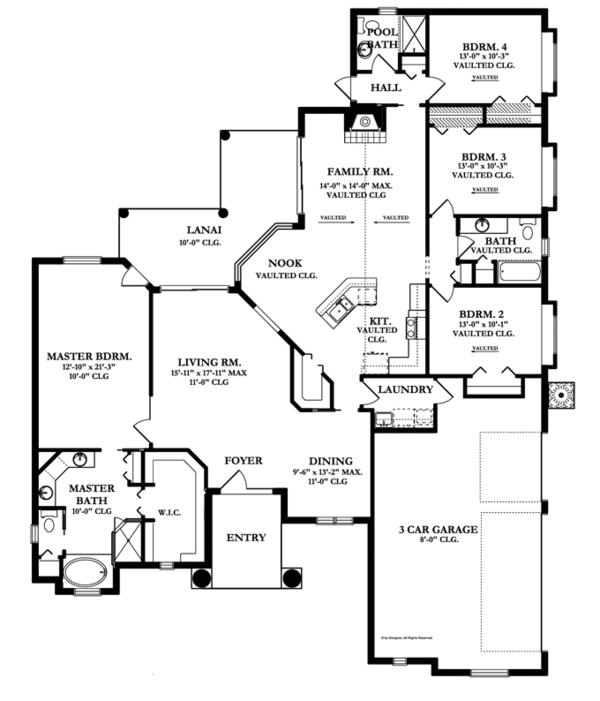

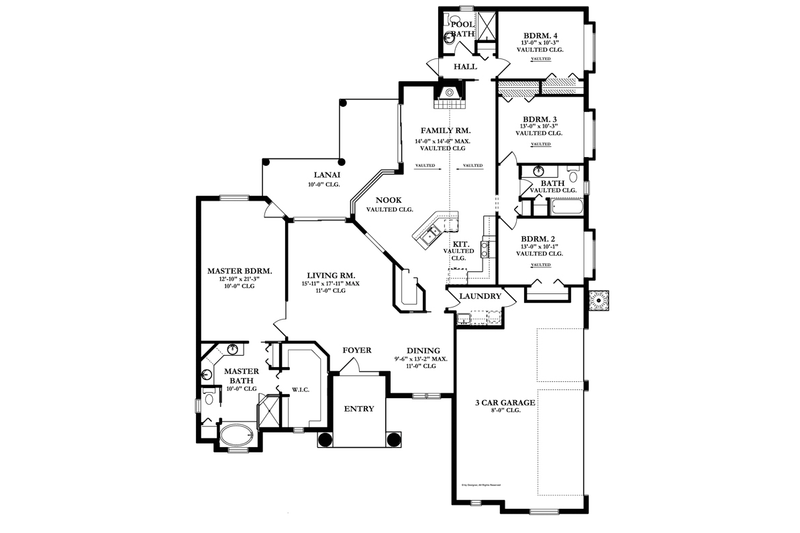

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #1058-45

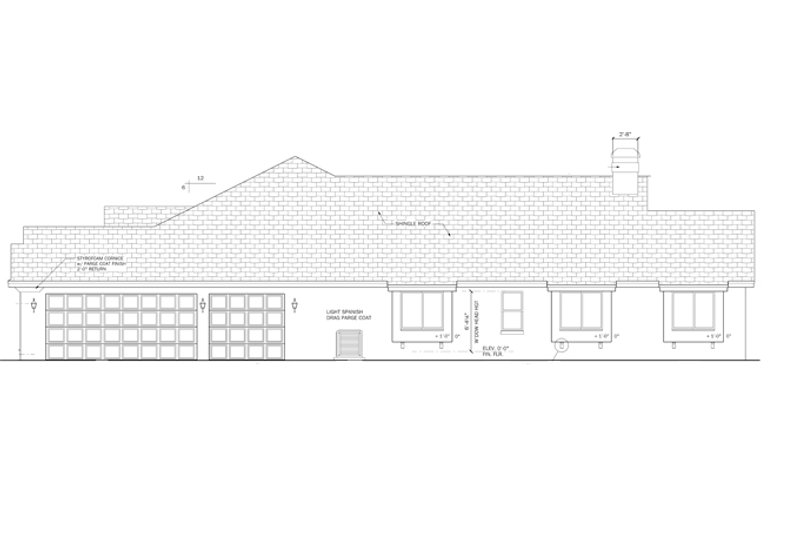

Floor Plan - Other Floor Plan
Mediterranean Floor Plan - Other Floor Plan Plan #1058-45

Full Specs & Features


Dimension
Depth : 76' 8"
Height : 20' 10"
Width : 56' 4"
Area
First Floor: 2414 sq/ft
Garage: 624 sq/ft height 8'
Patio: 208 sq/ft height 10'
Roof
Roof Framing : Truss
Primary Pitch : 6:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Courtyard
Covered Rear Porch
Rooms

Bedroom 2:

width 13' x depth 10' 1"

Bedroom 3:

width 13' x depth 10' 3"

Bedroom4:

width 13' x depth 10' 3"

Dining Room:

width 9' 6" x depth 13' 2"

Entry Porch:

89 sq/ft

Family Room:

width 14' x depth 14'

Garage:

624 sq/ft

Lanai:

208 sq/ft

Living Room:

width 15' 11" x depth 17' 11"

Master Bedroom:

width 12' 10" x depth 21' 3"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

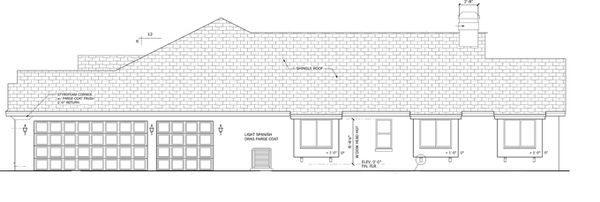

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
