PLAN #51-617

Key Specs


2419
sq ft

3
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

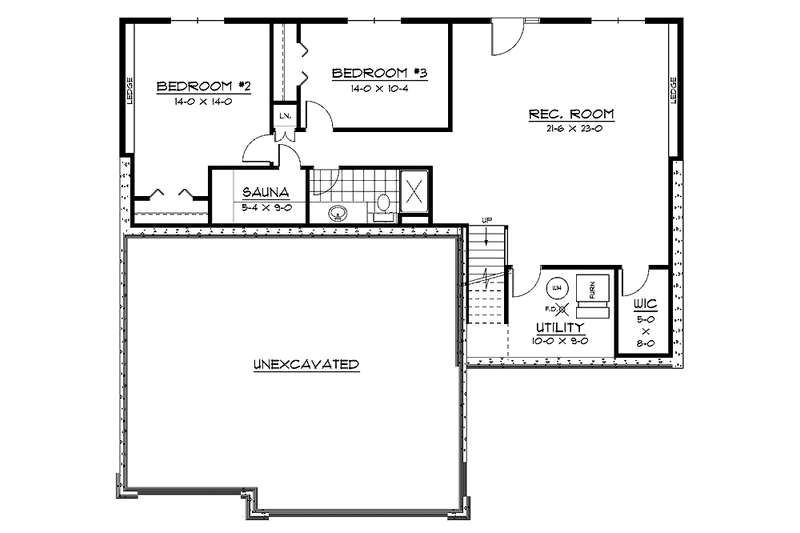

Floor Plan - Lower Floor Plan
European Floor Plan - Lower Floor Plan Plan #51-617

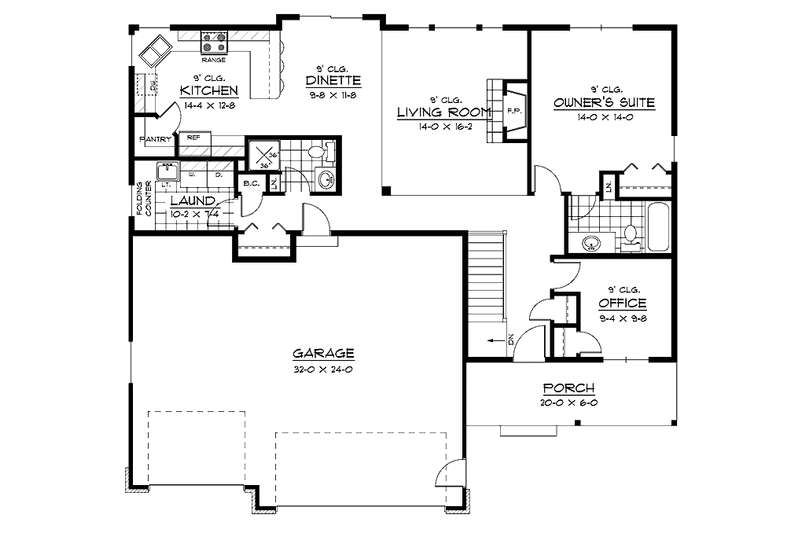

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #51-617

Full Specs & Features


Dimension
Depth : 46'
Height : 20'
Width : 52'
Area
Basement Living: 1110 sq/ft height 8'
Basement Unfinished: 199 sq/ft
First Floor: 1309 sq/ft height 9'
Garage: 808 sq/ft
Bedroom Features
Main Floor Master Bedroom
Fireplace
Kitchen Features
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Hobby Rec Room Game Room
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Rooms

Bedroom 2:

196 sq/ft width 14' x depth 14'

Bedroom 3:

144 sq/ft width 14' x depth 10' 4"

Dinette:

112 sq/ft width 9' 8" x depth 11' 8"

Garage:

768 sq/ft width 32' x depth 24'

Kitchen:

181 sq/ft width 14' 4" x depth 12' 8"

Laundry Room:

74 sq/ft width 10' 2" x depth 7' 4"

Living Room:

226 sq/ft width 14' x depth 16' 2"

Master Bedroom:

196 sq/ft width 14' x depth 14'

Office:

90 sq/ft width 9' 4" x depth 9' 8"

Porch - Front:

120 sq/ft width 20' x depth 6'

Recreation Room:

494 sq/ft width 21' 6" x depth 23'

Utility Room:

90 sq/ft width 10' x depth 9'

Walk-In Closet:

40 sq/ft width 5' x depth 8'

What's Included In This Plan Set


  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
  • Note: These plans will not contain an electrical layout.
» See important information before purchasing.
Plan Set
5 Copy Set :
$1463.00
5 printed plan sets mailed to you.
8 Copy Set :
$1738.00
8 printed plan sets mailed to you.
PDF Set :
$1760.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1837.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$2420.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$1276.00
One printed set for bidding purposes only. Not a legal building set for construction.
