PLAN #406-276

Key Specs


2424
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

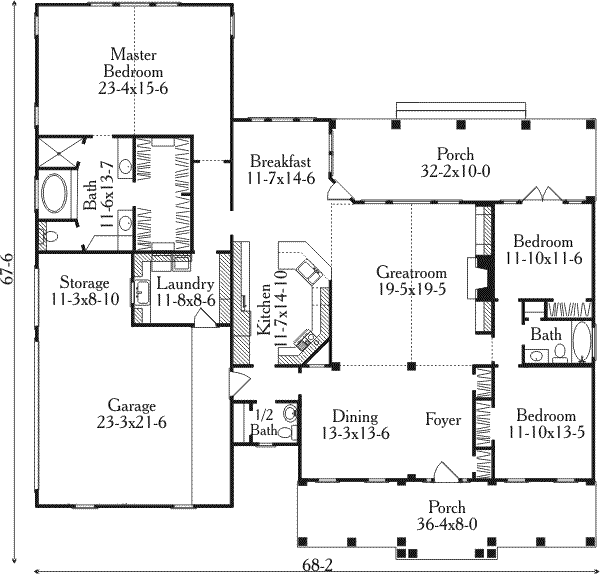

Floor Plan - Main Floor Plan
Colonial Floor Plan - Main Floor Plan Plan #406-276

Full Specs & Features


Dimension
Depth : 67' 6"
Height : 26'
Width : 68' 2"
Area
First Floor: 2424 sq/ft height 9'
Ceiling
Main Ceiling : 9'
Roof
Roof Framing : Conventional
Primary Pitch : 9:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : 2"x4"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Additional Room Features
Great Room Living Room
Storage Area
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Bedroom 2:

136 sq/ft width 11' 10" x depth 11' 6"

Bedroom 3:

158 sq/ft width 11' 10" x depth 13' 5"

Breakfast Room:

167 sq/ft width 11' 7" x depth 14' 6"

Dining Room:

178 sq/ft width 13' 3" x depth 13' 6"

Foyer:

91 sq/ft width 7' x depth 13'

Garage:

499 sq/ft width 23' 3" x depth 21' 6"

Garage Storage:

99 sq/ft width 11' 3" x depth 8' 10"

Kitchen:

171 sq/ft width 11' 7" x depth 14' 10"

Laundry Room:

99 sq/ft width 11' 8" x depth 8' 6"

Living Room:

377 sq/ft width 19' 5" x depth 19' 5"

Master Bathroom:

156 sq/ft width 11' 6" x depth 13' 7"

Master Bedroom:

361 sq/ft width 23' 4" x depth 15' 6"

Porch - Front:

290 sq/ft width 36' 4" x depth 8'

Porch - Rear:

321 sq/ft width 32' 2" x depth 10'

What's Included In This Plan Set


  • The first sheet is the cover sheet which outline the Design Criteria and Construction Notes, such as general site, foundation, framing and mechanical notes
  • The second sheet is typically the front and side elevation drawn to 1/4" scale.
  • The third sheet is the rear and side elevation drawn to 1/4" scale.
  • The foundation of your choice (slab, crawl space or basement). Floor Plan 1/4" Scale
  • Detail and Section Page
  • Cabinet elevations & Roof Plan
  • Electrical Plan
  • Foundation Details
» See important information before purchasing.

Plan Set

5 Copy Set :
$940.50
5 printed plan sets mailed to you.
8 Copy Set :
$1030.50
8 printed plan sets mailed to you.
PDF Set :
$1080.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$1800.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$315.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$315.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Additional Options

Material List :
58.50
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
229.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
49.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
