Key Specs
2427
sq ft
3
Beds
2.5
Baths
1
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

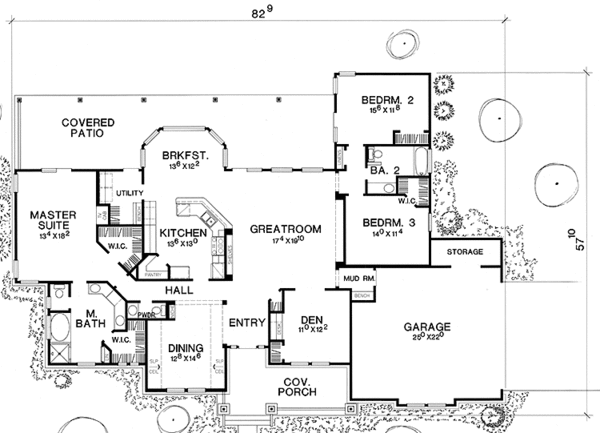

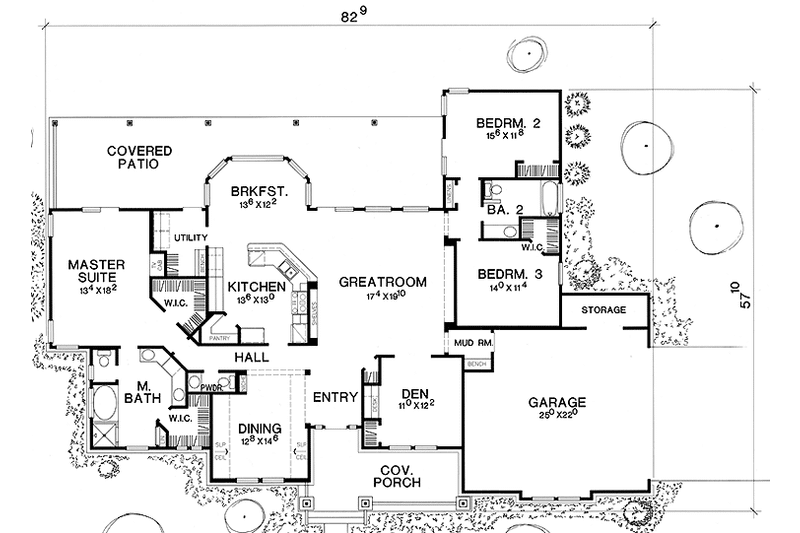

PLAN 472-356
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 58'
Height : 28'
Width : 83'
Area
First Floor: 2427 sq/ft height 10'
Roof
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
192 sq/ft width 16' 6" x depth 11' 8"
Bedroom 3:
158 sq/ft width 14' x depth 11' 4"
Breakfast Nook:
164 sq/ft width 13' 6" x depth 12' 2"
Dining Room:
133 sq/ft width 11' x depth 12' 2"
Dining Room:
183 sq/ft width 12' 8" x depth 14' 6"
Great Room:
345 sq/ft width 17' 4" x depth 19' 11"
Kitchen:
175 sq/ft width 13' 6" x depth 13'
Master Bedroom:
242 sq/ft width 13' 4" x depth 18' 2"
What's Included In This Plan Set
- ELECTRICAL SCHEMATIC
- EXTERIOR ELEVATIONS
- CABINET ELEVATIONS
- CEILING FRAMING
- ROOF FRAMING
- FOUNDATION OF CHOICE AS AVAILABLE (SLAB, CRAWLSPACE OR BASEMENT) APPROPRIATE FOUNDATION DETAIL SHEET
- BUILDING CROSS SECTION IF MULTISTORY
- ALSO 4 PAGE FHA DESCRIPTION OF MATERIALS FORM (NOT A MATERIALS LIST OF QUANTITIES)
- GENERIC WALL SECTIONS
-
Note: Reproducible and CAD files are not available if building in Texas, Oklahoma, New Mexico, Louisiana, Tennessee or Alabama. Architect must update and stamp all plans being sent to these states.
Plan Set
$1445.00
Foundation
$0.00
$125.00
Framing
$0.00
Additional Options
$300.00
$60.00
$100.00
$39.00
$100.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
