PLAN 119-422

Key Specs

2430
sq ft

3
Beds

2.5
Baths

0
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Featuring modern amenities, rustic details, and an amazing kitchen, this plan is one that your family will love. Seating for five at the kitchen's counter encourages interaction between here and the hearth room, while the cooktop island and overhead floating cabinets add utility. Capture panoramic views from the back covered porch and grilling deck. The family room is cozy and impressive, showcasing a fireplace with built-ins and a wood truss ceiling. The garage entry acts as a second foyer allowing direct access to the pantry, large laundry room (with plenty of folding space), kitchen, and master suite. The luxurious master suite is both romantic (check out that shower and tub!) and practical (with double closets). An optional patio would be a great spot from which to greet the day. For future expansion, the bonus can provide many options.

Floor Plans

Floor Plan - Main Floor Plan

Reverse

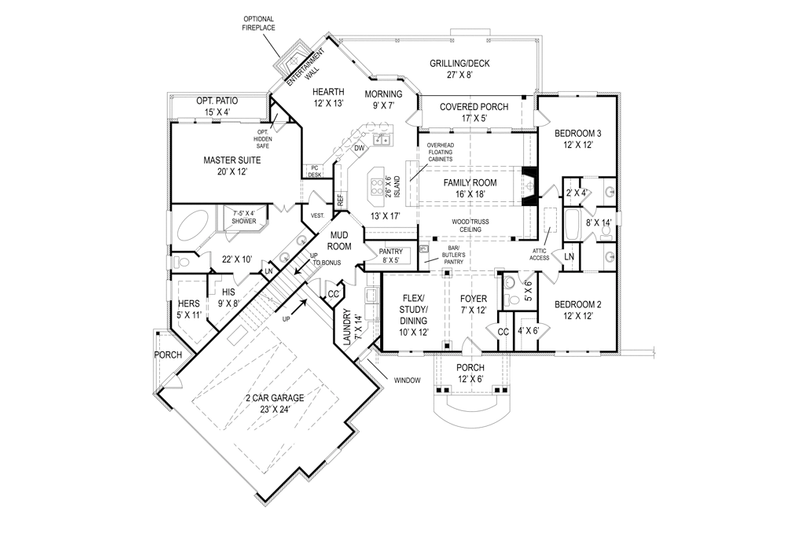

Craftsman Floor Plan - Main Floor Plan Plan #119-422

Floor Plan - Other Floor Plan

Reverse

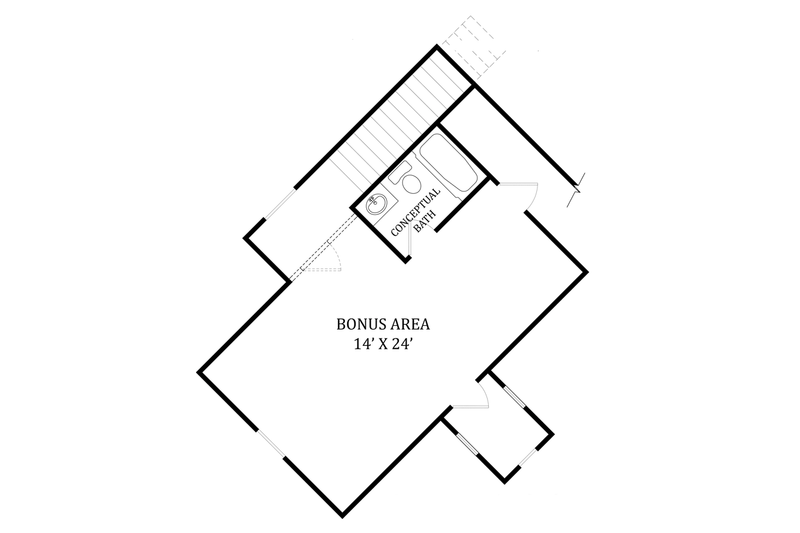

Craftsman Floor Plan - Other Floor Plan Plan #119-422

Full Specs & Features

Dimension

Depth : 71'
Height : 27'
Width : 70'

Area

Bonus: 474 sq/ft
First Floor: 2430 sq/ft
Garage: 611 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 14:12

Exterior Wall Framing

Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4

Bedroom Features

Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Main Floor Laundry
Mud Room
Open Floor Plan
Unfinished Future Space

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Jack & Jill Bath

Rooms

Bedroom 2:

width 12' x depth 12'

Bedroom 2 Closet:

width 4' x depth 6'

Bedroom 3:

width 12' x depth 12'

Bedroom 3 Closet:

width 2' x depth 4'

Bonus Room - Unfinished:

474 sq/ft width 14' x depth 24'

Covered Front Porch:

73 sq/ft width 12' x depth 6'

Covered Rear Porch:

98 sq/ft width 17' x depth 5'

Family Room:

width 16' x depth 18'

Flex/Study/Dining Room:

width 10' x depth 12'

Foyer:

width 7' x depth 12'

Garage:

611 sq/ft width 23' x depth 24'

Grilling Deck:

width 27' x depth 8'

Half Bath:

width 5' x depth 6'

Hearth Room:

width 12' x depth 13'

Hers Master Closet:

width 5' x depth 11'

His Master Closet:

width 9' x depth 8'

Jack And Jill Bath:

width 8' x depth 14'

Kitchen:

width 13' x depth 17'

Laundry Room:

width 7' x depth 14'

Master Bath:

width 22' x depth 10'

Master Suite:

width 20' x depth 12'

Morning Room:

width 9' x depth 7'

Pantry:

width 8' x depth 5'

What's Included In This Plan Set

See a sample plan set

Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
Second Floor Lighting: The same details as provided for the first floor.
Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).

» See important information before purchasing.

Plan Set

PDF Set : $1237.50	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $1327.50	5 printed plan sets mailed to you.
CAD Set : $1777.50	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set : $886.50	One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab: $0.00	Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace: $270.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x4:
$0.00

Wood 2x4

Additional Options

Right-Reading Reverse : $108.00	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $108.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $90.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $35.10	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $90.00	Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
