Plan Description


Craftsman details abound on this stunning ranch home. At just under 2,500 square feet, this home features a classic floor plan with an impressive kitchen island that overlooks the great room. A see-through fireplace divides the sunroom and great rooms while adding a comfortable glow to the living area. The master suite is tucked behind the garages on the right side of the home and features a massive walk-in closet, step ceilings and Jacuzzi tub. Two additional bedrooms lie to the left of the entry and share access to the full bath off the hall. A three-stall, side-split load garage completes the home.

Floor Plans

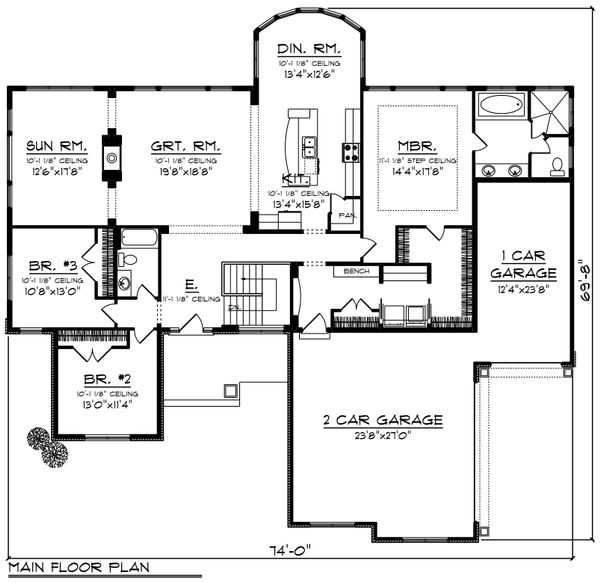

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

Full Specs & Features


Dimension Depth : 69' 8"
Height : 27' 11"
Width : 74'
Area Garage : 931 sq/ft
Main Floor : 2449 sq/ft
Porch : 137 sq/ft
Ceiling Ceiling Details : Entry 11', MBR 11' Step.
Lower Ceiling : 8'
Main Ceiling : 10'
Roof Roof Framing : Truss
Primary Pitch : 12:12
Secondary Pitch : 10:12
Exterior Wall Framing Insulation : R-20
Exterior Wall Finish : Siding, Shake, Stone
Framing : 2x6
Bedroom Features Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features Kitchen Island
Breakfast Nook
Peninsula Eating Bar
Additional Room Features Mud Room
Great Room Living Room
Main Floor Laundry
Unfinished Future Space
Lot Characteristics Suited For Corner Lot
Outdoor Spaces Covered Front Porch
Screened Porch Sunroom

What's Included In This Plan Set


Ahmann Design

  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
