PLAN #47-971

Key Specs


2453
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


A dual-pitched roof, brick and half-timbering combine to create a wonderful Tudor facade. A vaulted foyer with a skylight leads to the curved staircase, which climbs to the cluster of bedrooms. The master bedroom has a private bath, while three other bedrooms share a roomy, central bath. Downstairs, a formal dining room, a sunken living room with bay window, a den, laundry room, sunken family room and kitchen with a breakfast nook complete this plan.<P/><BR/>

Floor Plans

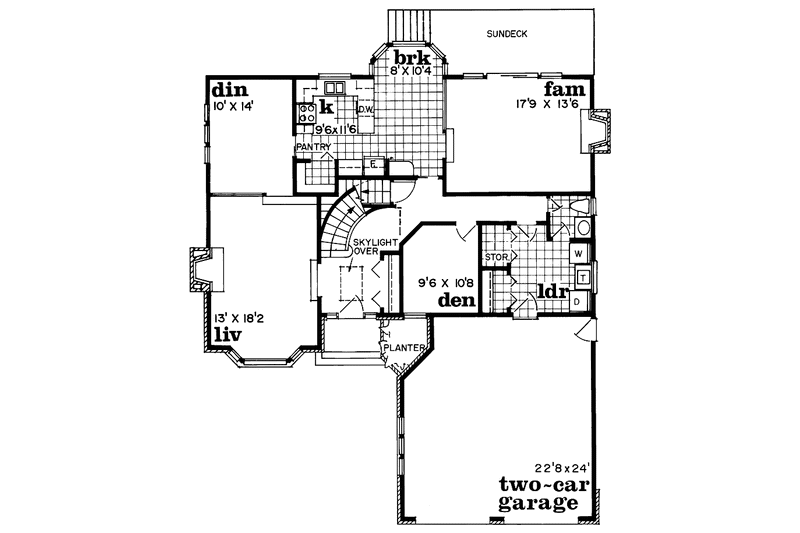

Floor Plan - Main Floor Plan
Tudor Floor Plan - Main Floor Plan Plan #47-971

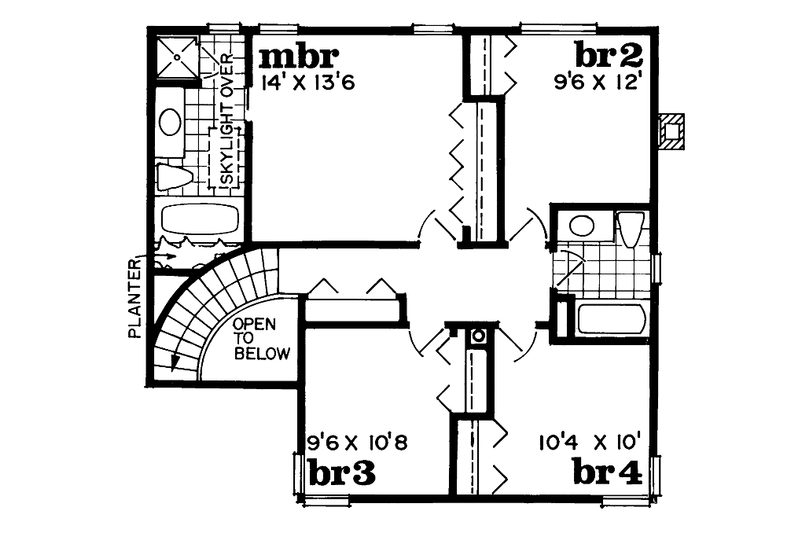

Floor Plan - Upper Floor Plan
Tudor Floor Plan - Upper Floor Plan Plan #47-971

Full Specs & Features


Dimension
Depth : 58'
Height : 31'
Width : 47'
Area
First Floor: 1482 sq/ft height 8'
Second Floor: 971 sq/ft
Bedroom Features
Fireplace
Formal Living Room / Parlor
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Rooms

3rd BR Closet:

10 sq/ft width 5' x depth 2'

Basement Foundation:

1864 sq/ft width 39' 8" x depth 47'

Bedroom 2:

114 sq/ft width 12' x depth 9' 6"

Bedroom 2 Closet:

8 sq/ft width 4' x depth 2'

Bedroom 3 Closet:

8 sq/ft width 4' x depth 2'

Bedroom 4:

101 sq/ft width 10' 8" x depth 9' 6"

Bedroom 4 Closet:

11 sq/ft width 5' 6" x depth 2'

Breakfast Room:

82 sq/ft width 10' 4" x depth 8'

Crawlspace Foundation:

1880 sq/ft width 40' x depth 47'

Deck:

200 sq/ft width 10' x depth 20'

Den/Office or Bedroom 1:

101 sq/ft width 10' 8" x depth 9' 6"

Dining Room:

140 sq/ft width 14' x depth 10'

Foyer:

49 sq/ft width 7' x depth 7'

Garage:

544 sq/ft width 24' x depth 22' 8"

Gathering Room:

239 sq/ft width 13' 6" x depth 17' 9"

Hall Bathroom:

45 sq/ft width 7' 4" x depth 6' 3"

Hall Closet:

14 sq/ft width 7' x depth 2'

Kitchen:

109 sq/ft width 11' 6" x depth 9' 6"

Master Bathroom:

87 sq/ft width 15' x depth 5' 10"

Master Bedroom:

189 sq/ft width 13' 6" x depth 14'

Master Closet:

18 sq/ft width 9' x depth 2'

Powder Room:

28 sq/ft width 5' 9" x depth 5'

Utility Room:

136 sq/ft width 10' 8" x depth 12' 9"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
