PLAN #316-165

Key Specs


2459
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


The balance created by double sets of square columns and rectangular windows is offset by asymmetrical gables, creating an interesting and sophisticated design. The lower-level living areas are well isolated from the master suite and office, providing secluded sleeping and working zones. Formal living and dining rooms are at the front of the plan, while casual living areas to the back offer many amenities, such as a windowed dining bay, a fireplace, a vaulted ceiling and a large, angled island in the kitchen. The three secondary bedrooms upstairs share a full bath.

Floor Plans

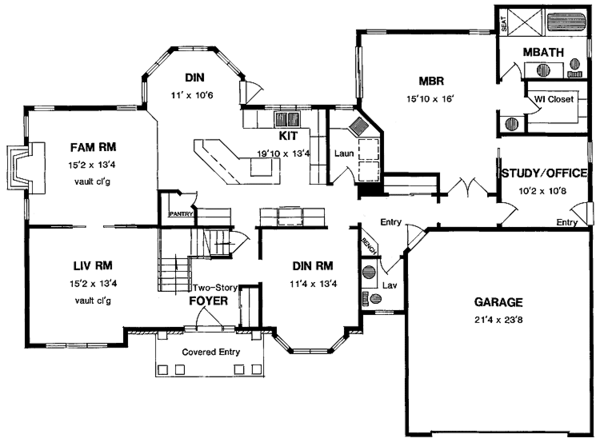

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Main Floor : 1861 sq/ft
Upper Floor : 598 sq/ft
Bedroom Features Split Bedrooms
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features Den Office Study Computer
Family Room Keeping Room
Outdoor Spaces Covered Front Porch

What's Included In This Plan Set


JAMES FAHY DESIGN

All plans are drawn at ¼” scale or larger, except side and rear elevations are at 1/4, 3/16, or 1/8 scale. Plans include:

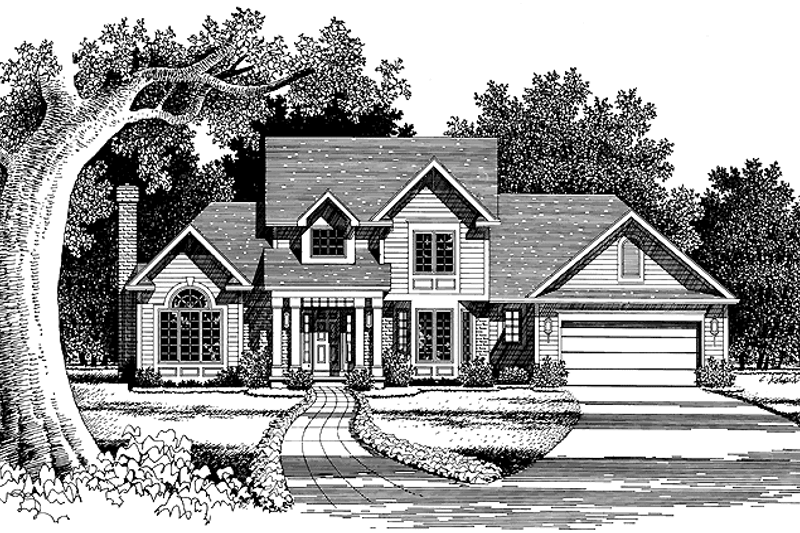

  • Artist rendered front elevation cover sheet
  • Exterior elevations of all four sides
  • Foundation and floor plans
  • Cross sections and construction details
  • Roof plan
  • Kitchen and bath cabinet elevations (on select plans)
  • General notes and construction guide specifications
» See important information before purchasing.
Plan Set
5 Copy Set :
$685.00
5 printed plan sets mailed to you.
8 Copy Set :
$750.00
8 printed plan sets mailed to you.
Reproducible Set :
$935.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Single Set :
$620.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Framing
Wood 2x6:
$0.00
Wood 2x6
Additional Options
Additional Construction Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
