PLAN #1010-129

Key Specs


2472
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

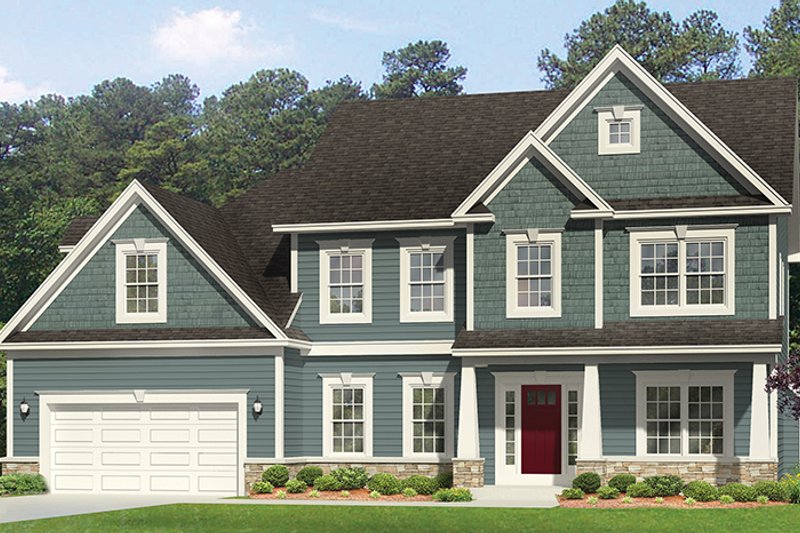

Graceful tapered columns and a mix of materials create a classic exterior with lots of curb appeal. Inside, the layout is surprisingly contemporary. At the center of the gathering spaces, the kitchen boasts a large island with a snack bar. Nearby, the dining nook offers a bright, relaxed space that opens to outside. A fireplace warms the great room. It's easy to tame clutter with the smart organizational details at the garage entrance, including a bench and cubbies. Upstairs, the master suite treats you with a whirlpool tub, large shower, and huge walk-in closet. Three more bedrooms use the hall bath, with the bonus space available for later expansion.

Floor Plans

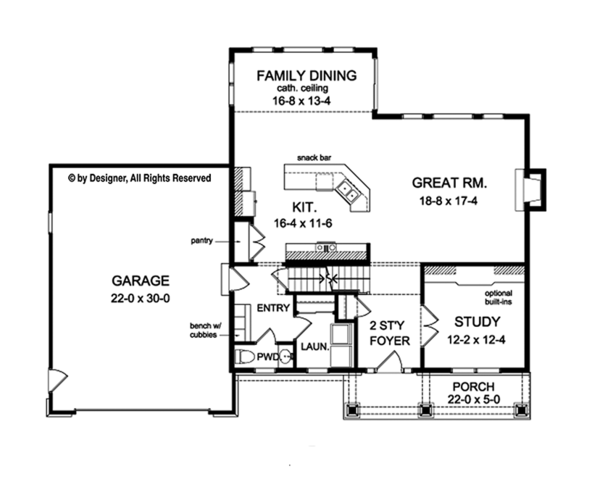

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #1010-129

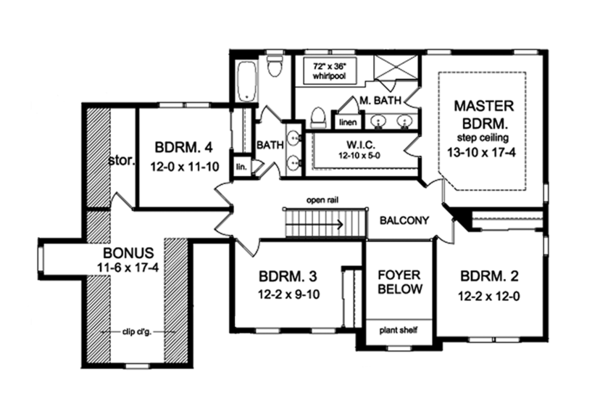

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #1010-129

Full Specs & Features


Dimension
Depth : 44' 6"
Height : 33' 6"
Width : 57' 8"
Area
Basement Unfinished: 1257 sq/ft
Bonus: 260 sq/ft
First Floor: 1257 sq/ft height 9'
Garage: 660 sq/ft
Second Floor: 1215 sq/ft height 8'
Storage: 72 sq/ft
Roof
Roof Framing : Combination Truss/Conventional
Primary Pitch : 9:12
Secondary Pitch : 12:12
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Fireplace
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Mud Room
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Storage Area
Unfinished Future Space
Loft
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Balcony
Rooms

Attic Storage:

72 sq/ft

Bedroom 2:

146 sq/ft width 12' 2" x depth 12'

Bedroom 3:

120 sq/ft width 12' 2" x depth 9' 10"

Bedroom 4:

142 sq/ft width 12' x depth 11' 10"

Bonus:

260 sq/ft width 11' 6" x depth 17' 4"

Covered Front Porch:

110 sq/ft width 22' x depth 5'

Family Dining:

222 sq/ft width 16' 8" x depth 13' 4"

Garage:

660 sq/ft width 22' x depth 30'

Great Room:

324 sq/ft width 18' 8" x depth 17' 4"

Kitchen:

188 sq/ft width 16' 4" x depth 11' 6"

Laundry room:

45 sq/ft width 7' x depth 6' 6"

Master Bedroom:

241 sq/ft width 13' 10" x depth 17' 4"

Master WIC:

64 sq/ft width 12' 10" x depth 5'

Study:

150 sq/ft width 12' 2" x depth 12' 4"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Plan: ⅛” scale; this shows roof rafter or trusses and how the roof is framed.
» See important information before purchasing.

Plan Set

5 Copy Set :
$1000.00
5 printed plan sets mailed to you.
PDF Set :
$1000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
8 Copy Set :
$1100.00
8 printed plan sets mailed to you.
CAD Set :
$2000.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$760.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Additional Construction Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
