PLAN 927-116
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description
European details bring charm and a bit of joie de vivre to this traditional
home, and a thoughtful floor plan warms up to a myriad of lifestyles.
Comfortable living space includes a vaulted family room with a centered
fireplace and complements the formal dining room, which offers a tray ceiling.
A sizable gourmet kitchen features a walk-in pantry and a center cooktop island
counter. It overlooks the breakfast area, which opens to a secluded covered
porch through a French door. The master suite provides a tray ceiling and a
private sitting room, bright with windows and a warming hearth. Please specify
basement or crawlspace foundation when ordering.
Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Floor Plans

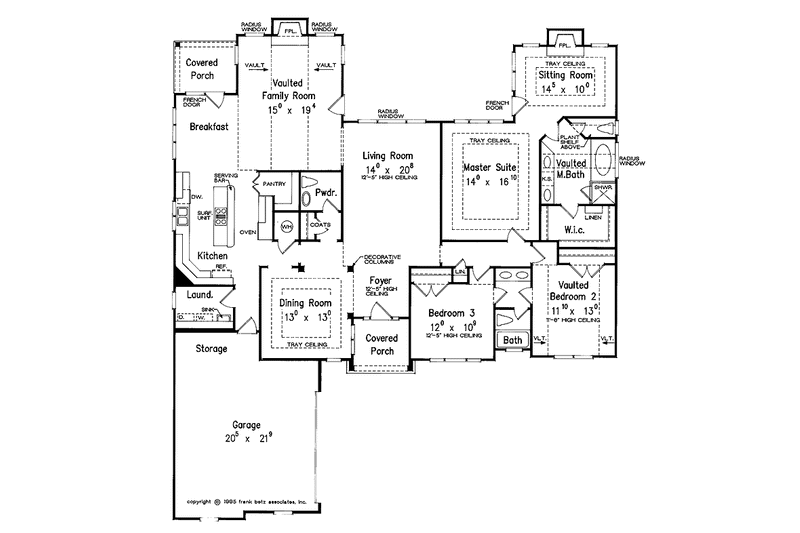

Floor Plan - Main Floor

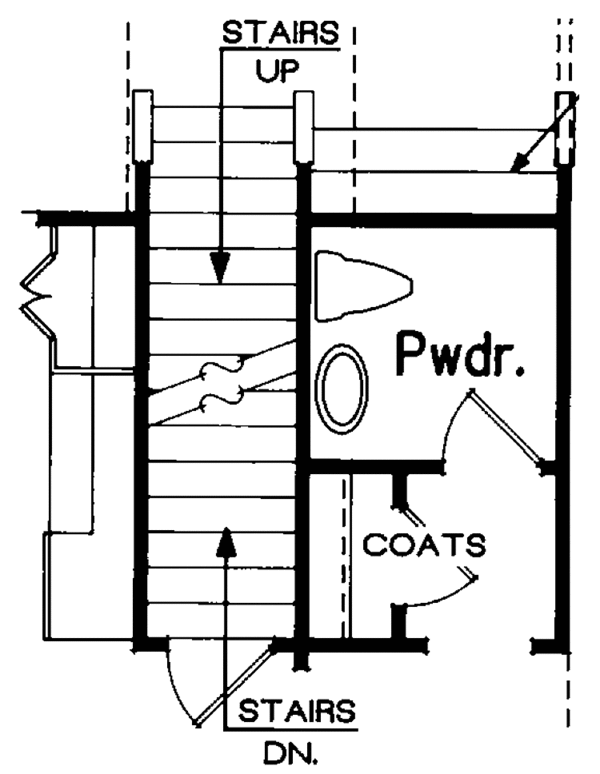

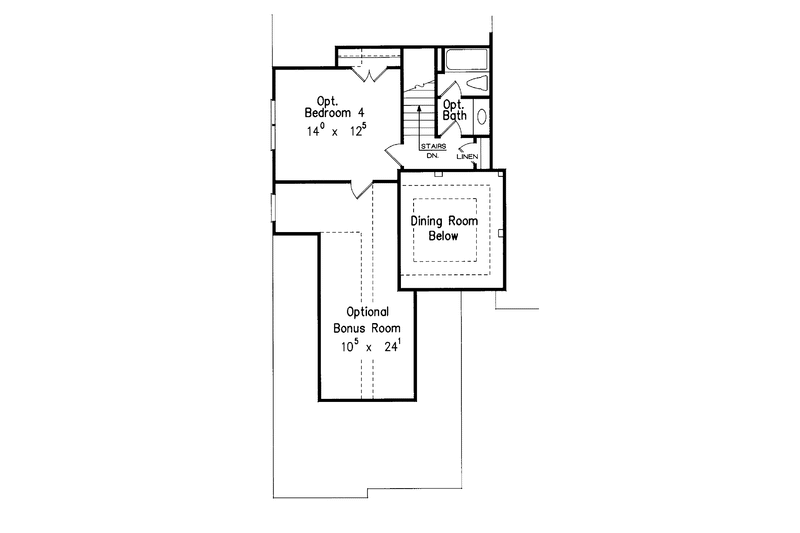

Floor Plan - Other Floor

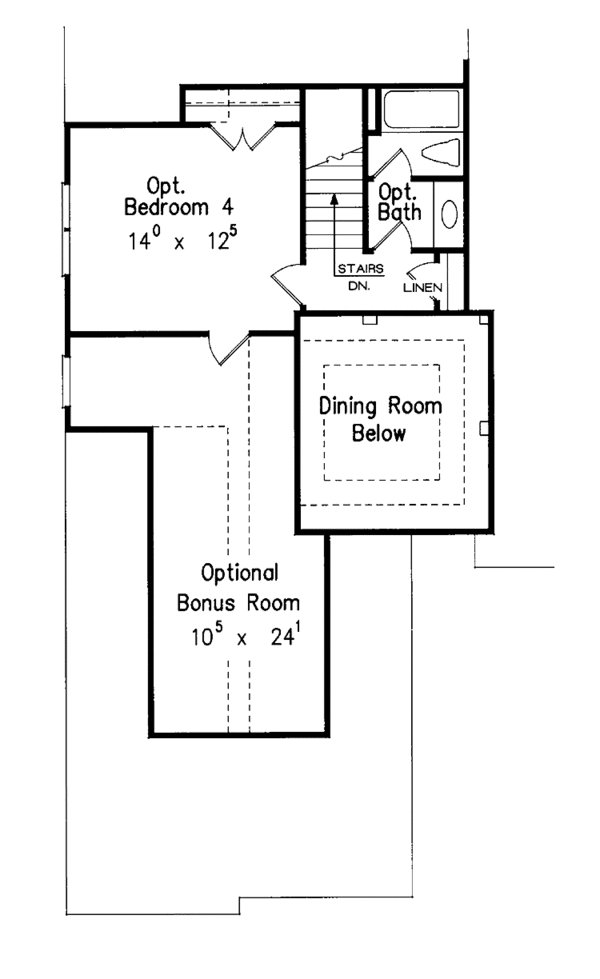

Floor Plan - Other Floor

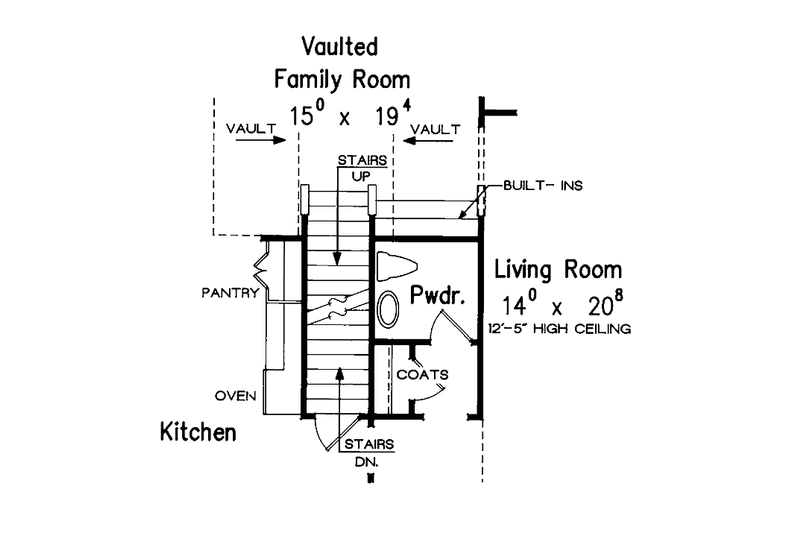

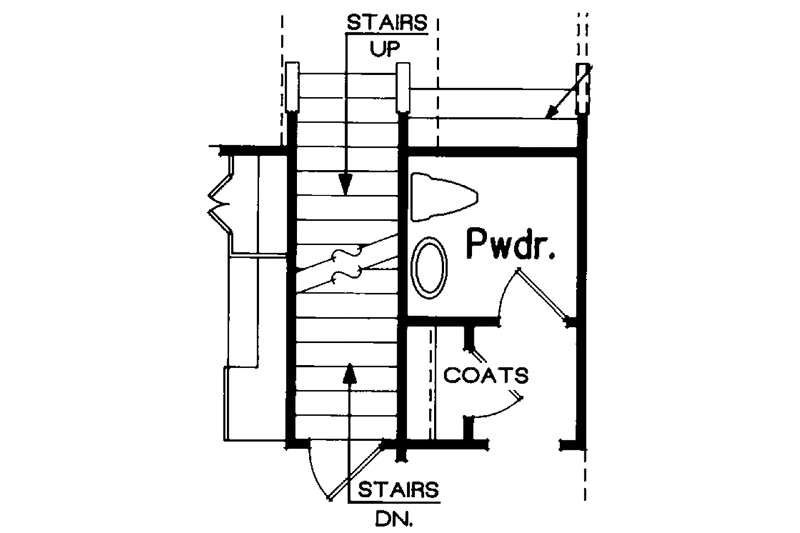

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 72' 4"
Height : 28'
Width : 64'
Height : 28'
Width : 64'
Area
Bonus: 588 sq/ft
First Floor: 2491 sq/ft
First Floor: 2491 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch
Rooms
Bathroom 2:
71 sq/ft width 5' 6" x depth 13'
Bathroom 3:
114 sq/ft width 8' 10" x depth 12' 11"
Bedroom 2:
153 sq/ft width 11' 10" x depth 13'
Bedroom 3:
129 sq/ft width 12' x depth 10' 9"
Bedroom 4:
173 sq/ft width 14' x depth 12' 5"
Bonus Room - Finished:
250 sq/ft width 10' 5" x depth 24' 1"
Breakfast Room:
99 sq/ft width 9' x depth 11'
Coat Closet:
7 sq/ft width 2' x depth 3' 11"
Dining Room:
169 sq/ft width 13' x depth 13'
Foyer:
58 sq/ft width 8' x depth 7' 3"
Garage:
444 sq/ft width 20' 5" x depth 21' 9"
Gathering Room:
289 sq/ft width 15' x depth 19' 4"
Kitchen:
224 sq/ft width 14' x depth 16'
Laundry Room:
49 sq/ft width 8' 4" x depth 6'
Living Room:
289 sq/ft width 14' x depth 20' 8"
Master Bathroom:
131 sq/ft width 10' 8" x depth 12' 4"
Master Bedroom:
235 sq/ft width 14' x depth 16' 10"
Master Closet:
63 sq/ft width 10' 8" x depth 5' 11"
Master Sitting Room:
144 sq/ft width 14' 5" x depth 10'
Pantry:
33 sq/ft width 6' 1" x depth 5' 6"
Porch - Front:
61 sq/ft width 9' 2" x depth 6' 9"
Powder Room:
32 sq/ft width 5' 10" x depth 5' 6"
