Key Specs
2503
sq ft
4
Beds
3
Baths
2
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBSUMMER
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 34-188
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 78' 1"
Height : 25'
Width : 42'
Area

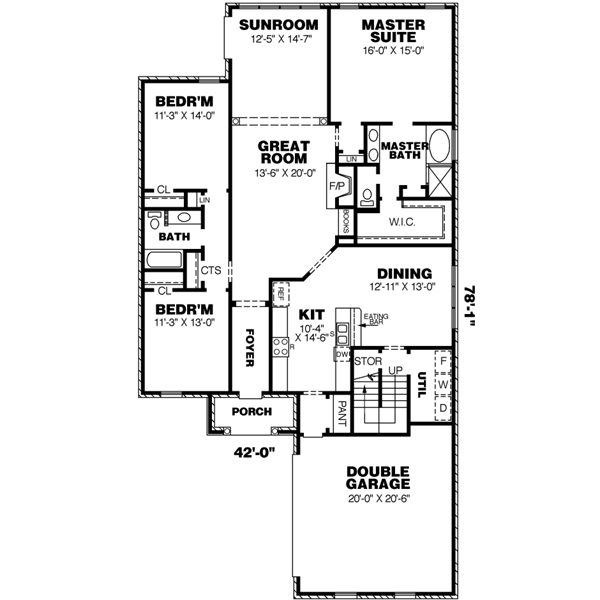

First Floor: 2157 sq/ft height 10'

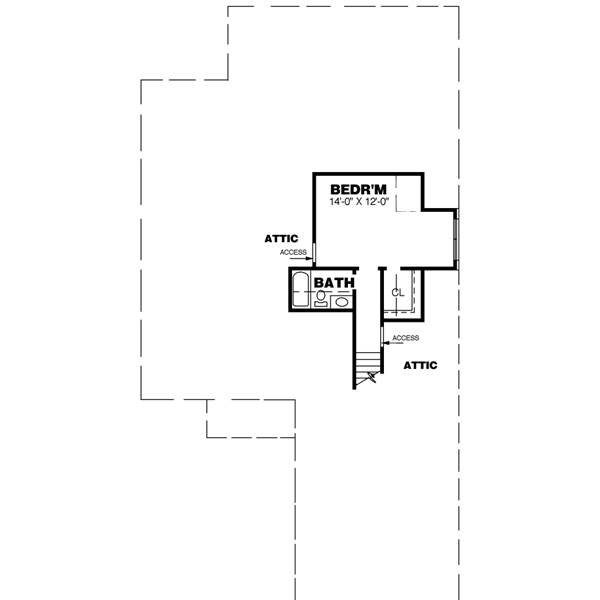

Second Floor: 346 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Great Room Living Room
Storage Area
Sunroom
Unfinished Future Space
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Screened Porch
Rooms
3rd BR Closet:
10 sq/ft width 5' x depth 2'
Bathroom 2:
41 sq/ft width 8' 3" x depth 5'
Bathroom 3:
40 sq/ft width 8' x depth 5'
Bedroom 2:
157 sq/ft width 11' 3" x depth 14'
Bedroom 2 Closet:
100 sq/ft width 50' x depth 2'
Bedroom 3:
146 sq/ft width 11' 3" x depth 13'
Bedroom 3 Closet:
100 sq/ft width 50' x depth 2'
Bedroom 4:
168 sq/ft width 14' x depth 12'
Bedroom 4 Closet:
29 sq/ft width 4' 11" x depth 6'
Crawlspace Foundation:
3279 sq/ft width 42' x depth 78' 1"
Dining Room:
167 sq/ft width 12' 11" x depth 13'
Foyer:
53 sq/ft width 4' 10" x depth 11'
Garage:
400 sq/ft width 20' x depth 20'
Gathering Room:
270 sq/ft width 13' 6" x depth 20'
Kitchen:
149 sq/ft width 10' 4" x depth 14' 6"
Master Bathroom:
87 sq/ft width 11' 1" x depth 7' 11"
Master Bedroom:
240 sq/ft width 16' x depth 15'
Master Closet:
72 sq/ft width 12' 7" x depth 5' 9"
Pantry:
16 sq/ft width 2' 10" x depth 5' 10"
Porch - Front:
37 sq/ft width 9' 8" x depth 3' 10"
Sun Room:
181 sq/ft width 12' 5" x depth 14' 7"
Utility Room:
52 sq/ft width 5' 6" x depth 9' 6"
What's Included In This Plan Set
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Shows the relationship between different levels, wall heights, and the overall building volume. May include details like foundation, framing, insulation, and finishes.
- Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. Some plans that do not include an electrical plan may have it available for an additional fee.
- Kitchen Cabinet Elevation(s): Detailed drawings of kitchen cabinet and bath elevations.
- Detail Sheet(s): Details sheets for items like walls, chimneys, and fireplaces, including abbreviations, span tables.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Plan Set
$935.00
$1275.00
$1275.00
$1275.00
$1912.50
$722.50
Foundation
$0.00
Additional Options
$106.25
$85.00
$33.15
$85.00
$0.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
