PLAN #417-799

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

Designed with an active family in mind, this one-story home plan features plenty of bedroom space and a large family room that encourages family time. A three-car garage with plenty of room for a workshop, a den/study, and large sliding glass doors which provide easy access to the covered patio are just a few of the amenities that make this plan a standout. The master suite pleasing designed includes a bay window with a view to the backyard and access to the covered patio. Luxuriate in your master bath with the large garden tub, shower and his and hers vanities and dual walk in closets.

Floor Plans

Floor Plan - Other Floor Plan

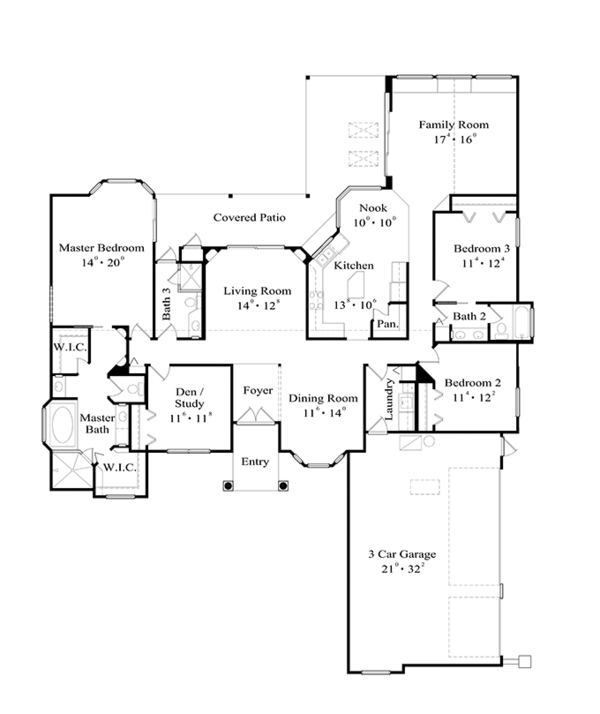

Mediterranean Floor Plan - Other Floor Plan Plan #417-799

Full Specs & Features

Depth : 83' 4"
Height : 21'
Width : 68' 4"
First Floor: 2507 sq/ft height 9'
Garage: 709 sq/ft
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces

Bedroom 2:

width 11' 4" x depth 12' 2"

Bedroom 3:

width 11' 4" x depth 12' 4"

Covered Front Porch:

63 sq/ft

Covered Rear Porch:

378 sq/ft

Den/ Study:

width 11' 6" x depth 11' 8"

Dining Room:

width 11' 6" x depth 14'

Family Room:

width 17' 4" x depth 16'


709 sq/ft width 21' x depth 32' 2"


width 13' 8" x depth 10' 6"

Living Room:

width 14' x depth 12' 8"

Master Bedroom:

width 14' x depth 20'


width 10' x depth 10'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
