PLAN #70-980

Select Plan Set Options
What's included?
Additional Construction Sets
$50.00/each
Mirror Reversed Sets
$40.00
Subtotal
$960.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Got Questions?
Got Questions?  Just ask!
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #70-980

Key Specs


2553
sq ft

4
Beds

3.5
Baths

1
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

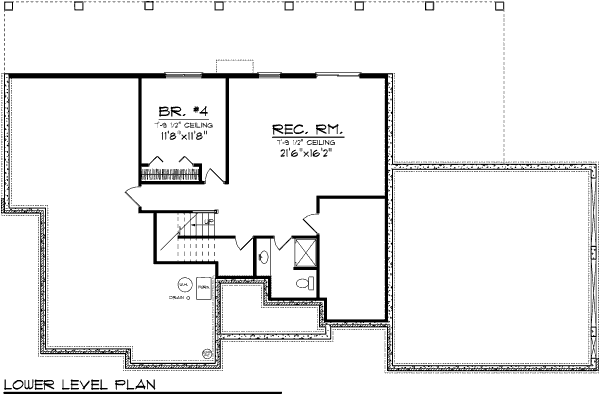

Floor Plan - Lower Floor Plan
Bungalow Floor Plan - Lower Floor Plan Plan #70-980

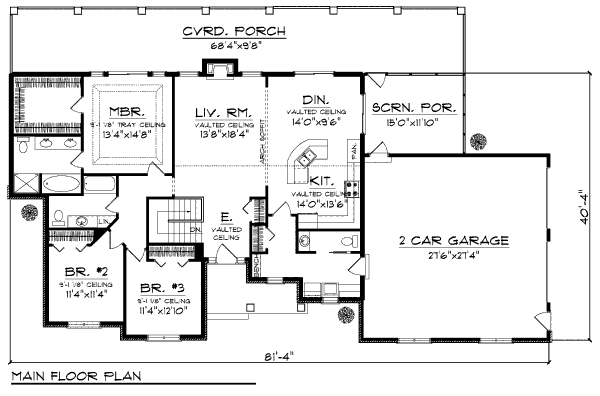

Floor Plan - Main Floor Plan
Bungalow Floor Plan - Main Floor Plan Plan #70-980

Full Specs & Features


Dimension Depth : 40' 4"
Height : 26' 11"
Width : 81' 4"
Area Garage : 778 sq/ft
Lower Floor : 756 sq/ft
Main Floor : 1797 sq/ft
Ceiling Lower Ceiling : 8'
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof Roof Framing : Truss
Roof Load : 47 psf
Primary Pitch : 8:12
Secondary Pitch : 8:12
Exterior Wall Framing Insulation : Exterior R-19, Ceiling R-38
Exterior Wall Finish : Siding, Stone
Framing : 2"x6"
Bedroom Features Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features Eating Bar
Breakfast Nook
Additional Room Features Great Room Living Room
Hobby Rec Room Game Room
Storage Area
Garage Features Side Entry Garage
Lot Characteristics Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces Covered Front Porch
Covered Rear Porch
Screened Porch Sunroom
Bedroom 2 128 sq/ft width 11' 4" x depth 11' 4"
Bedroom 3 145 sq/ft width 11' 4" x depth 12' 10"
Bedroom 4 136 sq/ft width 11' 8" x depth 11' 8"
Dining Room 133 sq/ft width 14' x depth 9' 6"
Garage 751 sq/ft width 27' 6" x depth 27' 4"
Kitchen 189 sq/ft width 14' x depth 13' 6"
Living Room 250 sq/ft width 13' 8" x depth 18' 4"
Master Bedroom 195 sq/ft width 13' 4" x depth 14' 8"
Porch - Rear 660 sq/ft width 68' 4" x depth 9' 8"
Porch - Screened 177 sq/ft width 15' x depth 11' 10"
Recreation Room 347 sq/ft width 21' 6" x depth 16' 2"

What's Included In This Plan Set


  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.
Plan Set
5 Copy Set :
$960.00
5 printed plan sets mailed to you.
8 Copy Set :
$1005.00
8 printed plan sets mailed to you.
Reproducible Set :
$1205.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
PDF Set :
$1250.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$1915.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.
Crawlspace:
$295.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Pier:
$295.00
Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.
Slab:
$295.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse :
295.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
