PLAN #417-805

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

This beautiful Mediterranean plan impresses inside and out. The large foyer, which bridges the 2 wings of the plan, opens directly to the covered patio creating a marvelous entertaining space. On the left, is the large master bedroom suite with a tray ceiling, a plush bath and french doors to a private covered patio. An entrance into the living room from both the master bath and the foyer allows versatility for this room. To the right, the "family" side of the home features a formal dining room, a gourmet kitchen, a breakfast nook, and a family room. Two secondary bedrooms share a full bath. The two-car garage has a golf cart or mower storage area.

Floor Plans

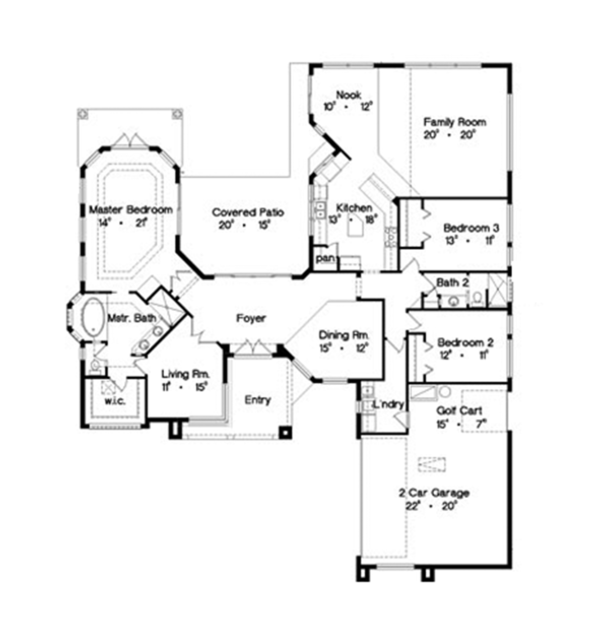

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #417-805

Full Specs & Features

Depth : 79'
Height : 23'
Width : 68' 8"
First Floor: 2598 sq/ft height 12'
Garage: 621 sq/ft
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Garage Features
Golf Cart Storage
Outdoor Spaces
Covered Front Porch

Bedroom 2:

width 12' 8" x depth 11'

Bedroom 3:

width 13' x depth 11'

Breakfast Nook:

width 10' x depth 12'

Covered Front Porch:

162 sq/ft

Covered Rear Patio:

472 sq/ft width 20' x depth 15' 2"

Dining Room:

width 15' x depth 12'

Family Room:

width 20' x depth 20'


621 sq/ft width 22' 8" x depth 20'


width 13' x depth 18'

Living Area:

width 11' 8" x depth 15'

Master Bedroom:

width 14' x depth 21' 8"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for level lot, single layer concrete poured directly on grade.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.



Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
