PLAN 47-999
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Covered verandah wraps home on three sides.Two story foyer, with planter ledge,
spills to the vaulted living room. Dining room, wtih coffered ceiling, shares
an open end, see-through fireplace with the living room. Skylight and sliding
glass doors create a greenhouse effect for the sunroom and breakfast area.
Family room shares a back-to-back fireplace with the master bedroom. Coffered
ceiling master bedroom features a walk-in closet, screened porch and ensuite
with twin vanity and raised whirlpool spa. Master bedroom has sliding glass
access to the sunroom.
Floor Plans

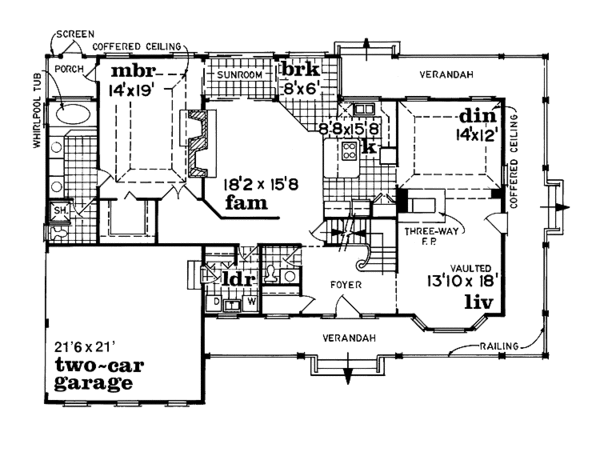

Floor Plan - Main Floor

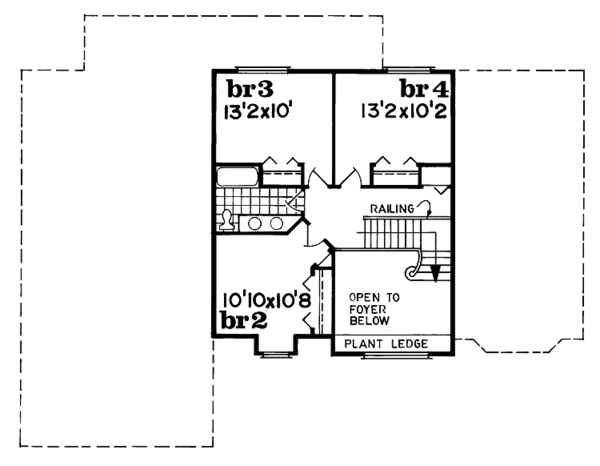

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 47' 6"
Height : 28'
Width : 70'
Area
First Floor: 2603 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Roof Type : Shingle
Exterior Wall Framing
Framing : Wood - 2x6
Rooms
Bedroom 2:
115 sq/ft width 10' 10" x depth 10' 8"
Bedroom 3:
131 sq/ft width 13' 2" x depth 10'
Bedroom 4:
133 sq/ft width 13' 2" x depth 10' 2"
Breakfast Room:
48 sq/ft width 8' x depth 6'
Dining Room:
168 sq/ft width 14' x depth 12'
Family Room:
284 sq/ft width 18' 2" x depth 15' 8"
Garage:
451 sq/ft width 21' 6" x depth 21'
Kitchen:
135 sq/ft width 8' 8" x depth 15' 8"
Living Room:
248 sq/ft width 13' 10" x depth 18'
Master Bedroom:
266 sq/ft width 14' x depth 19'
