PLAN #1010-134

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

Warm and inviting are words that describe the feeling you will get as you approach the wraparound porch of this house. With a great layout and terrific storage, living here would be be so easy! The main level boasts an open concept living space plus a private study and a screened porch. The side stairway with it's three windows has plenty of natural light leading to the upper level. Once there, you'll find the large master, two additional bedrooms and a huge bonus space. The three car side-loading garage has a big storage wing for lawn and recreational equipment.

Floor Plans

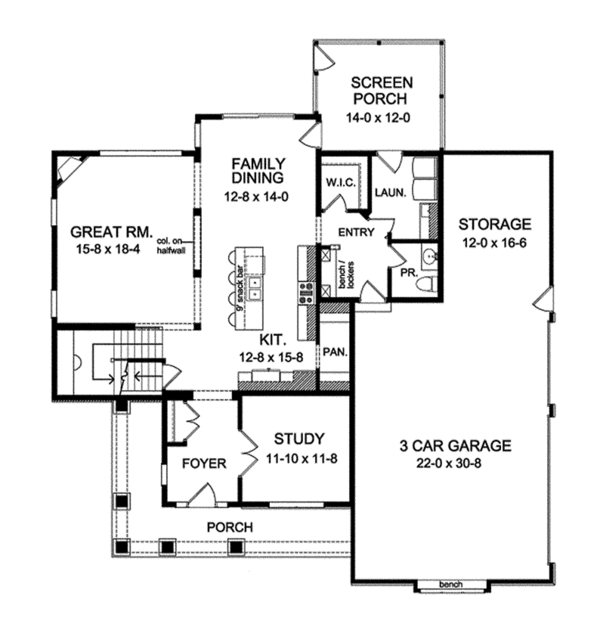

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #1010-134

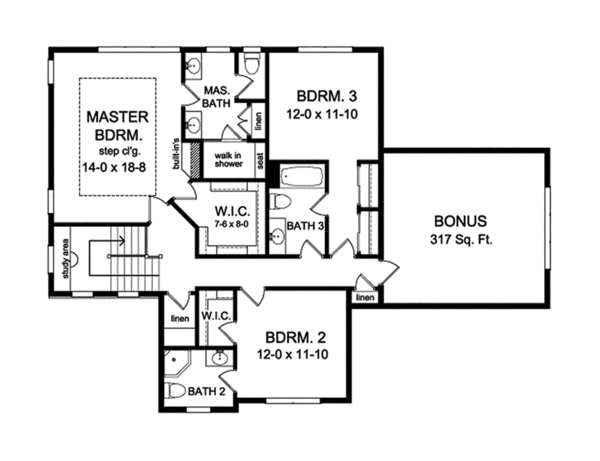

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #1010-134

Full Specs & Features

Depth : 51' 2"
Height : 32' 7"
Width : 59' 2"
Basement Unfinished: 1355 sq/ft
Bonus: 317 sq/ft
First Floor: 1355 sq/ft height 9'
Garage: 874 sq/ft
Second Floor: 1249 sq/ft height 8'
Primary Pitch : 8:12
Roof Framing : Combination Truss/Conventional
Roof Type : Asphalt
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Open Floor Plan
Storage Area
Unfinished Future Space
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Screened Porch
Wrap Around Porch

Bedroom 2:

142 sq/ft width 12' x depth 11' 10"

Bedroom 3:

142 sq/ft width 12' x depth 11' 10"


317 sq/ft

Covered Front Porch:

168 sq/ft


177 sq/ft width 12' 8" x depth 14'


676 sq/ft width 22' x depth 30' 8"

Garage Storage:

198 sq/ft width 12' x depth 16' 6"

Great Room:

287 sq/ft width 15' 8" x depth 18' 4"


198 sq/ft width 12' 8" x depth 15' 8"

Master Closet:

60 sq/ft width 7' 6" x depth 8'

Master Bedroom:

261 sq/ft width 14' x depth 18' 8"

Screened Porch:

168 sq/ft width 14' x depth 12'


139 sq/ft width 11' 10" x depth 11' 8"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Plan: ⅛” scale; this shows roof rafter or trusses and how the roof is framed.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.


Ideal for level lot, lower level of home partially or fully underground.


Wood 2x6:
Wood 2x6

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.
