PLAN #72-755

Photographs may show modified designs.

Save
Select Plan Set Options
What's included?
Additional Construction Sets
$60.00/each
Mirror Reversed Sets
$60.00
Subtotal
$966.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?

Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #72-755

Key Specs


2617
sq ft

4
Beds

2
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This elegant Tudor house is perfect for the family that wants to move up in living area, style and luxury. As you enter this home, you will find a living room with a fireplace to the right. The adjacent formal dining room easily leads to the kitchen. The open kitchen/breakfast room accesses the rear terrace. Sunken a few steps, the spacious family room is highlighted with a fireplace and access to the rear covered porch. Upstairs, the family will enjoy three bedrooms and a full bath, along with a spacious master suite.<P/><BR/>

Floor Plans

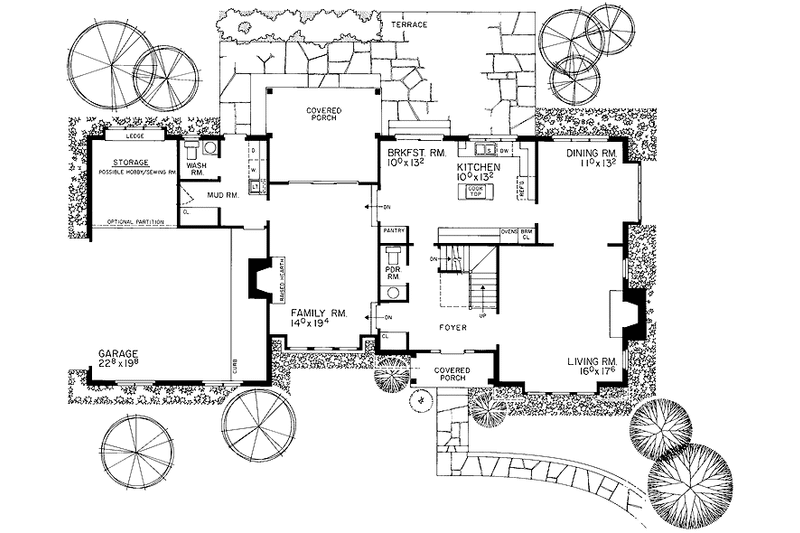

Floor Plan - Main Floor Plan
Tudor Floor Plan - Main Floor Plan Plan #72-755

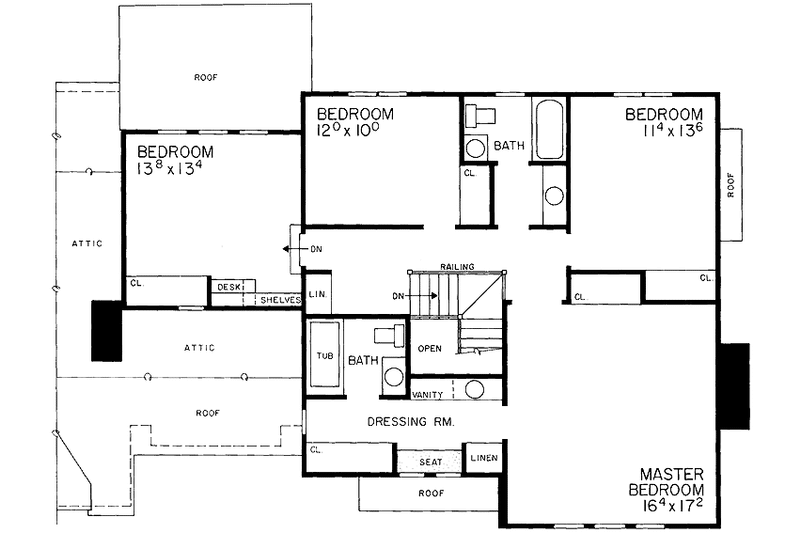

Floor Plan - Upper Floor Plan
Tudor Floor Plan - Upper Floor Plan Plan #72-755

Full Specs & Features


Dimension
Depth : 38' 4"
Height : 30'
Width : 70'
Area
First Floor: 1372 sq/ft height 8'
Second Floor: 1245 sq/ft
Roof
Roof Framing : Combination Truss/Conventional
Primary Pitch : 9:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stone
Framing : Wood - 2x4
Bedroom Features
Split Bedrooms
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Storage Area
Open Floor Plan
Garage Features
Side Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Rooms

3rd BR Closet:

9 sq/ft width 2' 1" x depth 4' 9"

Basement Foundation:

1034 sq/ft width 32' x depth 32' 4"

Bedroom 2:

152 sq/ft width 11' 4" x depth 13' 6"

Bedroom 2 Closet:

11 sq/ft width 2' 1" x depth 5' 6"

Bedroom 3:

120 sq/ft width 12' x depth 10'

Bedroom 3 Closet:

11 sq/ft width 2' 1" x depth 5' 6"

Bedroom 4:

182 sq/ft width 13' 8" x depth 13' 4"

Bedroom 4 Closet:

13 sq/ft width 2' 1" x depth 6' 3"

Breakfast Room:

131 sq/ft width 10' x depth 13' 2"

Dining Room:

144 sq/ft width 11' x depth 13' 2"

Foyer:

202 sq/ft width 15' x depth 13' 6"

Garage:

445 sq/ft width 22' 8" x depth 19' 8"

Garage Storage:

124 sq/ft width 11' x depth 11' 4"

Gathering Room:

270 sq/ft width 14' x depth 19' 4"

Hall:

63 sq/ft width 3' 2" x depth 20'

Hall Bathroom:

81 sq/ft width 8' 1" x depth 10' 1"

Hall Closet:

7 sq/ft width 2' 1" x depth 3' 5"

Kitchen:

131 sq/ft width 10' x depth 13' 2"

Living Room:

280 sq/ft width 16' x depth 17' 6"

Master Bathroom:

47 sq/ft width 7' 11" x depth 6'

Master Bedroom:

280 sq/ft width 16' 4" x depth 17' 2"

Master Closet:

14 sq/ft width 2' 1" x depth 6' 9"

Porch - Front:

47 sq/ft width 4' 5" x depth 10' 8"

Porch - Rear:

176 sq/ft width 14' 8" x depth 12'

Powder Room:

23 sq/ft width 3' 5" x depth 7'

Wash Room:

25 sq/ft width 5' x depth 5'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
