PLAN #70-1035

Select Plan Set Options
What's included?
Additional Construction Sets
$50.00/each
Mirror Reversed Sets
$40.00
Subtotal
$960.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Got Questions?
Got Questions?  Just ask!
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #70-1035

Key Specs


2620
sq ft

3
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


With over 2,600 square feet of living space, this craftsman style two-story home will blend effortlessly into any neighborhood. A two-story ceiling greets you as you enter while the wrap around staircase leads you upstairs to the right. An open floor plan includes the kitchen, dining, and great rooms where you'll be able to spread out and entertain family and friends. A screened porch is accessed just off the great room, expanding the living area to include an outside space option. The master suite is located on the right side of the main floor and includes a Jacuzzi tub, dual sinks and a large walk-in closet. Upstairs you'll find two additional bedrooms for the kids, and a loft that overlooks the great room below. Finally, Dad will love the two-stall garage with extra storage in the front for the kids' bikes and all of his power tools.

Floor Plans

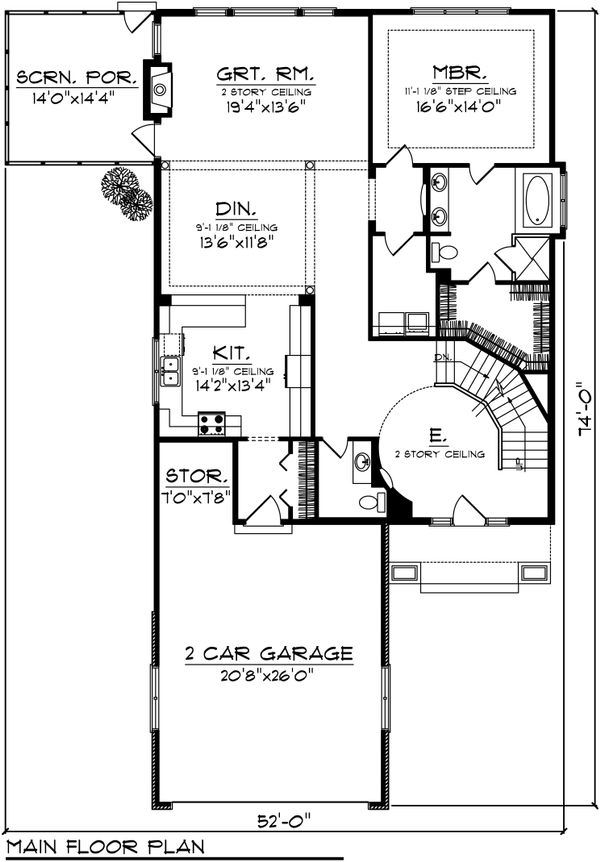

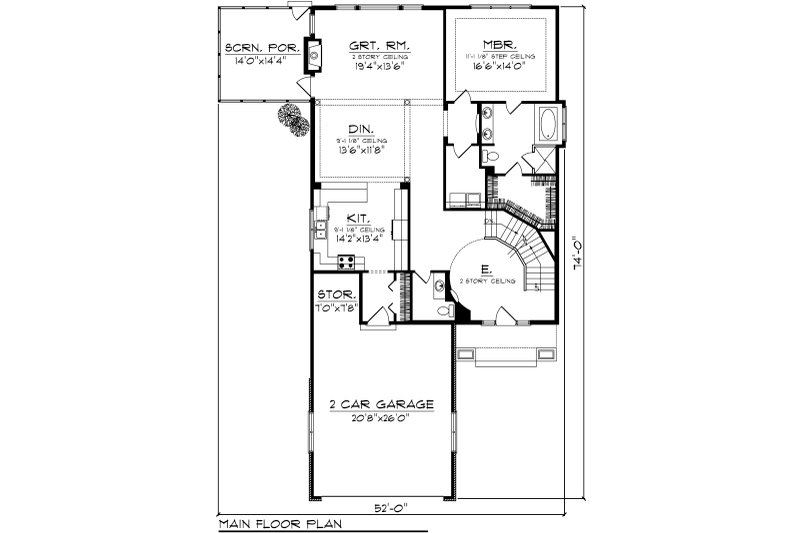

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #70-1035

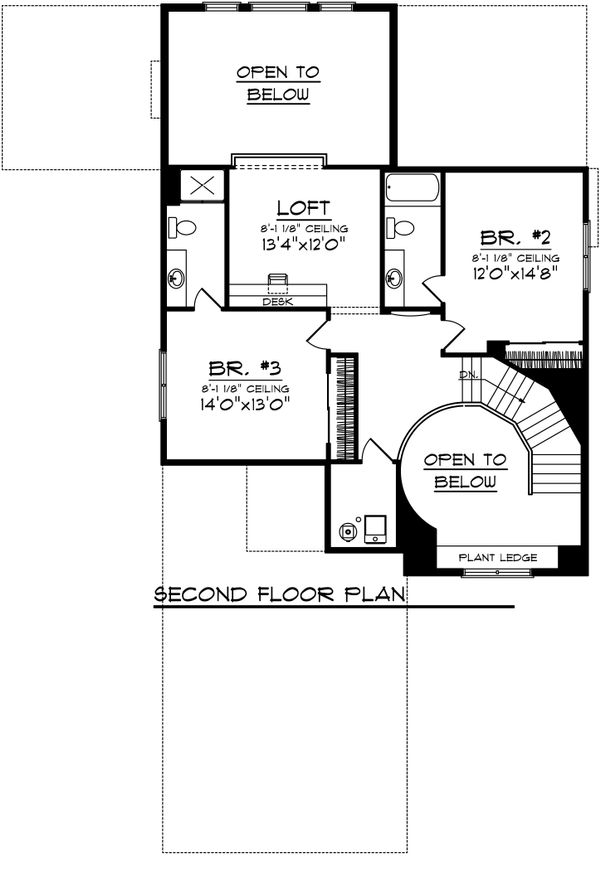

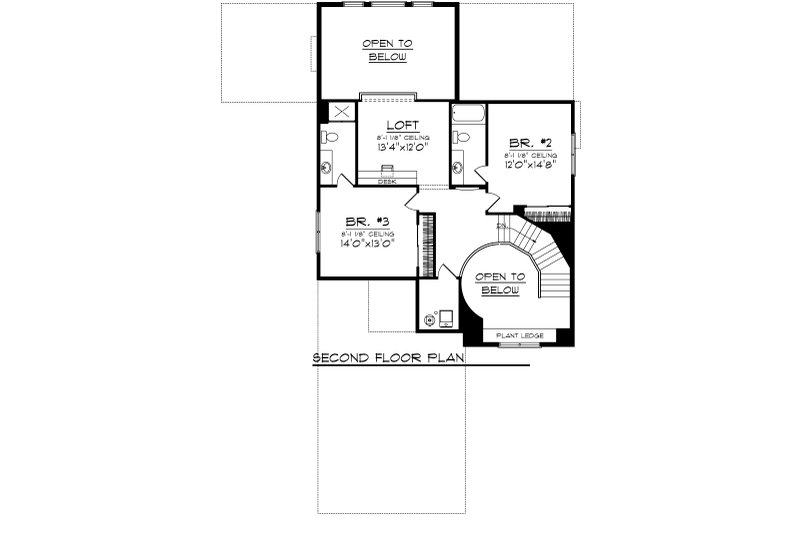

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #70-1035

Full Specs & Features


Dimension Depth : 74'
Height : 30'
Width : 52'
Area Garage : 618 sq/ft
Main Floor : 1714 sq/ft
Upper Floor : 906 sq/ft
Ceiling Ceiling Details : Great Room & Foyer 2 StoryMaster Bedroom 11' Step
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof Roof Framing : Truss
Roof Load : 47
Primary Pitch : 10:12
Secondary Pitch : 7:12
Exterior Wall Framing Insulation : R-19
Exterior Wall Finish : Shake / Stone / Siding
Framing : 2 x 6
Bedroom Features Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features Peninsula Eating Bar
Additional Room Features Great Room Living Room
Main Floor Laundry
Garage Features Front Entry Garage
Lot Characteristics Suited For Narrow Lot
Outdoor Spaces Covered Front Porch
Loft Balcony
Screened Porch Sunroom
